Atmospheric-Pressure Synthesis of Titanium Carbide in an Arc Plasma Reactor

A. A. Gumovskaya; Гумовская А. А.; V. V. Shekhovtsov; Шеховцов В. В.; A. Ya. Pak; Пак А. Я.; R. D. Gerasimov; Герасимов Р. Д.; O. G. Volokitin; Волокитин О. Г.; G. Ya. Mamontov; Мамонтов Г. Я.

doi:10.31857/S0002337X23050044

Atmospheric-Pressure Synthesis of Titanium Carbide in an Arc Plasma Reactor

Authors: Gumovskaya A.A.¹^,2, Shekhovtsov V.V.¹, Pak A.Y.³, Gerasimov R.D.¹^,2, Volokitin O.G.¹, Mamontov G.Y.²
Affiliations:
1. Tomsk State University of Architecture and Civil Engineering
2. National Research Tomsk Polytechnic University
3. Tomsk Polytechnic University
Issue: Vol 59, No 5 (2023)
Pages: 475-480
Section: Articles
URL: https://journal-vniispk.ru/0002-337X/article/view/140146
DOI: https://doi.org/10.31857/S0002337X23050044
EDN: https://elibrary.ru/QFIDHB
ID: 140146

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

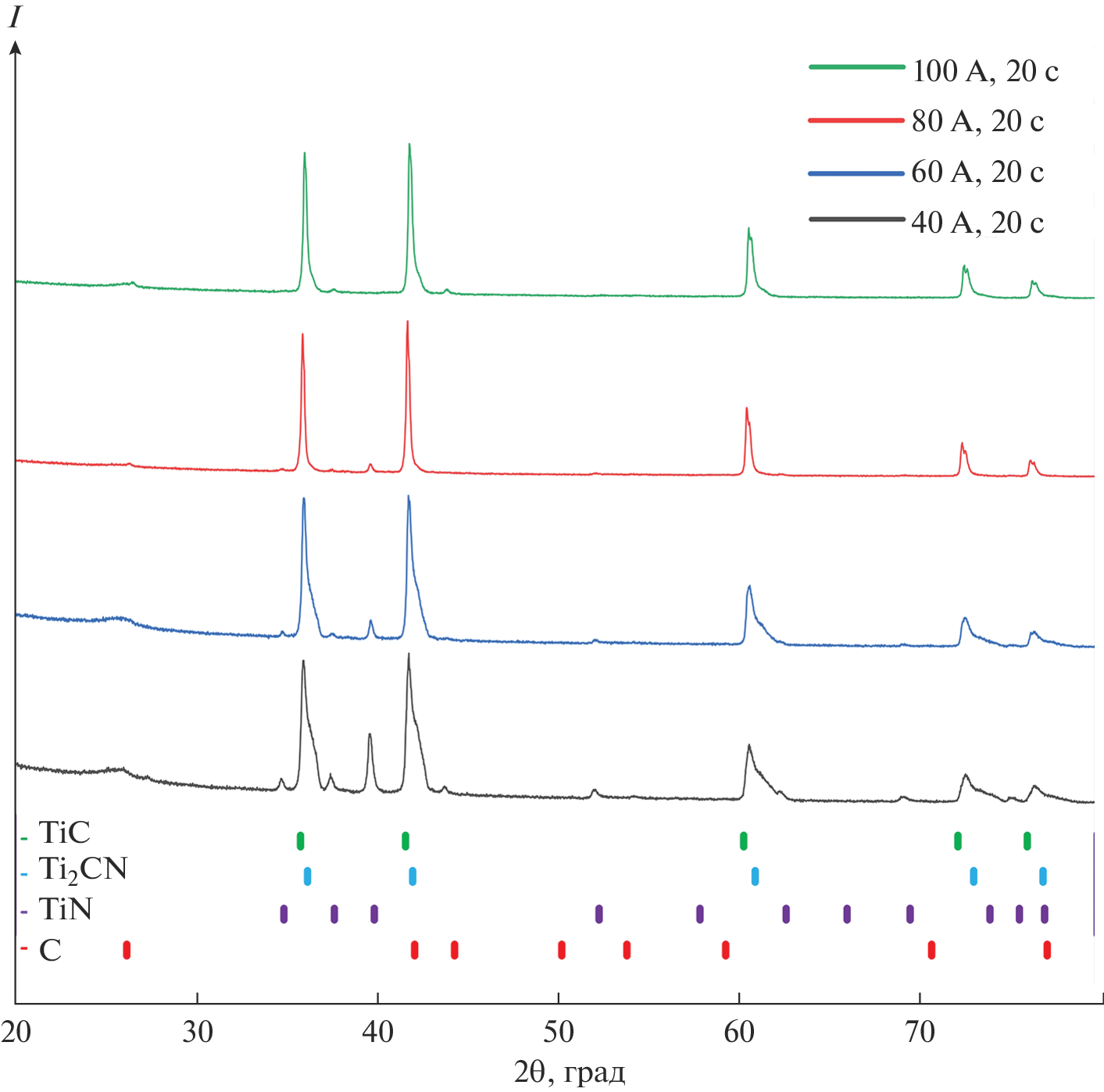

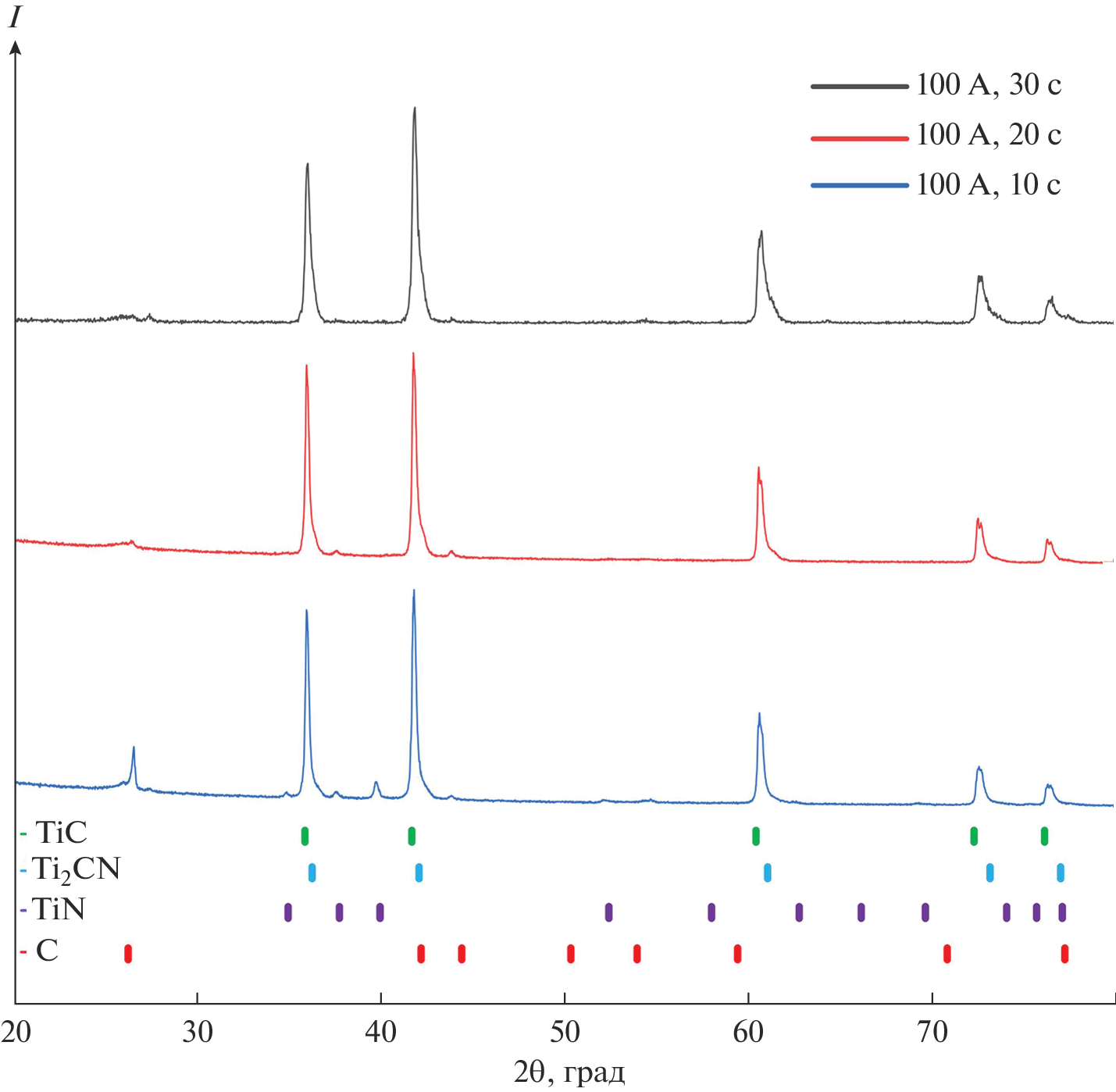

This paper reports on titanium carbide synthesis in an atmospheric-pressure arc plasma reactor by exposing a stoichiometric starting mixture (Ti : C ~ 1 : 1.05) to a plasma jet. The phase composition of the synthesized TiC powder has been determined as a function of the time during which the starting mixture was exposed to a thermal plasma flow and the current (40–120 A) through the electric arc plasma source. The powders obtained under optimal conditions consist of the cubic titanium carbide phase and have a broad particle size distribution, with distinct agglomerates on the order of 50–100 μm in size. It is worth noting that the surface of the agglomerates has the form of a densified perforated crust (with a pore diameter no greater that 2 μm).

Keywords

titanium carbide, plasma reactor, plasma source, vacuum-free process, fine powder

References

Bonis A. De Formation of Titanium Carbide (TiC) and TiC@C Core-Shell Nanostructures by Ultra-Short Laser Ablation of Titanium Carbide and Metallic Titanium in Liquid // J. Colloid Interface Sci. 2017. V. 489. P. 76–84. https://doi.org/10.1016/j.jcis.2016.08.078
Cho D. Synthesis of Titanium Carbide–Carbon Nanofibers via Carbothermal Reduction of Titania with Carbon // Ceram. Int. 2015. V. 41. № 9. P. 10974–10979. https://doi.org/10.1016/j.ceramint.2015.05.041
Dong Q. Functionalized Titanium Carbide as Novel Catalyst Support for Pd Catalyzed Electrochemical Reaction // Int. J. Hydrogen Energy. 2017. V. 42. № 5. P. 3206–3214. https://doi.org/10.1016/j.ijhydene.2016.09.217
Ghidiu M. Conductive Two-Dimensional Titanium Carbide “Clay” with High Volumetric Capacitance // Nature. 2014. V. 516. P. 78–81. https://doi.org/10.1038/nature13970
Ghosh S. Synthesis of Titanium Carbide Nanoparticles by Wire Explosion Process and Its Application in Carbon Dioxide Adsorption // J. Alloys Compd. 2019. V. 794. P. 645–653. https://doi.org/10.1016/j.jallcom.2019.04.299
Gusev A. I. Phase Equilibria, Phases and Compounds in the TiC System // Russ. Chem. Rev. 2002. V. 71. № 6. P. 439–463. https://doi.org/10.1070/RC2002v071n06ABEH000721
Kunkel C. Combining Theory and Experiment for Multitechnique Characterization of Activated CO2 on Transition Metal Carbide (001) Surfaces // J. Phys. Chem. C. 2019. V. 123. № 13. P. 7567–7576. https://doi.org/10.1021/acs.jpcc.7b12227
Lin S. Y., Zhang X. Two-Dimensional Titanium Carbide Electrode with Large Mass Loading for Supercapacitor // J. Power Sources. 2015. V. 294. P. 354–359. https://doi.org/10.1016/j.jpowsour.2015.06.082
Luo Y. A Long Cycle Life Asymmetric Supercapacitor Based on Advanced Nickel-Sulfide/Titanium Carbide (Mxene) Nanohybrid and MXene Electrodes // J. Power Sources. 2020. V. 450. P. 227694. https://doi.org/10.1016/j.jpowsour.2019.227694
Rasaki S. A. Synthesis and Application of Nano-Structured Metal Nitrides and Carbides: A Review // Prog. Solid State Chem. 2018. V. 50. P. 1–15. https://doi.org/10.1016/j.progsolidstchem.2018.05.001
Shekhovtsov V.V., Skripnikova N.K., Volokitin O.G. Phase Transitions in SiO2 Nanopowder Synthesized by Electric Arc Plasma // IEEE Trans. plasma Sci. 2021. V. 49. № 9. https://doi.org/10.1109/TPS.2021.3091138
Syamsai R. Synthesis and Properties of 2D-Titanium Carbide MXene Sheets towards Electrochemical Energy Storage Applications // Ceram. Int. 2017. V. 43. № 16. P. 13119–13126. https://doi.org/10.1016/j.ceramint.2017.07.003
Крылова Т.А. Коррозионная стойкость и износостойкость покрытий, полученных методом вневакуумной электронно-лучевой наплавки тугоплавких карбидов на низкоуглеродистую сталь // Неорган. материалы. 2020. Т. 56. № 3. С. 343–347. https://doi.org/10.31857/S0002337X20030094
Сеплярский Б.С. Фазовый состав и структурa продуктов синтеза карбида титана с никелевой связкой // Неорган. материалы. 2019. Т. 55. № 11. С. 1169–1175. https://doi.org/10.1134/S0002337X19110113
