Ieffect of Ultrasonic Impact Treatment on the Microstructure and Fatigue Life of 3D-Printed Titanium Alloy Ti–6Al–4V
- Authors: Perevalova O.B.1, Panin A.V.1,2, Kazachenok M.S.1, Martynov S.A.1
-
Affiliations:
- Institute of Strength Physics and Materials Science, Siberian Branch, Russian Academy of Sciences
- National Research Polytechnic University
- Issue: Vol 124, No 10 (2023)
- Pages: 1007-1014
- Section: СТРУКТУРА, ФАЗОВЫЕ ПРЕВРАЩЕНИЯ И ДИФФУЗИЯ
- URL: https://journal-vniispk.ru/0015-3230/article/view/232683
- DOI: https://doi.org/10.31857/S0015323023601034
- EDN: https://elibrary.ru/RENAYF
- ID: 232683
Cite item
Open Access
Access granted
Subscription Access
Abstract
Abstract

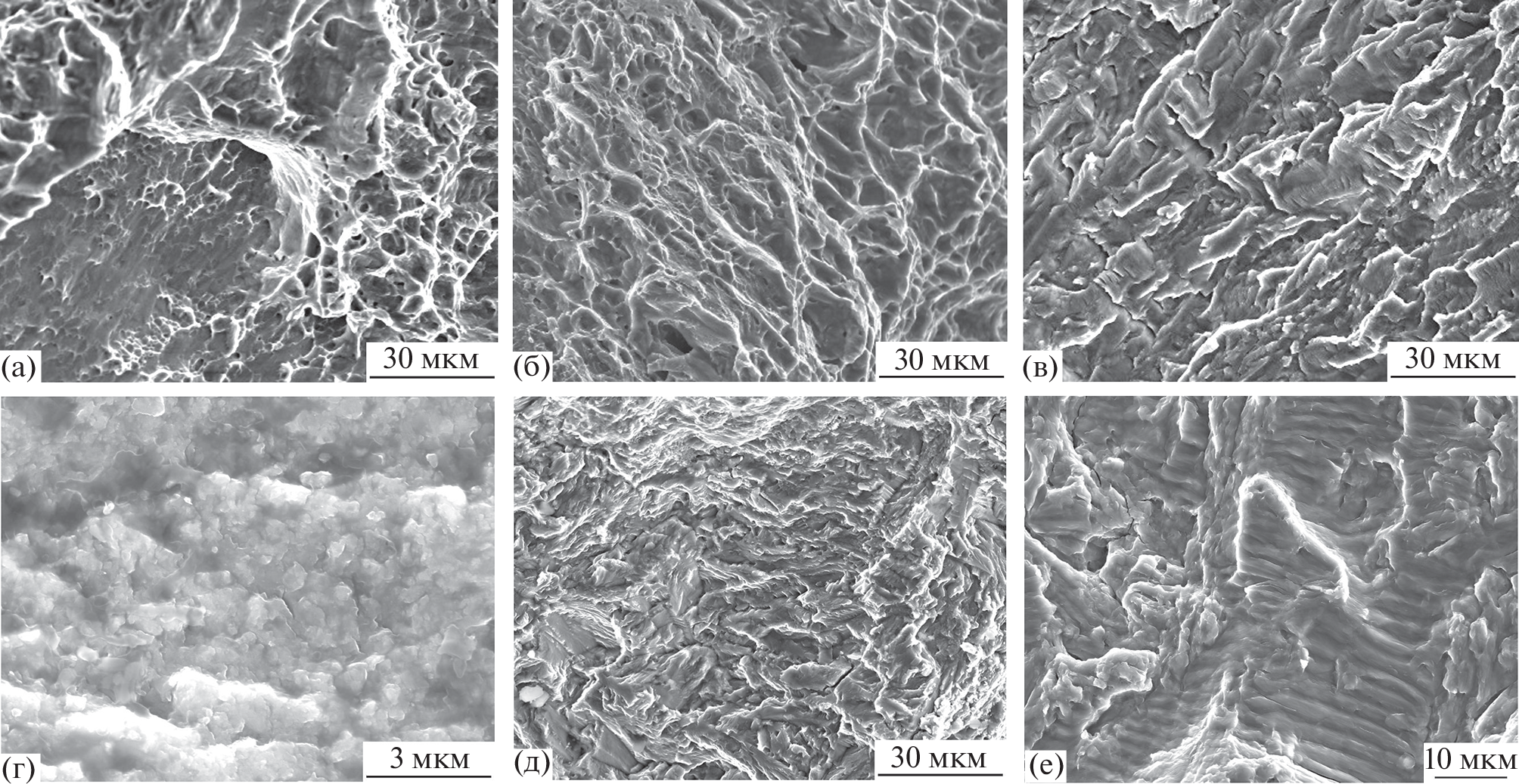

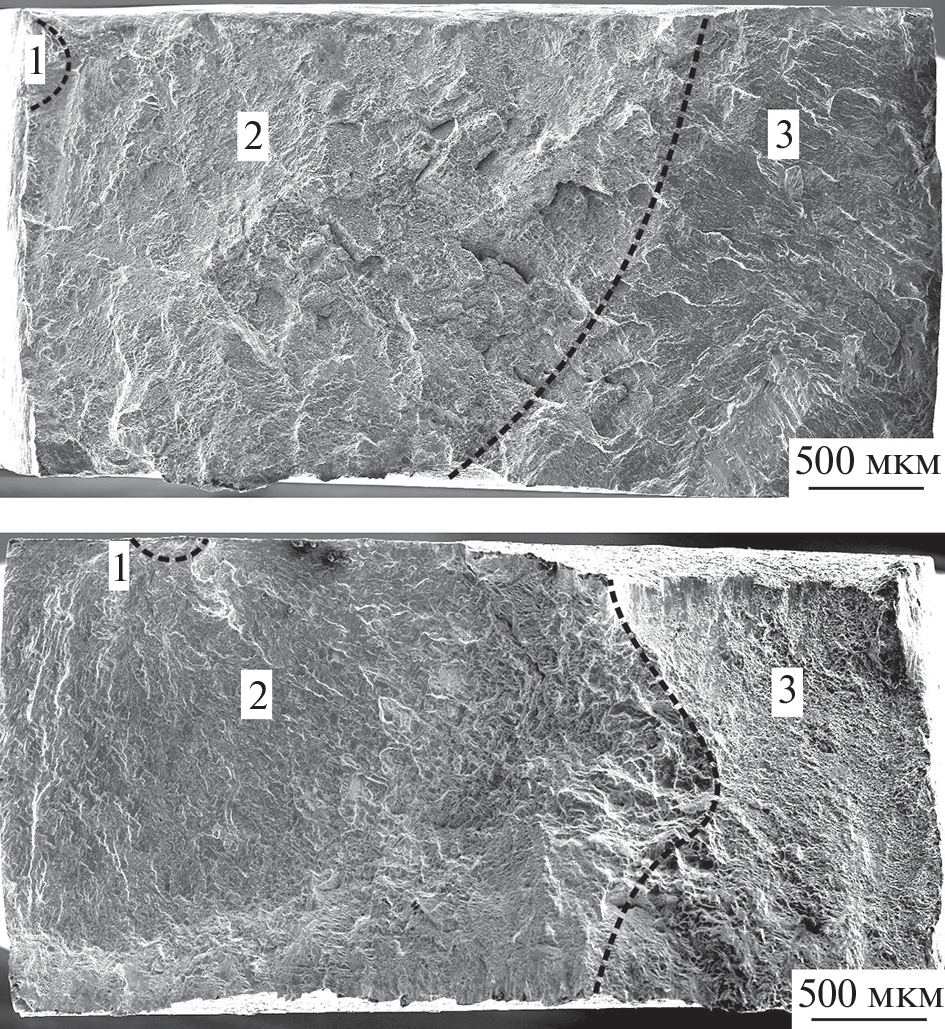

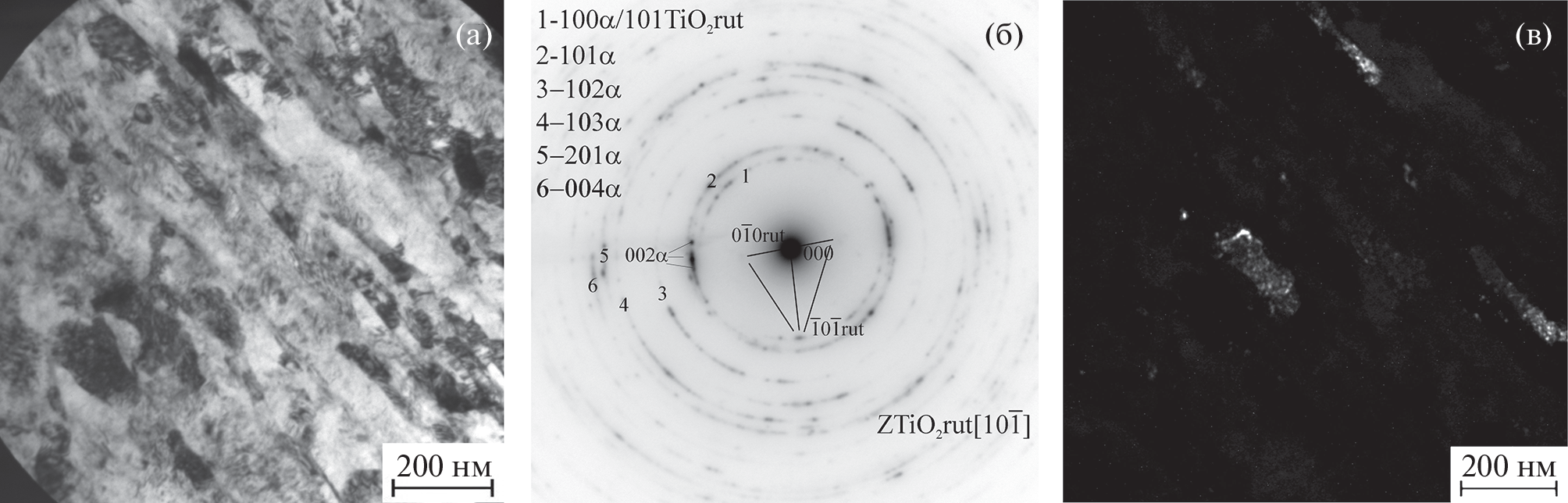

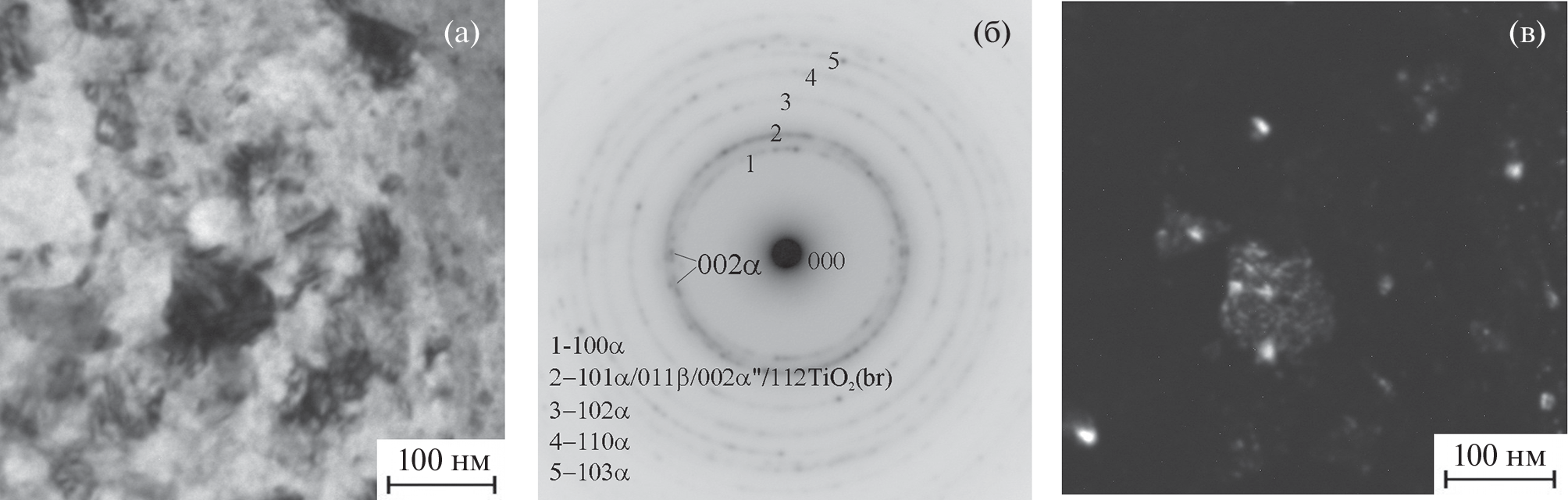

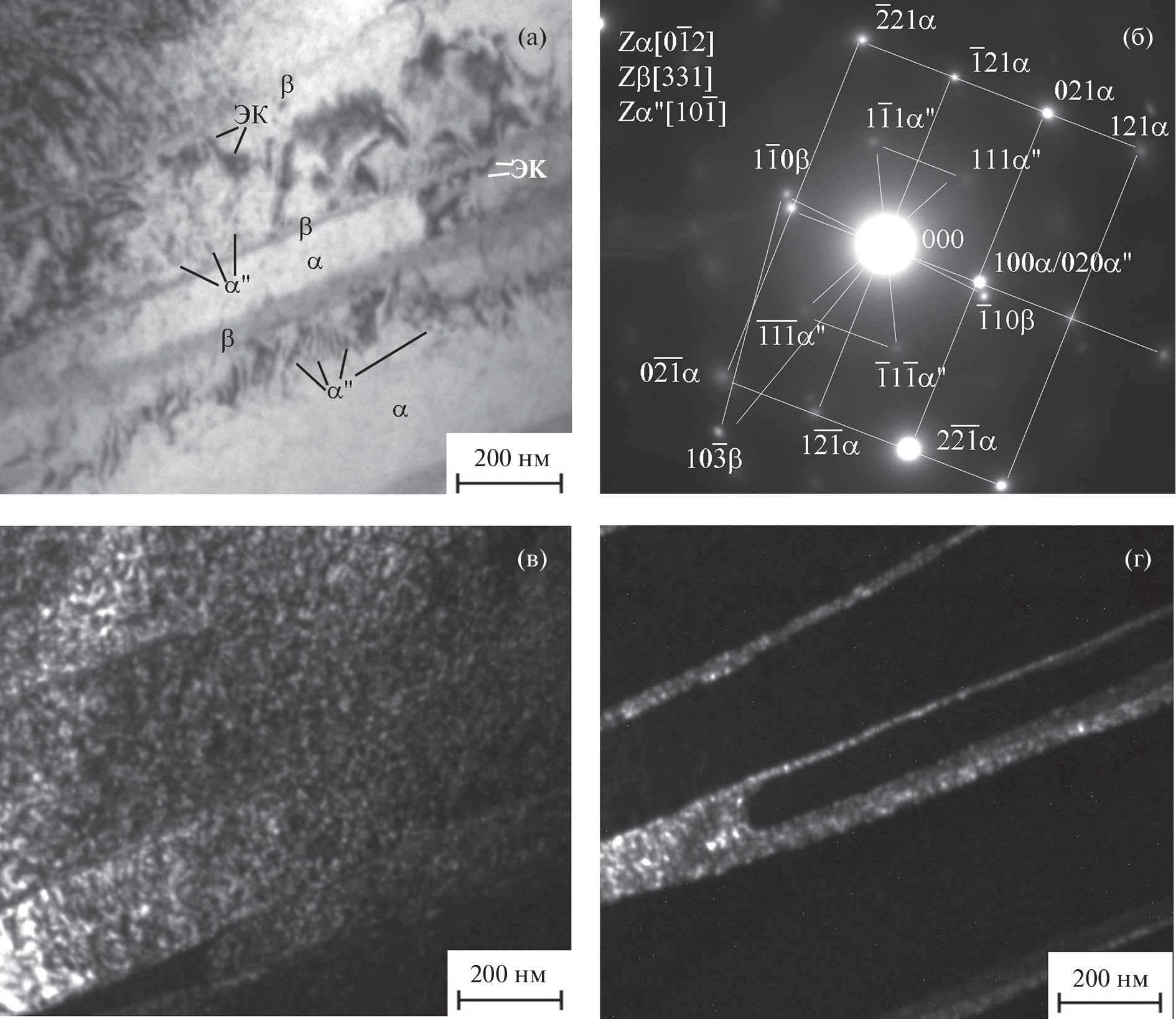

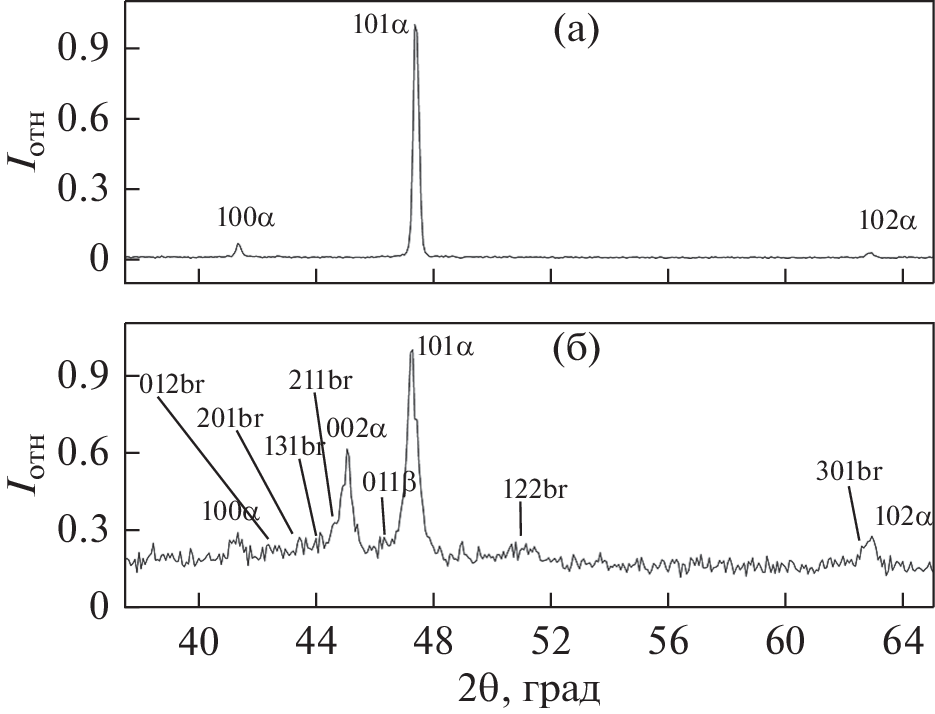

—Using a hard alloy (Co–WC) striker, ultrasonic impact treatment (UTT) of Ti–6Al–4V alloy samples obtained by electron-beam wire additive technology was carried out. Using X-ray diffraction analysis and transmission electron microscopy, it has been shown that UTT leads to the appearance of compressive macrostresses in the surface layers of the sample, elastic microdeformation in the crystal lattice of the alpha-phase, to the formation of a gradient structure from nanocrystalline at a depth of 5 μm to a submicrocrystalline structure of the alpha-phase at a depth from 15 to 40 microns.A nanocrystalline phase of titanium oxides is formed in the grains of the alpha phase. UTT leads to an increase in microhardness and fatigue life. A fractographic analysis of specimen fractures after cyclic tension in the low-cycle fatigue regime has been carried out.
About the authors
O. B. Perevalova
Institute of Strength Physics and Materials Science, Siberian Branch, Russian Academy of Sciences
Author for correspondence.
Email: perevalova52@mail.ru
Russia, 634055, Tomsk
A. V. Panin
Institute of Strength Physics and Materials Science, Siberian Branch, Russian Academy of Sciences; National Research Polytechnic University
Email: perevalova52@mail.ru
Russia, 634055, Tomsk; Russia, 634050, Tomsk
M. S. Kazachenok
Institute of Strength Physics and Materials Science, Siberian Branch, Russian Academy of Sciences
Email: perevalova52@mail.ru
Russia, 634055, Tomsk
S. A. Martynov
Institute of Strength Physics and Materials Science, Siberian Branch, Russian Academy of Sciences
Email: perevalova52@mail.ru
Russia, 634055, Tomsk
References
- Tshephe T.S., Akinwamide S.O., Olevsky E., Olubambi P.A. Additive manufacturing of titanium-based alloys-A review of methods, properties, challenges, and prospects // Heliyon. 2022. V. 8. P. e09041.
- Liu Zh., He B., Lyu T., Zou Yu. A review on additive manufacturing of titanium alloys for aerospace applications: directed energy deposition and beyond Ti–6Al–4V // JOM. 2021. V. 73. No 6. P. 1804–1818.
- Zhan Y., Liu C., Zhang J., Mo G., Liu C. Measurement of residual stress in laser additive manufacturing TC4 titanium alloy with the laser ultrasonic technique // Mater. Sci. Eng. A. 2019. V. 762. P. 138093.
- Chi J., Cai Zh., Wan Z., Zhang H., Chen Z., Li L., Li Y., Peng P., Guo N. Effects of heat treatment combined with laser shock peening on wire and arc additive manufactured Ti17 titanium alloy: microstructures, residual stress and mechanical properties // Surface. Coatings Tech. 2020. V. 396. P. 125908.
- Lin Z., Song K., Yu X. A review on wire and arc additive manufacturing of titanium alloy // J. Manufacturing Processes. 2021. V. 70. P. 24–45.
- Ao N., Liu D., Zhang X., Wu Sh. Improved fretting fatigue mechanism of surface strengthened Ti–6Al–4V alloy induced by ultrasonic surface rolling process // Intern. J. Fatigue. 2023. V. 170. P. 107567.
- Luo X., Ren X., Jin Q., Qu H., Hou H. Microstructural evolution and surface integrity of ultrasonic surface rolling in Ti6Al4V alloy // J. Materials Research and Technology. 2021. V. 13. P. 1586–1598.
- Ультразвуковая обработка конструкционных материалов / Под ред. А.В. Панина. Томск: Издательский дом ТГУ, 2016. 172 с.
- Перевалова О.Б., Панин А.В., Казаченок М.С., Синякова Е.А. Влияние ультразвуковой ударной обработки на структурно-фазовые превращения в титановом сплаве Ti–6Al–4V // Физич. мезомеханика. 2022. Т. 25. № 1. С. 66–77.
- Шанявский А.А., Никитин А.Д., Солдатенков А.П. Сверхмногоцикловая усталость металлов. Синергетика и физическая мезомеханика. М.: Изд-во физ.-мат. литературы, 2022. 496 с.
- Panin A.V., Kazachenok M.S., Dmitriev A.I., Nikonov A.Y., Perevalova O.B., Kazantseva L.A., Sinyakova E.A., Martynov S.A. The effect of ultrasonic impact treatment on deformation and fracture of electron beam additive manufactured Ti–6Al–4V under uniaxial tension // Mater. Sci. Eng. A. 2022. V. 832. P. 142458.
- Panin A., Kazachenok M., Perevalova O., Martynov S., Panina A., Sklyarova E. Continuous Electron Beam Post-Treatment of EBF3-Fabricated Ti–6Al–4V Parts // Metals. 2019. V. 9. № 6. P. 699–715.
- Горелик C.С., Расторгуев Л.Н., Скаков Ю.А. Рентгенографический и электронно-оптический анализ. М.: Металлургия, 1970. 328 c.
- Перевалова О.Б., Панин А.В., Казаченок М.С. Влияние охлаждения подложки на микроструктуру и фазовый состав изделий из титанового сплава Ti–6Al–4V, полученных методами аддитивных технологий // Журн. технической физики. 2020. Т. 90. Вып. 3. С. 410–418.
- Panin A., Martynov S., Kazachenok M., Kazantseva L., Bakulin A., Kulkova S., Perevalova O., Sklyarova E. Effects of water cooling on the microstructure of electron beam additive-manufacted Ti–6Al–4V // Metals. 2021. V. 11. № 11. P. 111742.
- Прядко Т.В. Особенности гидрирования сплавов системы Ti–V // Металлофизика. Новейшие технологии. 2015. Т. 37. № 2. С. 243–255.
Supplementary files
