Structural Study of the Light-Harvesting Complex LH2 from the Purple Sulfur Bacteria Ectothiorhodospira haloalkaliphila by Cryoelectronic Microscopy

A. D. Burtseva; Бурцева А. Д.; T. N. Baymukhametov; Баймухаметов Т. Н.; I. O. Ilyasov; Илясов И. О.; M. A. Bolshakov; Большаков М. А.; A. A. Moskalenko; Москаленко А. А.; K. M. Boyko; Бойко К. М.; A. A. Ashikhmin; Ашихмин А. А.

doi:10.31857/S0023476123600829

Structural Study of the Light-Harvesting Complex LH2 from the Purple Sulfur Bacteria Ectothiorhodospira haloalkaliphila by Cryoelectronic Microscopy

Authors: Burtseva A.D.¹, Baymukhametov T.N.², Ilyasov I.O.¹, Bolshakov M.A.³, Moskalenko A.A.³, Boyko K.M.¹, Ashikhmin A.A.³
Affiliations:
1. Bach Institute of Biochemistry, Federal Research Center “Fundamentals of Biotechnology” of the Russian Academy of Sciences, 117071, Moscow, Russia
2. National Research Centre “Kurchatov Institute”, 123182, Moscow, Russia
3. Institute of Basic Biological Problems, Russian Academy of Sciences, Federal Research Center “Pushchino Scientific Center for Biological Research” of the Russian Academy of Sciences, Pushchino, Russia
Issue: Vol 68, No 6 (2023)
Pages: 881-887
Section: STRUCTURE OF MACROMOLECULAR COMPOUNDS
URL: https://journal-vniispk.ru/0023-4761/article/view/231813
DOI: https://doi.org/10.31857/S0023476123600829
EDN: https://elibrary.ru/GBGIUU
ID: 231813

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

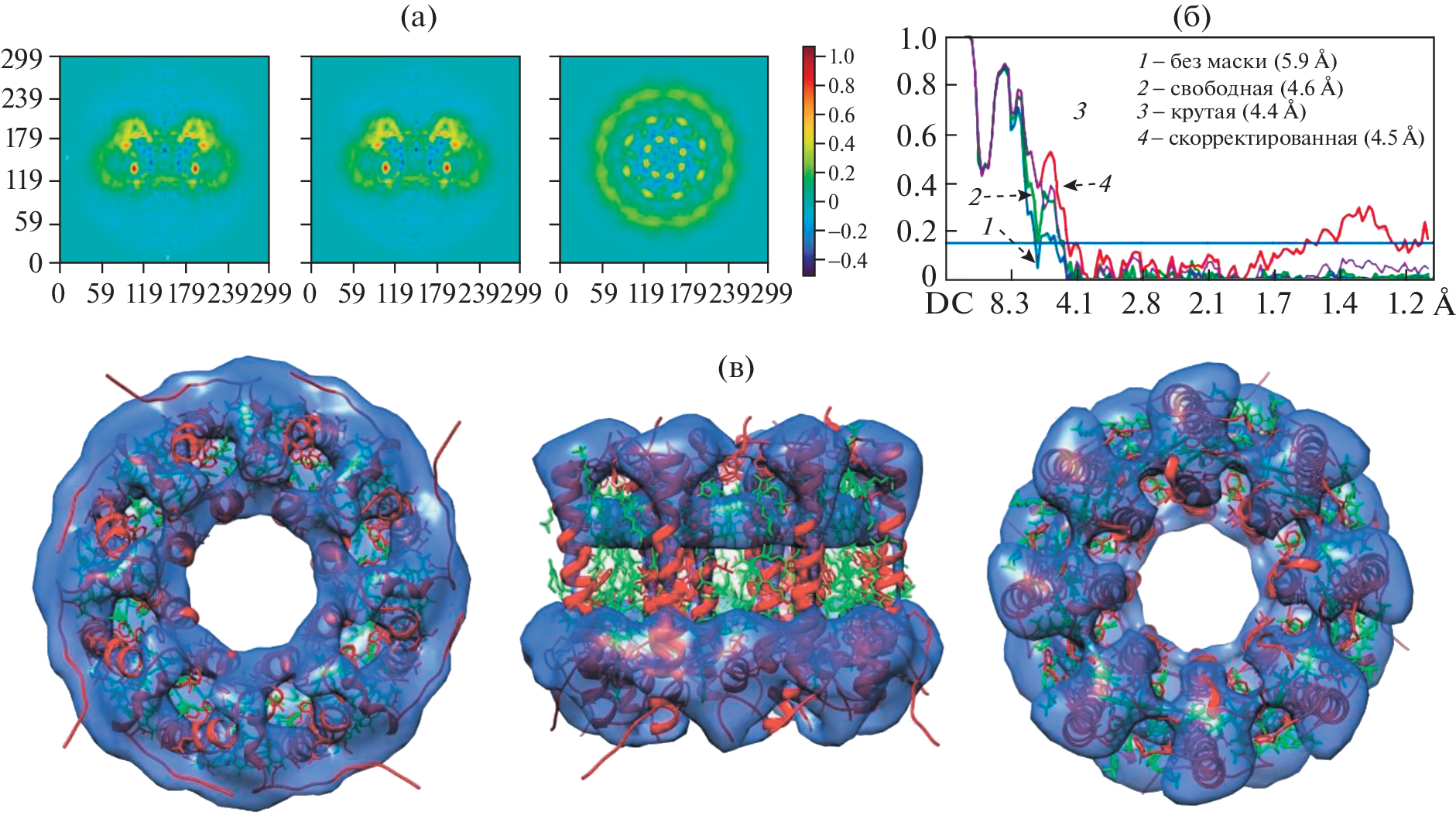

The primary processes of photosynthesis for purple photosynthesising bacteria occur in light-harvesting (LH) complexes. The LH2 complex contains polypeptides; bacteriochlorophyll; and, in most cases, carotenoids. There are three known spatial structures of LH2 complexes from purple nonsulfur bacteria; however, high-resolution structures have not been established for purple sulfur bacteria. The results of the structural study of two light-harvesting complexes LH2 from purple sulfur bacteria Ectothiorhodospira haloalkaliphila by cryoelectronic microscopy are reported. Images of carotenoid-containing (LH2+) and carotenoidless (LH2–) variants of the complex, demonstrating a characteristic architecture of the objects of this type, are obtained. A 3D reconstruction of LH2+ is performed with a resolution of 4.5 Å; it coincides with the previously established crystal structure. The presence of particles of different morphology is shown for LH2–.

References

McDermott G. et al. // Nature. 1995. V. 374. P. 517. https://doi.org/10.1038/374517a0
Zuber H., Cogdell R.J. // Anoxygenic Photosynthetic Bacteria. Dordrecht: Kluwer Academic Publishers, 2004. V. 2. P. 315. https://doi.org/10.1007/0-306-47954-0_16
Bahatyrova S. et al. // Nature. 2004. V. 430. P. 1058. https://doi.org/10.1038/nature02823
Cogdell R.J. et al. // Quart. Rev. Biophys. 2006. V. 39. P. 227. https://doi.org/10.1017/S0033583506004434
Gabrielsen M. et al. // The Purple Phototrophic Bacteria. Dordrecht: Springer Netherlands, 2009. V. 28. P. 135. https://doi.org/10.1007/978-1-4020-8815-5_8
Moskalenko A.A., Karapetyan N.V. // Z. Naturforsch. C. 1996. B. 51. S. 763. https://doi.org/10.1515/znc-1996-11-1201
Scheer H. // Chlorophylls and Bacteriochlorophylls. Dordrecht: Springer Netherlands, 2006. V. 25. P. 1–26. https://doi.org/10.1007/1-4020-4516-6_1
Polyakov N.E., Leshina T.V. // Russ. Chem. Rev. 2006. V. 75. P. 1049. https://doi.org/10.1070/RC2006v075n12ABEH003640
Theiss C. et al. // Biophys. J. 2008. V. 94. P. 4808. https://doi.org/10.1529/biophysj.107.121681
Telfer A. et al. // Carotenoids. Basel: Birkhäuser Basel, 2008. V. 4. P. 265. https://doi.org/10.1007/978-3-7643-7499-0_14
Frank H.A., Polívka T. // The Purple Phototrophic Bacteria. Dordrecht: Springer Netherlands, 2009. V. 28. P. 213. https://doi.org/10.1007/978-1-4020-8815-5_12
Koepke J. et al. // Structure. 1996. V. 4. P. 581. https://doi.org/10.1016/S0969-2126(96)00063-9
Papiz M.Z. et al. // J. Mol. Biol. 2003. V. 326. P. 1523. https://doi.org/10.1016/S0022-2836(03)00024-X
Leiger K. et al. // J. Phys. Chem. B. 2019. V. 123. P. 29. https://doi.org/10.1021/acs.jpcb.8b08083
Ашихмин А.А. и др. // Докл. РАН. 2013. Т. 453. С. 563. https://doi.org/10.7868/S0869565213350235
Ashikhmin A. et al. // Photosynth. Res. 2014. V. 119. P. 291. https://doi.org/10.1007/s11120-013-9947-6
Imhoff J.F. // Anoxygenic phototrophic bacteria, in: B. Austin (Ed.), Methods in Aquatic Bacteriology. Chichester: Wiley, 1988. 1988. P. 425. https://doi.org/10.1017/S0025315400043393
Punjani A. et al. // Nat Methods. 2017. V. 14. P. 290. https://doi.org/10.1038/nmeth.4169
Zheng S.Q. et al. // Nat Methods. 2017. V. 14. P. 331. https://doi.org/10.1038/nmeth.4193
Punjani A. et al. // Nat Methods. 2020. V. 17. P. 1214. https://doi.org/10.1038/s41592-020-00990-8
Pettersen E.F. et al. // J. Comput. Chem. 2004. V. 25. P. 1605. https://doi.org/10.1002/jcc.20084
Gardiner A.T. et al. // Sci. Adv. 2021. V. 7. P. eabe4650. https://doi.org/10.1126/sciadv.abe4650
