Distribution and Variations of Elemental Sulfur in the Upper Part of the Black Sea Anoxic Water Column

封面

如何引用文章

全文:

开放存取 开放存取
受限制的访问 ##reader.subscriptionAccessGranted##
受限制的访问 订阅存取

详细

Elemental sulfur and its derivatives polysulfides play a key role in the processes of hydrogen sulfide oxidation in anoxic basins. Having low solubility, elemental sulfur is mainly represented by suspended forms. However, in sulfide waters it forms highly soluble polysulfides. This work is devoted to the study of elemental sulfur and polysulfides in the upper part of the Black Sea anoxic zone in 2017–2019 and 2022 at stations located on the continental shelf off the coast of the Caucasus and Crimea. Sampling, filtering and determination of sulfur were carried out under strictly anaerobic conditions in an argon atmosphere.

The concentration of elemental sulfur (together with polysulfides) increases with depth and with an increase in the content of hydrogen sulfide from 0.01 in the area of the redox interface to 0.67 µmol/kg at a depth of 600 m. The fraction of elemental sulfur in the composition of ZVS is 23 ± 5%. The calculation of the polysulfides concentration in equilibrium with suspended sulfur based on thermodynamic data shows that deeper than 20–25 m of the upper boundary of the anoxic zone, their concentration was higher than ZVS and at a depth of 600 m they differed by about 3 times. The predominance of elemental sulfur over sulfide sulfur in the composition of polysulfides in the anoxic zone at depths of 450 and 600 m can be the reason for the fractionation of its isotopic composition by +2.2‰ relative to the sulfur of dissolved sulfide (-41.0‰ VCDT).

全文:

受限制的访问

作者简介

A. Dubinin

Shirshov Institute of Oceanology, Russian Academy of Sciences

编辑信件的主要联系方式.
Email: dubinin@ocean.ru
俄罗斯联邦, Moscow

T. Demidova

Shirshov Institute of Oceanology, Russian Academy of Sciences

Email: dubinin@ocean.ru
俄罗斯联邦, Moscow

O. Ocherednik

Southern Branch of the Shirshov Institute of Oceanology, Russian Academy of Sciences

Email: dubinin@ocean.ru
俄罗斯联邦, Gelendzhik

L. Semilova

Shirshov Institute of Oceanology, Russian Academy of Sciences

Email: dubinin@ocean.ru
俄罗斯联邦, Moscow

M. Rimskaya-Korsakova

Shirshov Institute of Oceanology, Russian Academy of Sciences

Email: dubinin@ocean.ru
俄罗斯联邦, Moscow

E. Berezhnaya

Shirshov Institute of Oceanology, Russian Academy of Sciences

Email: dubinin@ocean.ru
俄罗斯联邦, Moscow

E. Zologina

Shirshov Institute of Oceanology, Russian Academy of Sciences

Email: dubinin@ocean.ru
俄罗斯联邦, Moscow

参考

  1. Дубинин А.В., Демидова Т.П., Кременецкий В.В. и др. Определение восстановленных форм серы в анаэробной зоне Черного моря: сравнение методов спектрофотометрии и иодометрии // Океанология. 2012. Т. 52. № 2. С. 200–209.
  2. Дубинин А.В., Демидова Т.П., Римская-Корсакова М.Н. и др. Определение восстановленных форм серы в воде анаэробных бассейнов // Морской гидрофизический журнал. 2019. Т. 35. № 1. C. 37–51. https://doi.org/10.22449/0233-7584-2019-1-37-51
  3. Дубинин А.В., Демидова Т.П., Семилова Л.С. и др. Элементная сера и ее изотопный состав в воде Черного моря // Доклады РАН. Науки о Земле. 2023. Т. 511. № 1. С. 24–30. https://doi.org/10.31857/S2686739723600480
  4. Дубинин А.В., Дубинина Е.О. Изотопный состав кислорода и водорода вод Черного моря как отражение динамики водных масс // Океанология. 2014. № 6. С. 763–780.
  5. Попов Н.И., Федоров К.Н., Орлов В.М. Морская вода (справочное руководство). М: Наука, 1979. 327 с.
  6. Якушев Е.В., Виноградова Е.Л., Дубинин А.В. и др. Об определении низких концентраций кислорода методом Винклера // Океанология. 2012. № 1. С. 131–138.
  7. Amrani A., Kamyshny A., Lev O. et al. Sulfur Stable Isotope Distribution of Polysulfide Anions in an (NH4)2Sn Aqueous Solution // Inorg. Chem. 2006. V. 45. P. 1427–1429. https://doi.org/10.1021/ic051748r
  8. Avetisyan K., Kamyshny Jr. A. Thermodynamic constants of formation of disulfide anion in aqueous solutions // Geochim. Cosmochim. Acta. 2022. V. 325. P. 205–213. https://doi.org/10.1016/j.gca.2022.02.03
  9. Avetisyan K., Zweig I., Luther G.W. et al. Kinetics and mechanism of polysulfides and elemental sulfur formation by a reaction between hydrogen sulfide and δ-MnO2 // Geochim. Cosmochim. Acta. 2021. V. 313. P. 21–37. https://doi.org/10.1016/j.gca.2021.08.022
  10. Canfield D.E. Biogeochemistry of sulfur isotopes // In: Valley J.W., Cole D.R. (Eds.). Stable isotope geochemistry. Berlin, Boston: De Gruyter, 2001. P.607-636.
  11. Dubinin A.V., Demidova T.P., Dubinina E.O. et al. Sinking particles in the Black Sea Waters: Vertical Fluxes of Elements and Pyrite to the Bottom, Isotopic Composition of Pyrite Sulfur, and Hydrogen Sulfide Production // Chemical Geology. 2022. P. 606. https://doi.org/10.1016/j.chemgeo.2022.120996
  12. Findlay A.J., Gartman A., MacDonald D. J. et al . Distribution and size fractionation of elemental sulfur in aqueous environments: The Chesapeake Bay and Mid-Atlantic Ridge // Geochim. Cosmochim. Acta. 2014. V. 142. P. 334–348. http://dx.doi.org/10.1016/j.gca.2014.07.032
  13. Gröger J., Franke J., Hamer K. et al. Quantitative Recovery of Elemental Sulfur and Improved Selectivity in a Chromium-Reducible Sulfur Distillation // Geostandards and Geoanalytical Research. 2009. V. 33. № 1. P. 17–27.
  14. Helz G. Activity of zero-valent sulfur in sulfidic natural waters // Geochem Trans. 2014. V. 15. P. 38–58.
  15. Henkel J.V., Dellwig O., Pollehne F. et al. A bacterial isolate from the Black Sea oxidizes sulfide with manganese (IV) oxide // Proceedings of the National Academy of Sciences (PNAS). 2019. V. 116. № 25. P. 12153–12155.
  16. Jørgensen B.B., Fossing H., Wirsen C.O. et al. Sulfide oxidation in the anoxic Black Sea chemocline // Deep Sea Research Part A. Oceanographic Research Papers, Black Sea Oceanography: Results from the 1988 Black Sea Expedition 38, 1991. P. S1083–S1103.
  17. Kaiser D., Konovalov S., Schulz-Bull D.E. et al. Organic matter along longitudinal and vertical gradients in the Black Sea // Deep Sea Research Part I: Oceanographic Research Papers. 2017. V. 129. P. 22–31. https://doi.org/10.1016/j.dsr.2017.09.006
  18. Kamyshny Jr A. Solubility of cyclooctasulfur in pure water and sea water at different temperatures // Geochim. Cosmochim. Acta. 2009. V. 73. P. 6022–6028.
  19. Kamyshny Jr A., Gun J., Rizkov D. et al. Equilibrium distribution of polysulfide ions in aqueous solutions at different temperatures by rapid single-phase derivatization // Environ. Sci. Technol. 2007. V. 41. P. 2395–2400.
  20. Kamyshny Jr A., Zilberbrand M., Elkeltchik I. et al. Speciation of polysulfides and zerovalent sulfur in sulfide-rich water wells in southern and central Israel // Aquatic Geochem. 2008. V. 14. P. 171–192.
  21. Konovalov S.K., Luther G.I.W., Friederich G.E. et al. Lateral injection of oxygen with the Bosporus plume—fingers of oxidizing potential in the Black Sea // Limnology and Oceanography. 2003. V. 48. P. 2369–2376. https://doi.org/10.4319/lo.2003.48.6.2369
  22. Li X., Cutter G.A., Thunell R.C. et al. Particulate sulfur species in the water column of the Cariaco Basin // Geochim. Cosmochim. Acta. 2011. V. 75. P. 148–163. https://doi.org/10.1016/j.gca.2010.09.039
  23. Luther III G.W., Church T.M., Powell D. Sulfur speciation and sulfide oxidation in the water column of the Black Sea // Deep Sea Research Part A. Oceanographic Research Papers, Black Sea Oceanography: Results from the 1988 Black Sea Expedition. 1991. V. 38. P. S1121–S1137. https://doi.org/10.1016/S0198-0149(10)80027-5
  24. Marschall E., Jogler M., Henßge U. et al. Large-scale distribution and activity patterns of an extremely low-light-adapted population of green sulfur bacteria in the Black Sea // Environmental Microbiology. 2010. V. 12. N. 5. P. 1348–1362.
  25. Volkov I.I., Neretin L.N. Hydrogen Sulfide in the Black Sea // In: Kostianoy A.G., Kosarev A.N. (Eds.). The Black Sea Environment, The Handbook of Environmental Chemistry. Berlin, Heidelberg: Springer, 2008. P. 309–331. https://doi.org/10.1007/698_5_083
  26. Zerkle A.L., Farquar J., Johnston D.T. et al. Fractionation of multiple sulfur isotopes during phototrophic oxidation of sulfide and elemental sulfur by a green sulfur bacterium // Geochim. Cosmochim. Acta. 2009. V. 73. P. 291–306.
  27. Zopfi J., Ferdelman T.G., Fossing H. Distribution and fate of sulfur intermediates — sulfite, tetrathionate, thiosulfate, and elemental sulfur — in marine sediments // In: Amend J.P. et al (Eds.) Sulfur biogeochemistry—Past and present. Geological Society of America Special Paper. Boulder, Colorado. 2004. V. 379. P. 97–116.

补充文件

附件文件
动作
1. JATS XML

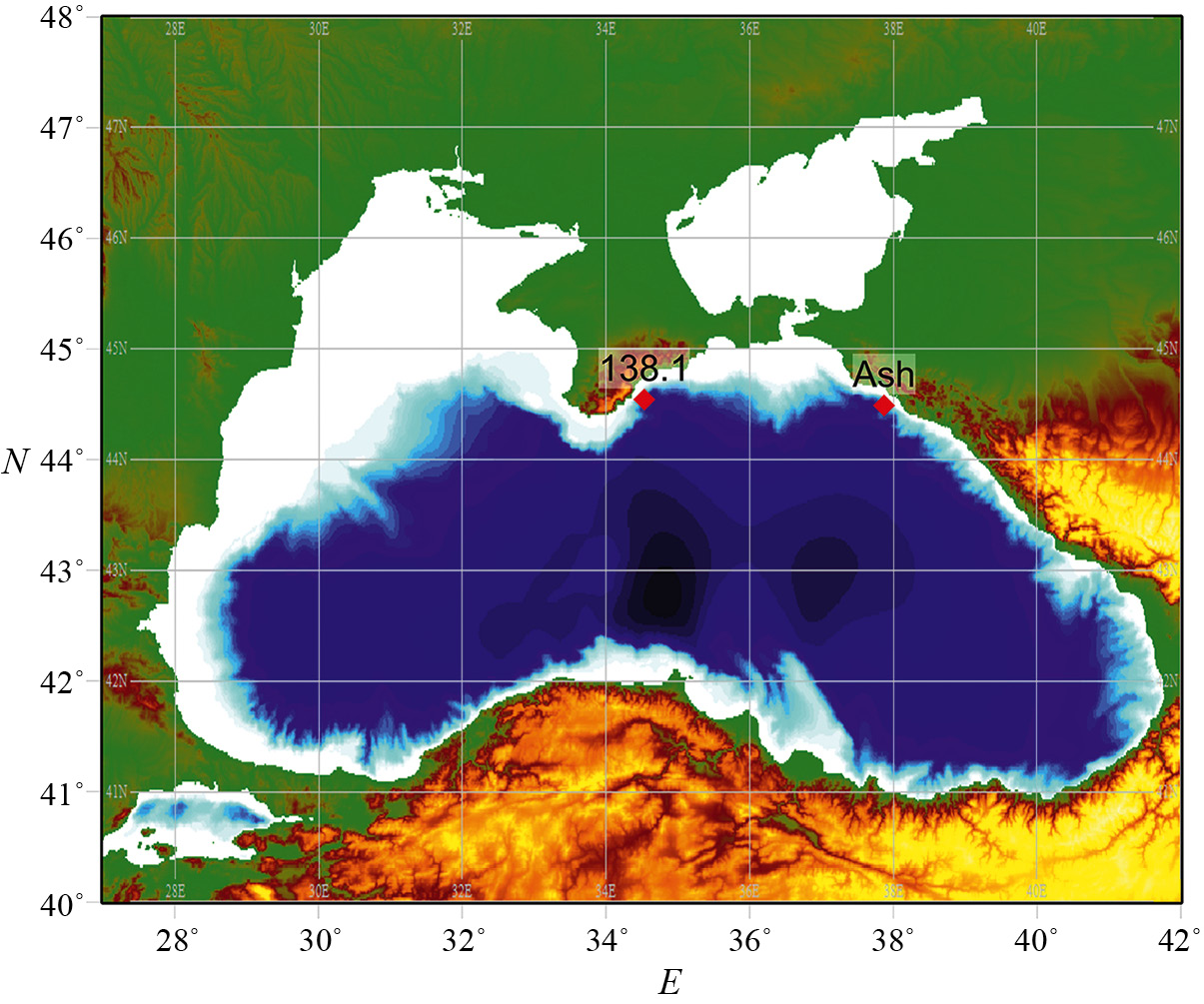

2. Fig. 1. Locations of stations Ash (44.489°N, 37.870°E) and 138.1 (44.543°N, 34.533°E)

下载 (326KB)

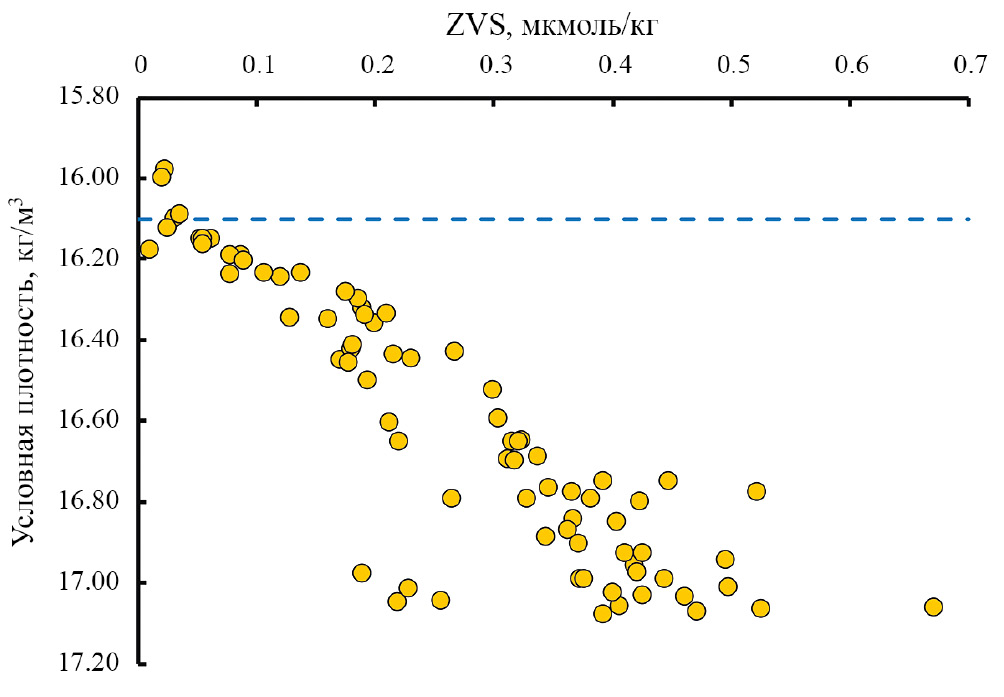

3. Fig. 2. Variation of zero-charge sulphur concentrations in the Black Sea water depending on the conditional density at Ash stations in 2017-2019. The dotted line shows the upper boundary of the anaerobic zone (conditional density 16.10 kg/m3)

下载 (95KB)

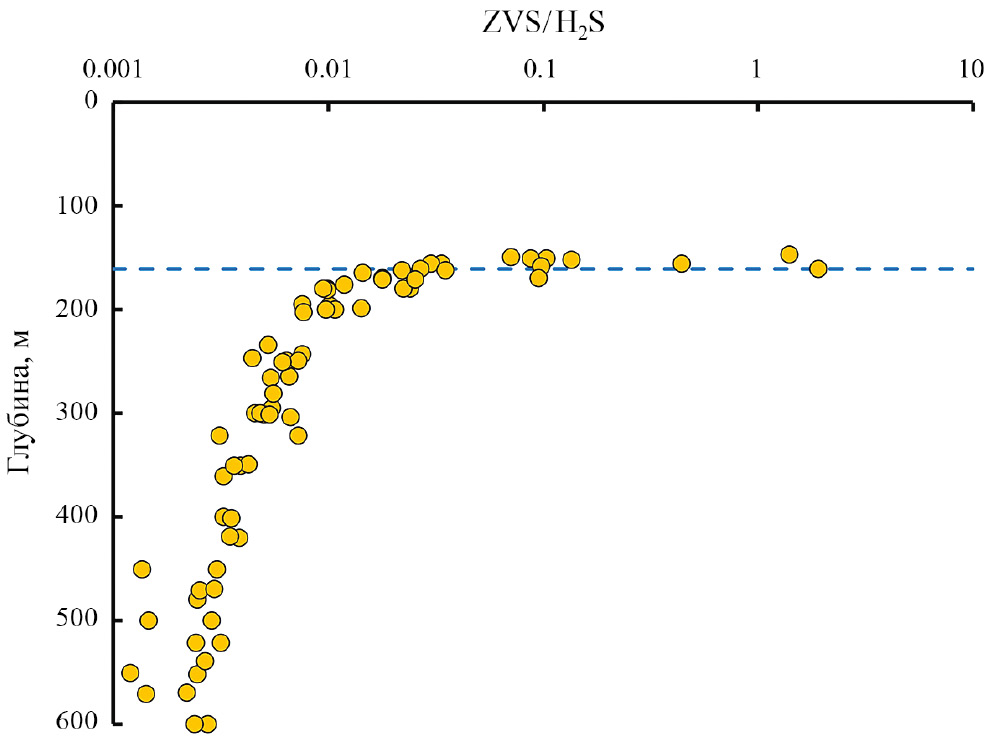

4. Fig. 3. Variation of ZVS/H2S in the water column of the Black Sea anaerobic zone at Ash stations. The dotted line shows the upper boundary of the anaerobic zone (average 160 m)

下载 (76KB)

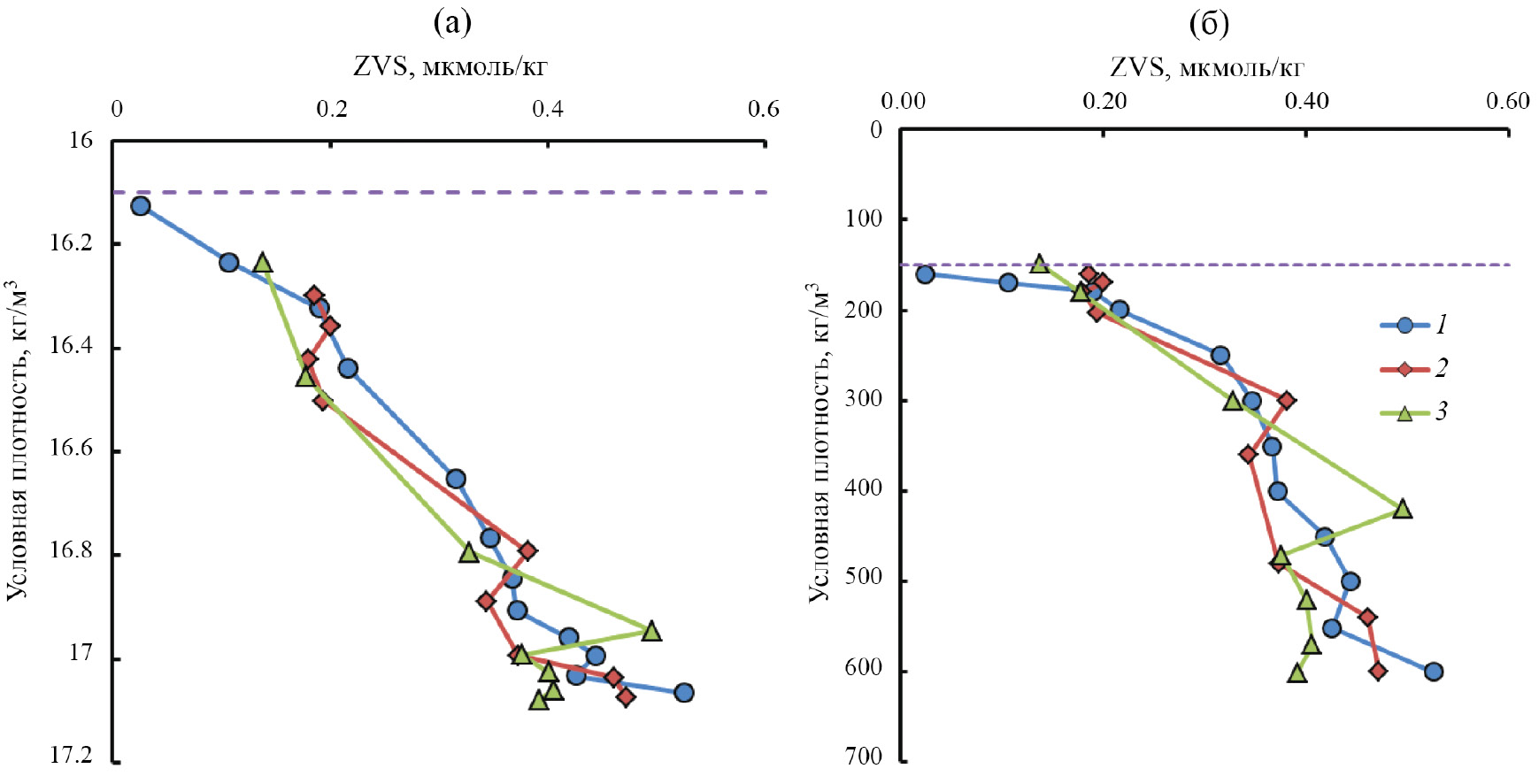

5. Fig. 4. ZVS distribution at stations Ash13 (1), Ash15 (2) and Ash16 (3) in the density field (a) and with depth (b). The dotted line shows the redox interface

下载 (156KB)

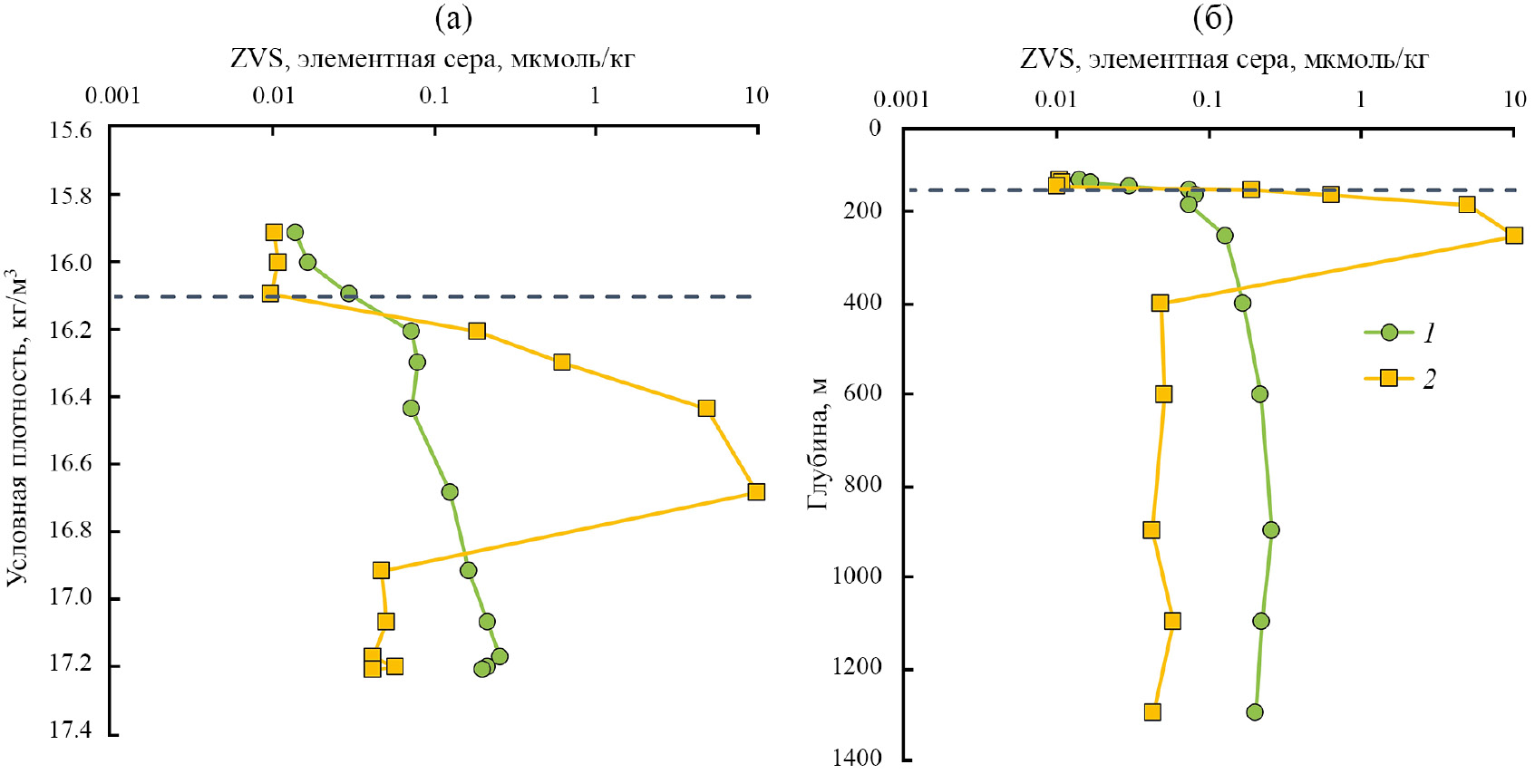

6. Fig. 5. Variation of ZVS (1) and elemental sulfur (S0) (2) concentrations in the Black Sea water at station 138.1 (7 October 2022) with respect to density (a) and water depth (b). The dotted line shows the redox interface

下载 (149KB)

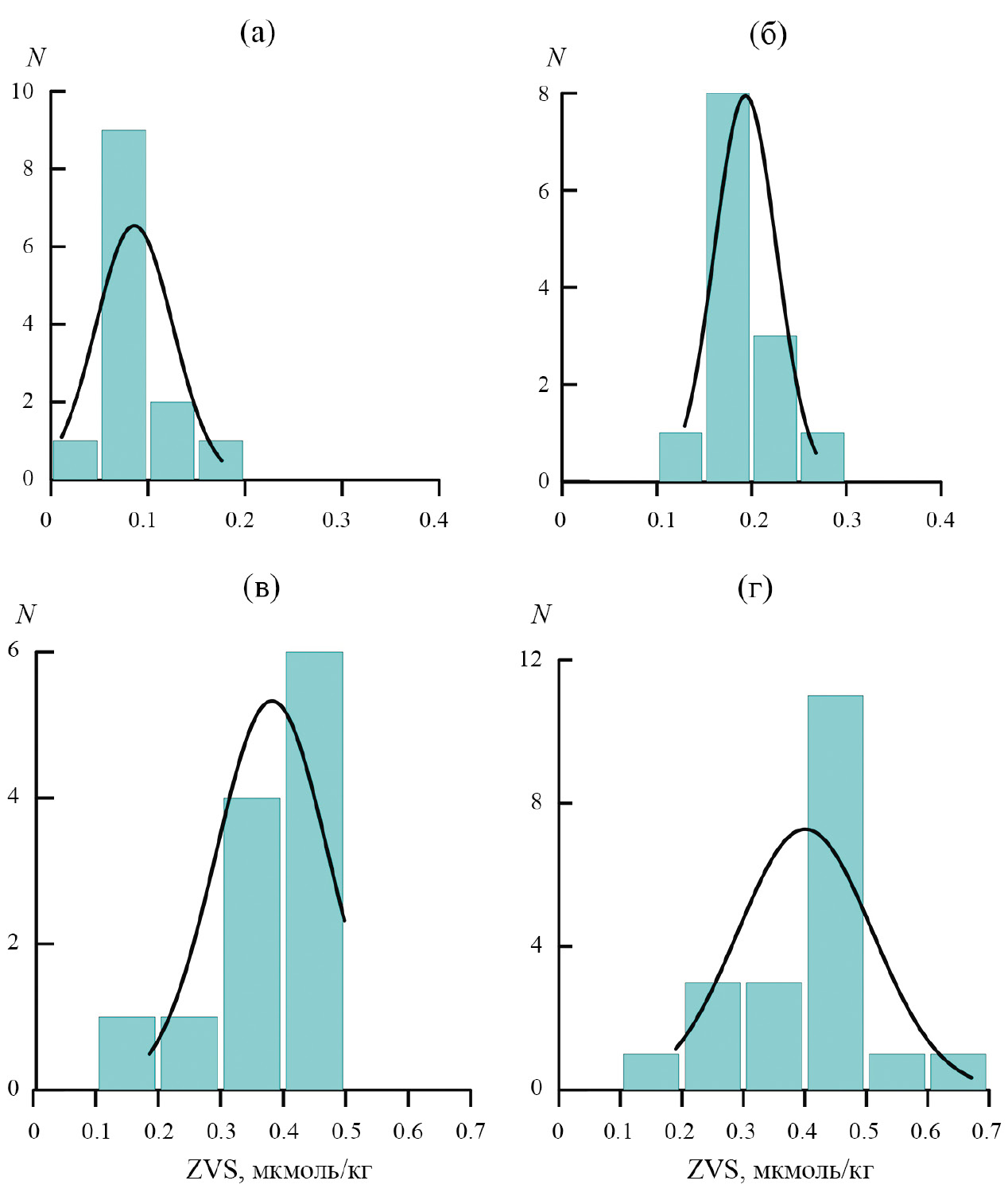

7. Fig. 6. Frequency histograms of the frequency of occurrence of ZVS concentrations at isopycn 16.2 (a), 16.4 (b), 16.8 (c) and 17.0 (d) in the interval ±0.1 kg/m3

下载 (161KB)
8. Fig. 7. Distribution of ZVS concentrations with increasing hydrogen sulfide with water column depth (up to 600 m) in the anaerobic zone of the Black Sea. The black line shows the empirical relationship [H2S] = 1490.18 × [ZVS]2.75, R2 = 0.894. The blue dashed line is the calculated amount of polysulfides from thermodynamic data (details given in the text). Inset shows the distribution of ZVS as a function of H2S in the upper part of the anaerobic zone

下载 (164KB)

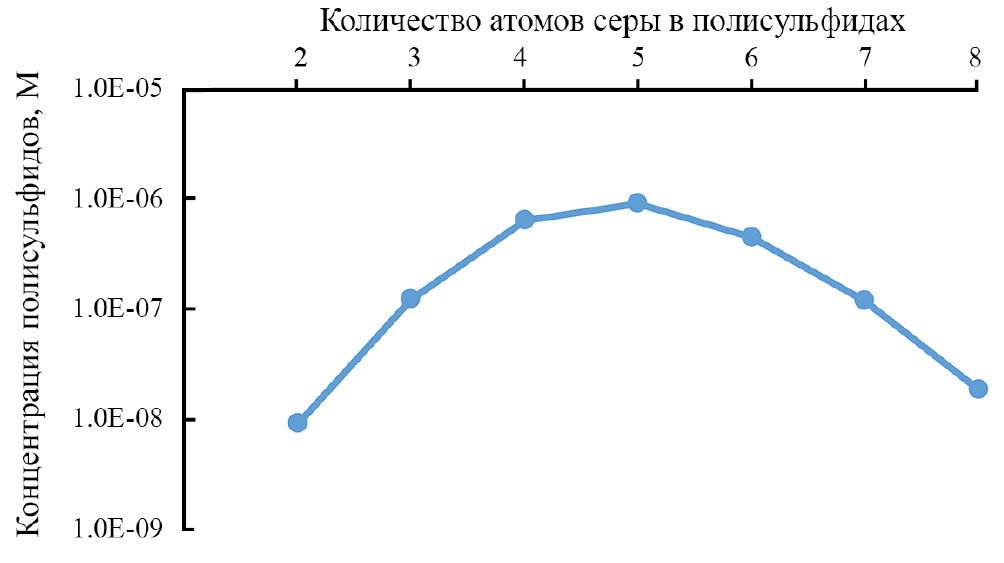

9. Fig. 8. Calculated polysulphide concentrations at 600 m depth in the anaerobic zone of the Black Sea (details of calculations are given in the text)

下载 (62KB)
