Functionalities of Ni–Ti Shape Memory Alloys and Their Efficiency as Event Actuators of Microelectromechanical Systems

V. S. Kalashnikov; Калашников В. С.; V. V. Koledov; Коледов В. В.; V. G. Shavrov; Шавров В. Г.; V. A. Andreev; Андреев В. А.; A. V. Nesolenov; Несоленов А. В.; D. S. Kuchin; Кучин Д. С.; R. D. Karelin; Карелин Р. Д.

doi:10.31857/S0033849423040046

Functionalities of Ni–Ti Shape Memory Alloys and Their Efficiency as Event Actuators of Microelectromechanical Systems

Authors: Kalashnikov V.S.¹, Koledov V.V.¹, Shavrov V.G.¹, Andreev V.A.², Nesolenov A.V.², Kuchin D.S.¹, Karelin R.D.²
Affiliations:
1. Kotelnikov Institute of Radioengineering and Electronics, Russian Academy of Sciences
2. Baykov Institute of Metallurgy and Materials Science, Russian Academy of Science
Issue: Vol 68, No 4 (2023)
Pages: 338-345
Section: К 90-ЛЕТИЮ ВЛАДИМИРА ГРИГОРЬЕВИЧА ШАВРОВА
URL: https://journal-vniispk.ru/0033-8494/article/view/138186
DOI: https://doi.org/10.31857/S0033849423040046
EDN: https://elibrary.ru/PEUBXW
ID: 138186

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

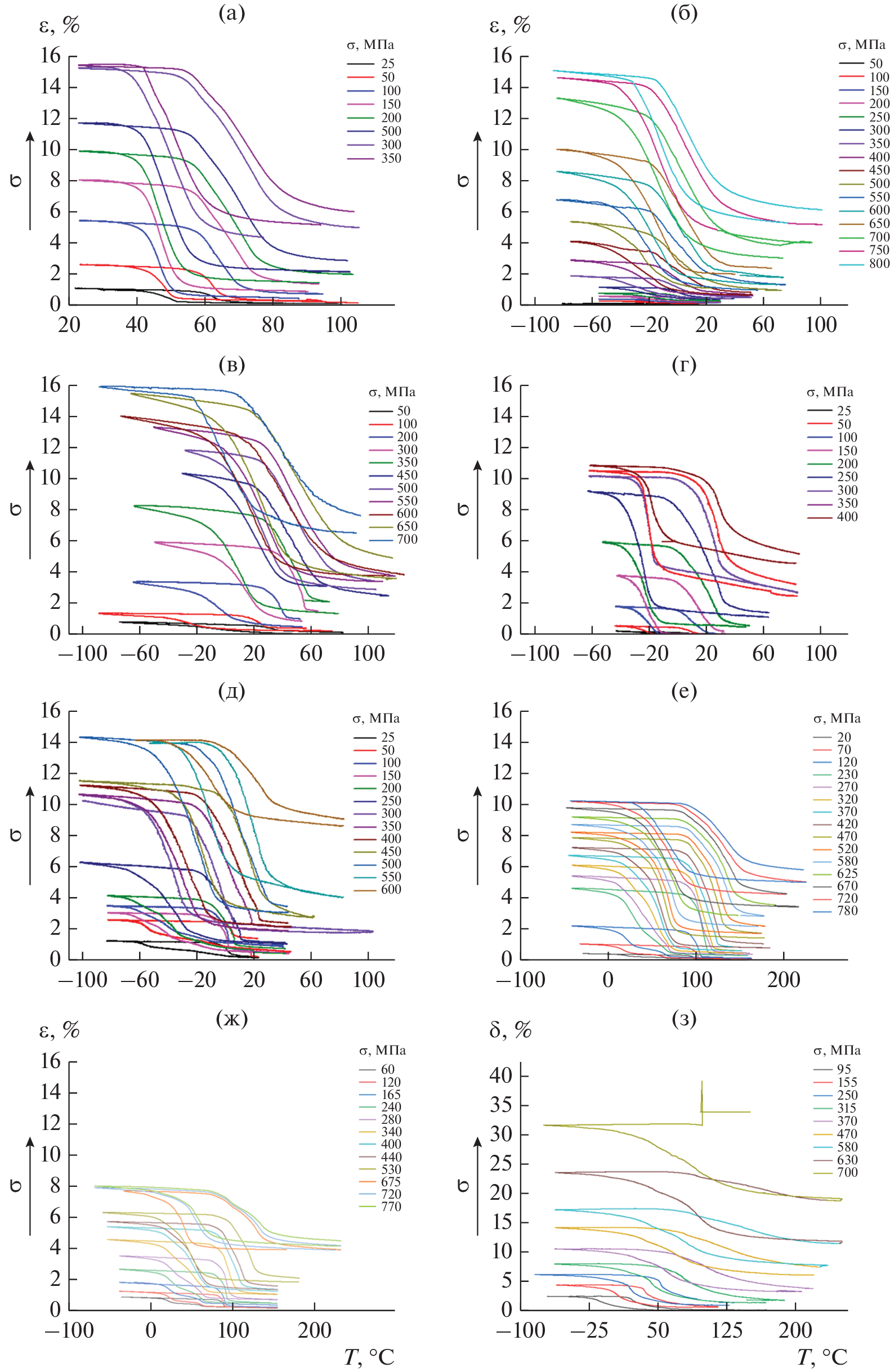

The functionalities of Ni–Ti alloys subjected to different deformation treatments are studied. A critical stress corresponding to the onset of degradation of the functional properties were determined; it was found that this stress is about twice as low as the yield stress. The efficiency coefficients of virtual thermodynamic machines with a working body made of the investigated materials were calculated and compared with the efficiency of a Carnot engine based on the same materials; the ideality factor has been calculated under the condition of actuating at stresses no higher than critical ones. It has been established that, at the single actuation, the highest ideality factor (9.7%) is characteristic of a material consisting of bars 20 to 5 mm in diameter obtained by warm forging at 350°C. It has been determined that, at discontinuous operation under stresses lower than the critical ones by a factor of 1.2, the ideality factor is 7.4–7.7% for alloys subjected to hot forging or equal channel angular pressing combined with warm forging.

Keywords

critical stress, virtual thermodynamic machine, Carnot engine

References

Jani J.M., Leary M., Subic A., Gibson M.A. // Materials and Design. 2014. V. 56. P. 1078. https://doi.org/10.1016/j.matdes.2013.11.084
Otsuka K., Ren X. // Prog. Mater. Sci. 2005. V. 50. P. 511. https://doi.org/10.1016/j.pmatsci.2004.10.001
Калашников В.С., Андреев В.А., Коледов В.В. и др. // Металловедение и термическая обработка металлов. 2019. Т. 770. С. 45.
Калашников В.С., Коледов В.В., Кучин Д.С. и др. // Приборы и техника эксперимента. 2018. № 2. С. 139. https://doi.org/10.7868/S0032816218020155
Калашников В.С., Коледов В.В., Кучин Д.С. и др. // Приборы и техника эксперимента. 2022. Т. 65. № 1. С. 139. https://doi.org/10.31857/S0032816222010049
Smith J.F., Lück R., Jiang Q. et al. // J. Phase Equilibria. 1993. V. 14. № 4. P. 494. https://doi.org/10.1007/BF02671969
Stachiv I., Alarcon E., Lamac M. // Metals. 2021. V. 11. № 3. Article No. 415. https://doi.org/10.3390/met11030415
Wang X., Verlinden B., Humbeeck J.V. // Intermetallics. 2015. V. 62. P. 43. https://doi.org/10.1016/j.intermet.2015.03.006
Калашников В.С., Мусабиров И.И., Коледов В.В. и др. // ЖТФ. 2020. Т. 90. № 4. С. 603. https://doi.org/10.21883/JTF.2020.04.49084.110-19
