Influence of Laser Microdisection of the Zona Pellucida of Embryos on the Its Thinning Dynamics under Cryopreservation Protocols

D. S. Sitnikov; Ситников Д. С.; D. E. Mukhdina; Мухдина Д. Е.; D. S. Korshunova; Коршунова Д. С.; Yu. Yu. Silaeva; Силаева Ю. Ю.; M. A. Filatov; Филатов М. А.; I. V. Ilina; Ильина И. В.

doi:10.31857/S0040364423040142

Influence of Laser Microdisection of the Zona Pellucida of Embryos on the Its Thinning Dynamics under Cryopreservation Protocols

Authors: Sitnikov D.S.¹, Mukhdina D.E.¹, Korshunova D.S.¹^,2, Silaeva Y.Y.¹^,2, Filatov M.A.¹^,2, Ilina I.V.¹
Affiliations:
1. Joint Institute for High Temperatures, Russian Academy of Sciences
2. Institute of Gene Biology, Russian Academy of Sciences
Issue: Vol 61, No 4 (2023)
Pages: 632-640
Section: New energy and modern technologies
URL: https://journal-vniispk.ru/0040-3644/article/view/232761
DOI: https://doi.org/10.31857/S0040364423040142
ID: 232761

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

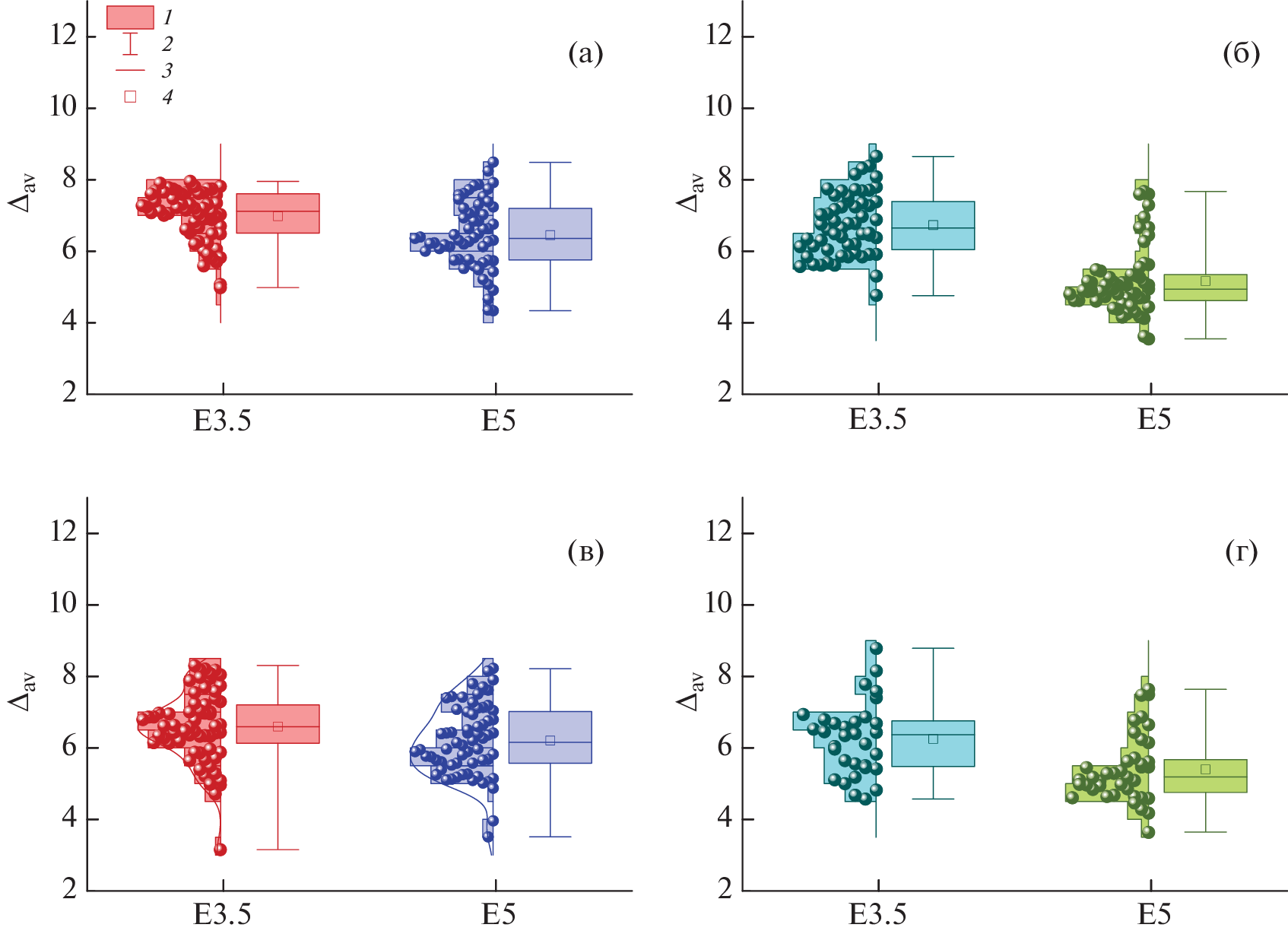

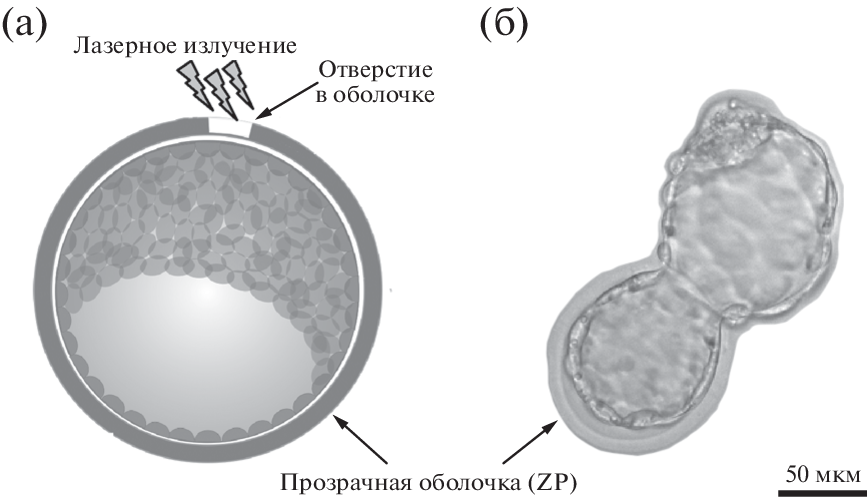

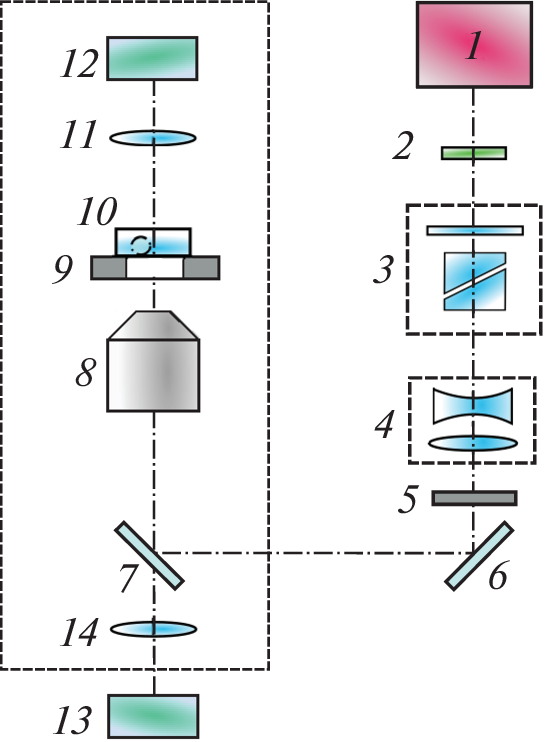

The authors studied the dynamics of thinning of the zona pellucida (ZP) in mouse embryo as a result of laser-assisted hatching performed at the blastocyst stage. Mouse embryos previously subjected to a freeze–thaw cycle (cryo-embryos) were selected as model embryos. For ZP microsurgery, femtosecond laser pulses were used (radiation wavelength 512 nm, pulse duration 100 fs, intensity 2.5 TW/cm2). The thickness of the ZP was measured before microsurgery at the blastocyst stage (~E3.5, i.e., 3.5 days of embryonic development) and at the hatching stage (~E5). It was found that the ZP of control group embryos (cryo-embryos not subjected to laser exposure) thinned more strongly (from 6.6 (E3.5) to 4.9 µm (E5)) compared to experimental embryos after the laser-assisted hatching procedure (from 7.1 ( E3.5) to 6.4 µm (E5)). In both the first and second cases, changes in ZP thickness were statistically significant. The results were compared with data for “fresh” embryos not subjected to cryopreservation. There was no pronounced effect of ZP hardening in cryo-embryos compared to fresh embryos. The use of the laser-assisted hatching procedure for cryo-embryos made it possible to increase the probability of successful hatching compared to embryos in the control group from 38.5 to 52.5%.

References

Goldman L., Rockwell R.J., Meyer R., Otten R., Wilson R.G., Kitzmiller K.W. Laser Treatment of Tattoos. A Preliminary Survey of Three Year’s Clinical Experience // JAMA. London: Springer London, 1967. V. 201. № 11. P. 841.
Кузнецов Е.В. АО “НИИ "Полюс” им. М.Ф. Стельмаха – 60 лет // Лазер-информ: информационный бюллетень Лазерной ассоциации. 2022. Т. 717. № 6. С. 1.
Шахно Е.А. Физические основы применения лазеров в медицине. СПб.: НИУ ИТМО, 2012. С. 77.
Minaev V.P. 2011–2021 – Ten More Years of Development of Laser Medical Equipment and Technologies // Laser Med. 2021. V. 25. № 2. P. 63.
Berns M.W., Aist J., Edwards J., Strahs K. et al. Laser Microsurgery in Cell and Developmental Biology // Science. 1981. V. 213. № 4507. P. 505.
Kohli V., Elezzabi A.Y. Prospects and Developments in Cell and Embryo Laser Nanosurgery // Wiley Interdiscip. Rev. Nanomedicine Nanobiotechnology. 2009. V. 1. № 1. P. 11.
Ebner T., Yaman C., Moser M., Sommergruber M., Hartl J., Tews G. Laser Assisted Immobilization of Spermatozoa Prior to Intracytoplasmic Sperm Injection in Humans // Hum. Reprod. 2001. V. 16. № 12. P. 2628.
Nahum R.T., Eroglu A., Toth T.L., Perez G., Isaacson K., Leykin L. P-061. Laser-assisted Intracytoplasmic Sperm Injection in Human Oocytes // Hum. Reprod. 1999. V. 14. Suppl. 3. P. 171.
Tadir Y., Douglas-Hamilton D.H. Laser Effects in the Manipulation of Human Eggs and Embryos for In Vitro Fertilization // Methods Cell Biol. 2007. V. 82. № 6. P. 409.
Douglas-Hamilton D.H., Conia J. Thermal Effects in Laser-assisted Pre-embryo Zona Drilling // J. Biomed. Opt. 2001. V. 6. № 2. P. 205.
Овчинников А.В., Чефонов О.В., Агранат М.Б. Генерация второй оптической гармоники в кремнии при воздействии терагерцевого импульса с высокой напряженностью электрического поля // ТВТ. 2022. Т. 60. № 5. С. 666.
Ашитков С.И., Иногамов Н.А., Комаров П.С., Петров Ю.В., Ромашевский С.А., Ситников Д.С., Струлeва Е.В., Хохлов В.А. Сверхбыстрый перенос энергии в металлах в сильно неравновесном состоянии, индуцируемом фемтосекундными лазерными импульсами субтераваттной интенсивности // ТВТ. 2022. Т. 60. № 2. С. 218.
Ilina I., Sitnikov D. From Zygote to Blastocyst: Application of Ultrashort Lasers in the Field of Assisted Reproduction and Developmental Biology // Diagnostics. 2021. V. 11. № 10. P. 1897.
Ilina I.V., Sitnikov D.S. Application of Ultrashort Lasers in Developmental Biology: A Review // Photonics. 2022. V. 9. № 12. P. 914.
Vogel A., Noack J., Hüttman G., Paltauf G. Mechanisms of Femtosecond Laser Nanosurgery of Cells and Tissues // Appl. Phys. B. 2005. V. 81. № 8. P. 1015.
Ситников Д.С., Ильина И.В., Пронкин А.А. Оценка теплового воздействия лазерных импульсов фемто- и миллисекундной длительности при выполнении микрохирургических процедур в эмбрионах млекопитающих // Квантовая электроника. 2022. Т. 52. № 5. С. 482.
Sitnikov D.S., Ovchinnikov A.V., Il’ina I.V., Chefonov O.V., Agranat M.B. Laser Microsurgery of Cells by Femtosecond Laser Scalpel and Optical Tweezers // High Temp. 2014. V. 52. № 6. P. 803.
Ilina I.V., Khramova Y.V., Ivanova A.D., Filatov M.A., Silaeva Yu.Yu., Deykin A.V., Sitnikov D.S. Controlled Hatching at the Prescribed Site Using Femtosecond Laser for Zona Pellucida Drilling at the Early Blastocyst Stage // J. Assist. Reprod. Genet. Journal of Assisted Reproduction and Genetics. 2021. V. 38. № 2. P. 517.
Ilina I.V., Khramova Y.V., Filatov M.A., Sitnikov D.S. Femtosecond Laser is Effective Tool for Zona Pellucida Engraving and Tagging of Preimplantation Mammalian Embryos // J. Assist. Reprod. Genet. 2019. V. 36. № 6. P. 1251.
Ilina I.V., Khramova Y.V., Filatov M.A., Sitnikov D.S. Application of Femtosecond Laser Microsurgery in Assisted Reproductive Technologies for Preimplantation Embryo Tagging // Biomed. Opt. Express. 2019. V. 10. № 6. P. 2985.
Choi J.K., Yue T., Huang H., Zhao G., Zhang M., He X. The Crucial Role of Zona Pellucida in Cryopreservation of Oocytes by Vitrification // Cryobiology. 2015. V. 71. № 2. P. 350.
Ильина И.В., Овчинников А.В., Ситников Д.С., Ракитянский М.М., Агранат М.Б., Храмова Ю.В., Семенова М.Л. Применение фемтосекундных лазерных импульсов в биомедицинских клеточных технологиях // ТВТ. 2013. Т. 51. № 2. С. 198.
Ситников Д.С., Ильина И.В., Филатов М.А., Силаева Ю.Ю. Исследование влияния микродиссекции блестящей оболочки эмбрионов млекопитающих на ее толщину // Вестник РГМУ. 2023. Т. 1. С. 41.
Dolgushina N.V., Ibragimova E.O., Romanov A.Yu., Burmenskaya O.V., Makarova N.P., Shafei R.A., Syrkasheva A.G. Predictors of Spontaneous Human Blastocyst Hatching in ART Programs // Akush. Ginekol. (Sofiia). 2018. V. 2. P. 88.
Шафеи Р.А., Сыркашева А.Г., Романов А.Ю., Макарова Н.П., Долгушина Н.В., Семёнова М.Л. Хетчинг бластоцисты у человека // Онтогенез. 2017. Т. 48. № 1. С. 8.
Inoue T., Uemura M., Miyazaki K., Yamashita Y. Failure of Complete Hatching of ICSI-derived Human Blastocyst by Cell Herniation via Small Slit and Insufficient Expansion Despite Ongoing Cell Proliferation // J. Assist. Reprod. Genet. 2019. V. 36. № 8. P. 1579.
Larman M.G., Sheehan C.B., Gardner D.K. Calcium-free Vitrification Reduces Cryoprotectant-induced Zona Pellucida Hardening and Increases Fertilization Rates in Mouse Oocytes // Reproduction. 2006. V. 131. № 1. P. 53.
Sun Q.-Y. Cellular and Molecular Mechanisms Leading to Cortical Reaction and Polyspermy Block in Mammalian Eggs // Microsc. Res. Tech. 2003. V. 61. № 4. P. 342.
Wiesak T., Złotkowska A., Milewski R. Effect of Vitrification on the Zona Pellucida Hardening and Follistatin and Cathepsin B Genes Expression and Developmental Competence of in vitro Matured Bovine Oocytes // Cryobiology. 2017. V. 76. P. 18.
