Biohybrid Technology for the Detection of Ultralow Concentrations of Trinitrotoluene in Air

V. N. Kiroy; Кирой В. Н.; P. O. Kosenko; Косенко П. О.; I. E. Shepelev; Шепелев И. Е.; I. V. Shcherban; Щербань И. В.; A. B. Smolikov; Смоликов А. Б.; F. V. Arsenyev; Арсеньев Ф. В.; A. V. Zaborovsky; Заборовский А. В.; V. A. Aksenov; Аксёнов В. А.; M. I. Tivileva; Тивилёва М. И.; V. M. Gruznov; Грузнов В. М.; I. I. Zasypkina; Засыпкина И. И.

doi:10.31857/S0044450223080091

Biohybrid Technology for the Detection of Ultralow Concentrations of Trinitrotoluene in Air

作者: Kiroy V.N.¹, Kosenko P.O.¹, Shepelev I.E.¹, Shcherban I.V.¹, Smolikov A.B.¹, Arsenyev F.V.², Zaborovsky A.V.³, Aksenov V.A.³, Tivileva M.I.³, Gruznov V.M.⁴^,5, Zasypkina I.I.⁶
隶属关系:
1. Southern Federal University
2. Foundation for Advanced Research
3. Scientific and Production Association “Special Equipment and Communications,” Ministry of Internal Affairs of the Russian Federation
4. Trofimuk Institute of Petroleum Geology and Geophysics, Siberian Branch, Russian Academy of Sciences
5. Novosibirsk State Technical University
6. Trofimuk Institute of Petroleum Geology and Geophysics, Siberian Branch, Russian Academy of SciencesTrofimuk Institute of Petroleum Geology and Geophysics, Siberian Branch, Russian Academy of Sciences
期: 卷 78, 编号 8 (2023)
页面: 736-744
栏目: ORIGINAL ARTICLES
##submission.dateSubmitted##: 14.10.2023
URL: https://journal-vniispk.ru/0044-4502/article/view/136065
DOI: https://doi.org/10.31857/S0044450223080091
EDN: https://elibrary.ru/SHDSTZ
ID: 136065

如何引用文章

全文:

开放存取

##reader.subscriptionAccessGranted##
受限制的访问

订阅存取

详细
作者简介
参考
补充文件
统计

详细

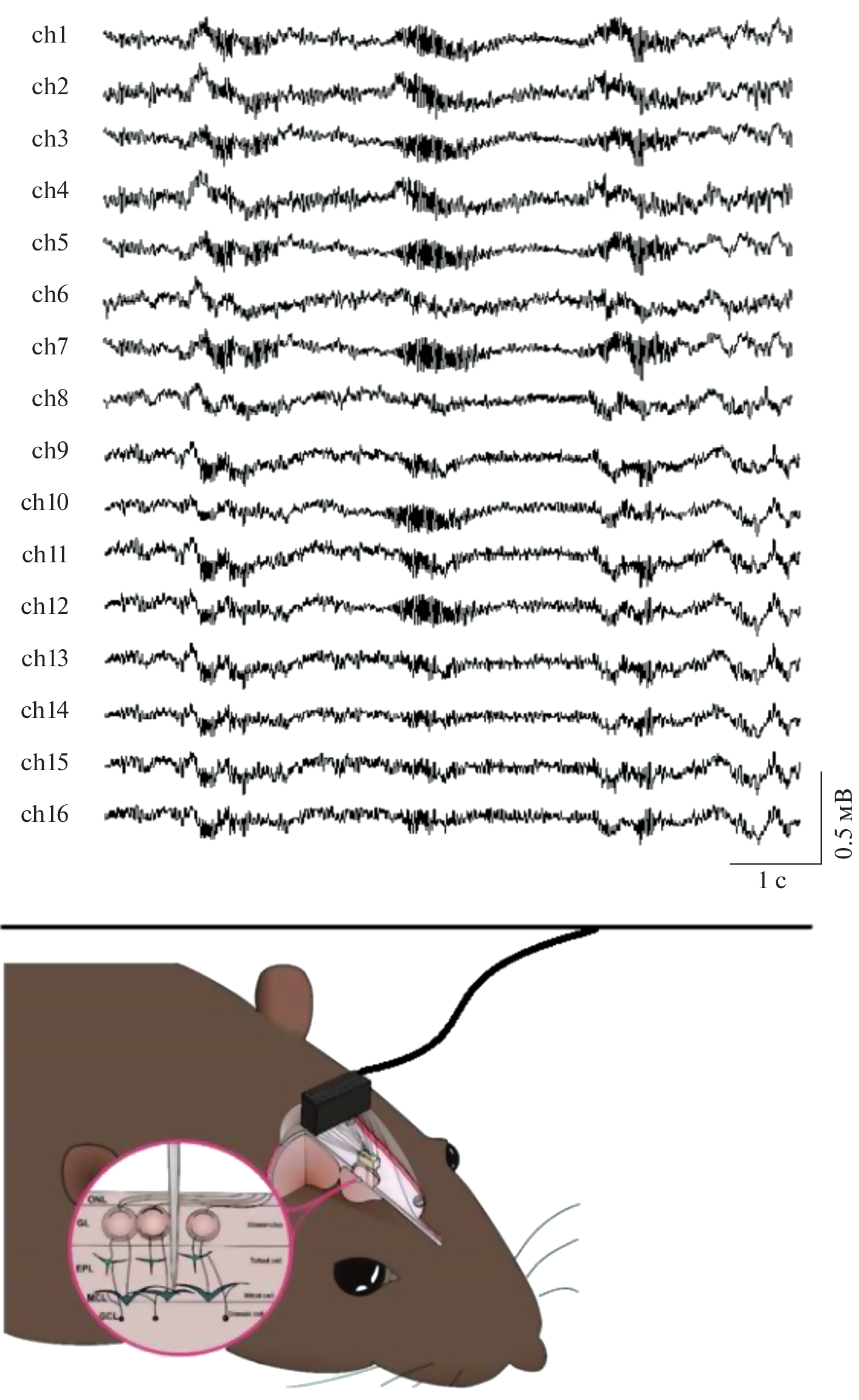

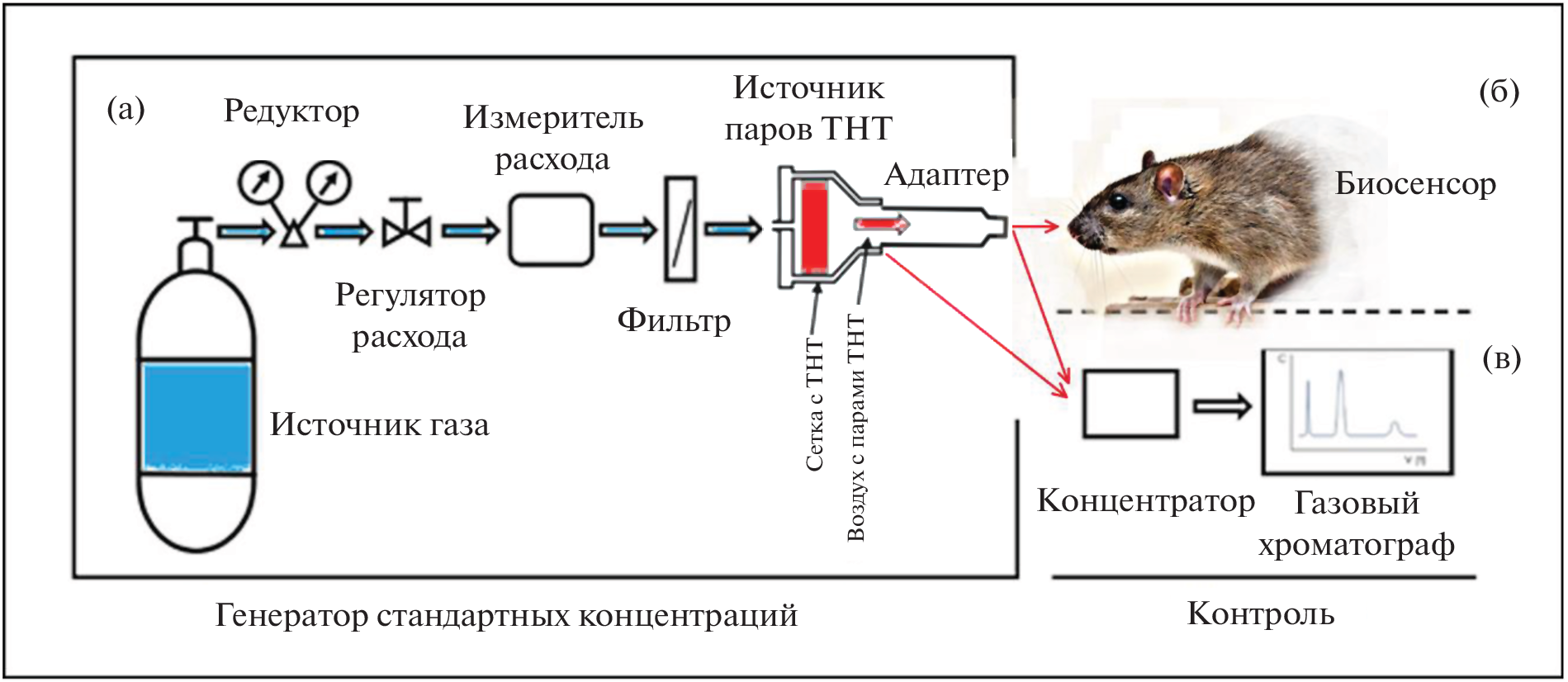

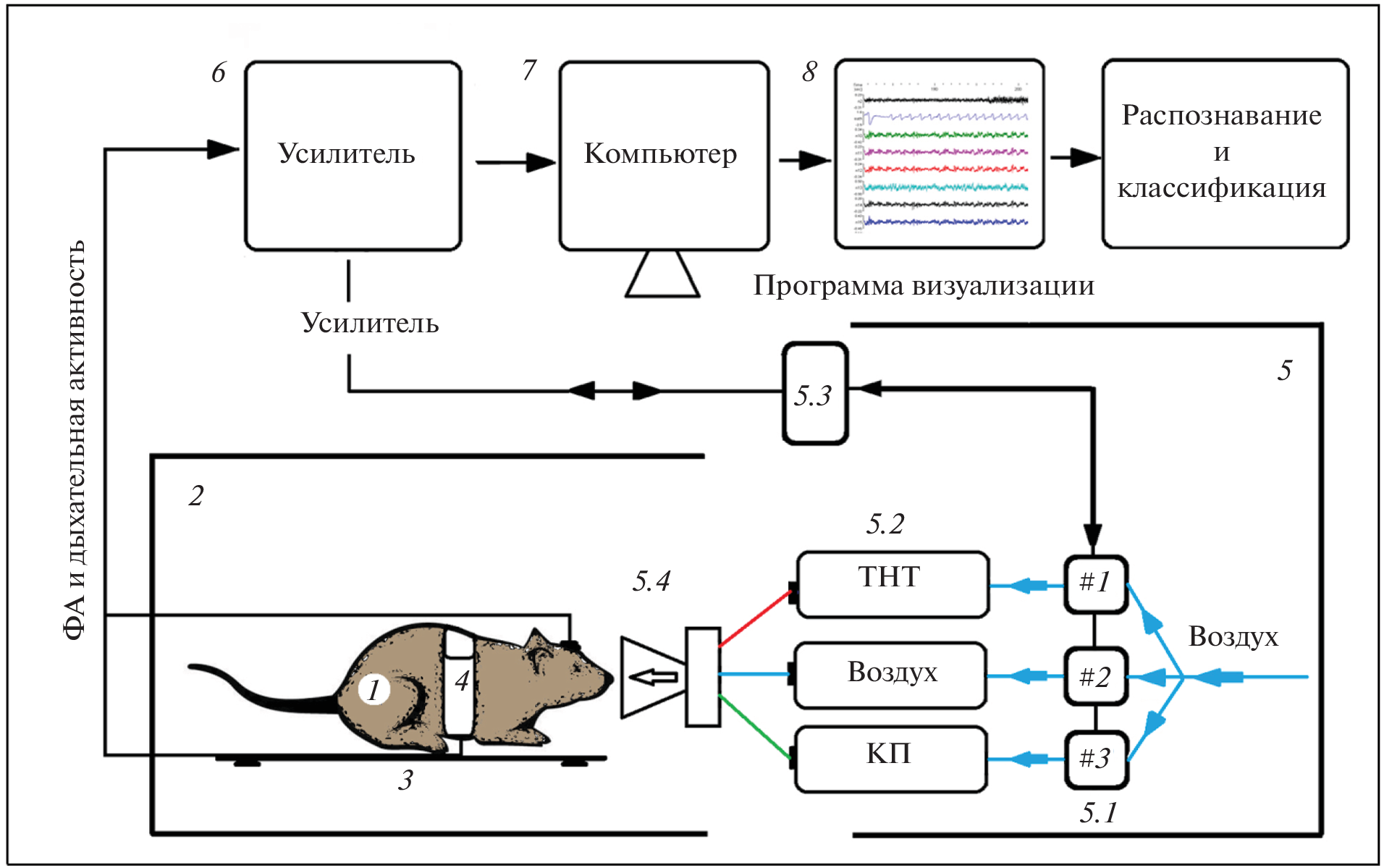

The technology is based on recording the focal activity (FA) of the olfactory bulb (OB) of rats upon the exposure rats to trinitrotoluene (TNT) vapors in the concentration 4.7 × 10–15 g/cm3, separately and in a mixture with saturated vapors of a complex interference composed of spices. The focal activity of the rat olfactory bulb was recorded using an array of 16 special electrodes implanted in the dorsal part of the rat olfactory bulb. The setup contained a box with a rat, sources of vapors (odorants), a multichannel digital system for recording electrical signals from an electrode array, and software performing algorithms for recognizing and classifying odorants presented to the rat. One source of TNT vapors was a device for batch volumetric preparation with a concentration of about 10–15 g/cm3, and another source was a source with a concentration of 4.7 × 10–15 g/cm3 in an air flow presented to rats. Data from 25 tests showed a 100% probability of detecting TNT vapors of the specified concentrations in pure air and also in the presence of a complex odor interference in the form of vapors from a mixture of red pepper, coriander, tobacco, etc., which, as a rule, mask the smell of TNT for animals.The technology is based on recording the focal activity (FA) of the olfactory bulb (OB) of rats upon the exposure rats to trinitrotoluene (TNT) vapors in the concentration 4.7 × 10–15 g/cm3, separately and in a mixture with saturated vapors of a complex interference composed of spices. The focal activity of the rat olfactory bulb was recorded using an array of 16 special electrodes implanted in the dorsal part of the rat olfactory bulb. The setup contained a box with a rat, sources of vapors (odorants), a multichannel digital system for recording electrical signals from an electrode array, and software performing algorithms for recognizing and classifying odorants presented to the rat. One source of TNT vapors was a device for batch volumetric preparation with a concentration of about 10–15 g/cm3, and another source was a source with a concentration of 4.7 × 10–15 g/cm3 in an air flow presented to rats. Data from 25 tests showed a 100% probability of detecting TNT vapors of the specified concentrations in pure air and also in the presence of a complex odor interference in the form of vapors from a mixture of red pepper, coriander, tobacco, etc., which, as a rule, mask the smell of TNT for animals.

关键词

olfactory bulb, focal activity, explosives, biosensor test systemolfactory bulb, focal activity, explosives, biosensor test system

参考

Saravanan N.P., Venugopalan S., Senthilkumar N., Santhosh P., Kavita B., Gurumallesh Prabu H. Voltammetric determination of nitroaromatic and nitramine explosives contamination in soil // Talanta. 2006. V. 69. № 3. P. 656.
Salinas Y., Martínez-Máñez R., D Marcos M., Sancenón F., M Costero A., Parra M., Gil S. Optical chemosensors and reagents to detect explosives // Chem. Soc. Rev. 2012. V. 41. № 3. P. 1261.
Детектор паров взрывчатых веществ “Шельф-ПКЛ” [Электронный ресурс]. http://www.bnti.ru/des.asp?itm=5591&tbl=04.01.01 (дата обращения: сентябрь 2022 г.).
Грузнов В.М., Балдин М.Н., Аксёнов В.А. Роль высокой чувствительности газоаналитических обнаружителей и их современные характеристики // Научно-технический портал МВД России. 2019. № 4. С. 61.
Грузнов В.М., Балдин М.Н., Прямов М.В., Максимов Е.М. Определение концентрации паров взрывчатых веществ с дистанционным автоматизированным отбором проб при контроле объектов // Журн. аналит. химии. 2017. Т. 72. № 11. С. 1000.
Homma R., Nagayama S. A prism method for optical glomerular mapping of the medial olfactory bulb in mice // Front Neural Circuits. 2019. V. 13. P. 79.
Olofsson J.K., Freiherr J. Neuroimaging of smell and taste // Handb Clin. Neurol. 2019. V. 164. P. 263.
Murthy V.N. Olfactory maps in the brain // Annu. Rev. Neurosci. 2011. V. 34. P. 233.
Baker K.L., Vasan G., Gumaste A., Pieribone V.A., Verhagen J.V. Spatiotemporal dynamics of odor responses in the lateral and dorsal olfactory bulb // PLoS Biology. 2019. V. 17. № 9. Article e3000409.
Vizcay M.A., Duarte-Mermoud M.A., de la Luz Aylwin M. Odorant recognition using biological responses recorded in olfactory bulb of rats // Comput. Biol. Med. 2015. V. 56. P. 192.
Shepelev I.E., Kiroy V.N., Scherban I.V., Kosenko P.O., Smolikov A.B., Saevskiy A.L. Tracking of informative gamma frequency range in local field potentials of anesthetized rat olfactory bulb for odor discrimination // Biomed. Signal Process. Control. 2022. V. 71. Article 103139.
Kosenko P.O., Smolikov A.B., Voynov V.B., Shaposhnikov P.D., Saevskiy A.I., Kiroy V.N. Effect of xylazine-tiletamine-zolazepam on the local field potential of the rat olfactory bulb // Comp. Med. 2020. V. 70. № 6. P. 492.
ГОСТ Р ИСО 6144-2008. Анализ газов. Приготовление градуировочных газовых смесей. Статический объемный метод. Москва: Стандартинформ, 2009. 24 с.
Надолинный В.А., Коломиец Ю.Н., Мардежова Г.А., Даниленко А.М., Пронин В.Г. Способ приготовления стандартных газовых смесей и устройство для его осуществления. Патент № 2410678 РФ. Заявка 2009137173/28 от 07.10.2009, опубл. 27.01.2011.
Грузнов В.М., Филоненко В.Г., Балдин М.Н., Шишмарёв А.Т. Портативные экспрессные газоаналитические приборы для определения следовых количеств веществ // Рос. хим. журн. 2002. Т. 46. № 4. С. 100.
Koles J.Z., Lazar M.S., Zhou Z. Spatial patterns underlying population differences in the background EEG // Brain Topography. 1990. V. 2. № 4. P. 275.
Hastie T., Tibshirani R., Friedman J.H. The Elements of Statistical Learning: Data Mining, Inference, and Prediction. New York: Springer, 2009. P. 745.
Gao K., Zhuang L., Qin Z., Zhang B., Huang L., Wang P. In vivo bioelectronic nose using transgenic mice for specific odor detection // Biosens. Bioelectron. 2018. V. 102. P. 150.
You K.J., Ham H.G., Lee H.J., Lang Y., Im Ch., Koh Ch. S., Kim M.-Y., Shin Hung-Cheul, Shin Hyun-Chool Odor discrimination using neural decoding of the main olfactory bulb in rats // IEEE Trans. Biomed. Eng. 2010. V. 58. № 5. P. 1208.
Zhuang L., Guo T., Zhang B. In Vivo Bioelectronic Nose. Bioinspired Smell and Taste Sensors. Dordrecht: Springer, 2015. P. 167.
Walker D.B., Walker J.C., Cavnar P.J., Taylor J.L., Pickel D., Hall S., Suarez J. Naturalistic quantification of canine olfactory sensitivity // Appl. Anim. Behav. Sci. 2006. V. 97. № 2–4. P. 241.
Patterson M.A., Lagier S., Carleton A. Odor representations in the olfactory bulb evolve after the first breath and persist as an odor afterimage // Proc. Natl. Acad. Sci. 2013. V. 110. № 35. P. E3340.
