电邮这篇文章 On a Flow Around a Cylinder Over Uneven Bottom
- 作者: Baikov N.D.1, Petrov A.G.1
-
隶属关系:
- Ishlinsky Institute for Problems in Mechanics, Russian Academy of Sciences
- 期: 卷 63, 编号 3 (2023)
- 页面: 424-435
- 栏目: Mathematical physics
- URL: https://journal-vniispk.ru/0044-4669/article/view/134304
- DOI: https://doi.org/10.31857/S004446692303002X
- EDN: https://elibrary.ru/DZOWGF
- ID: 134304
如何引用文章
开放存取
##reader.subscriptionAccessGranted##
订阅存取
详细

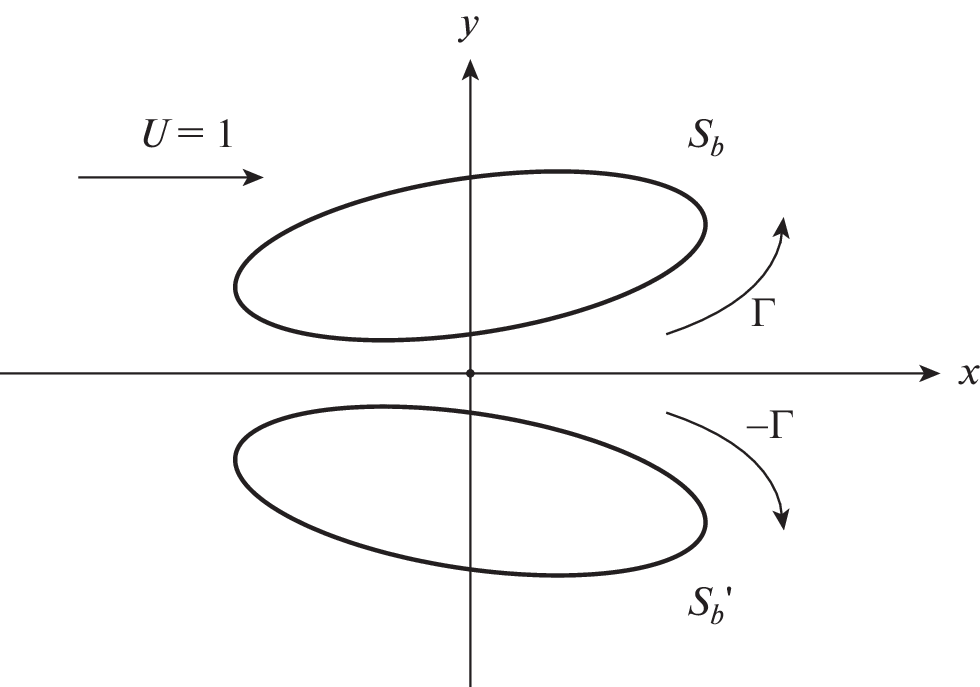

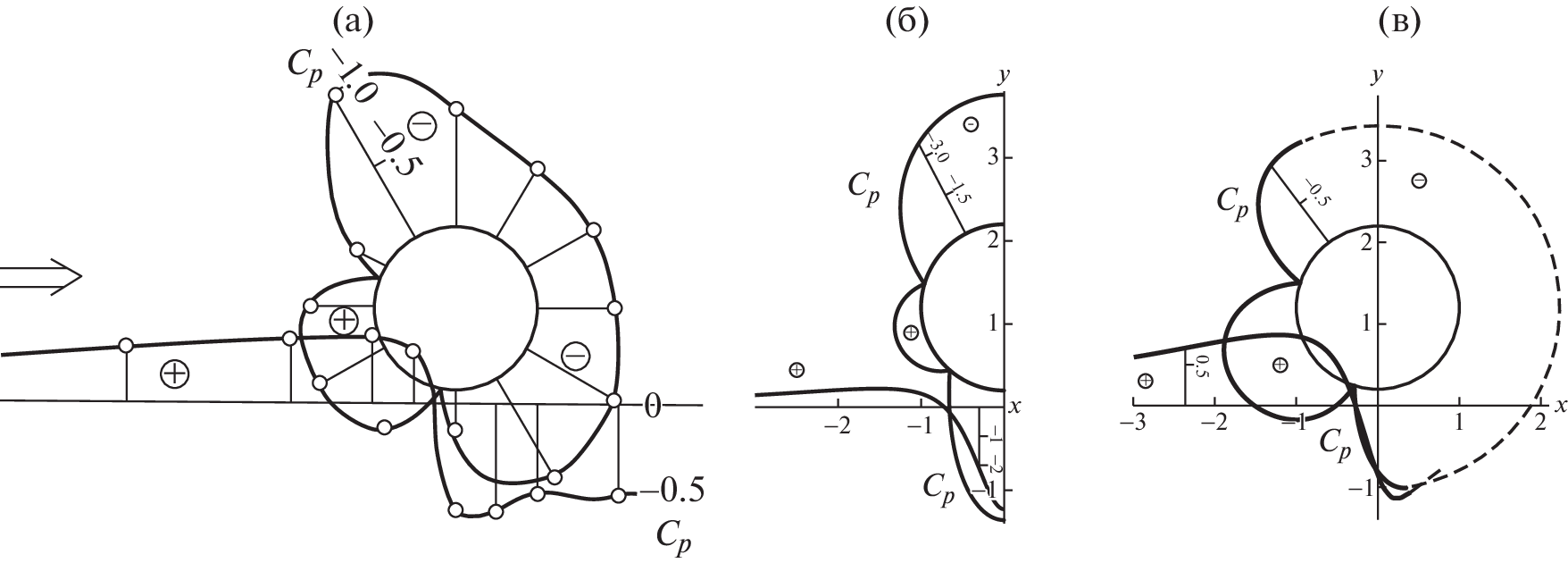

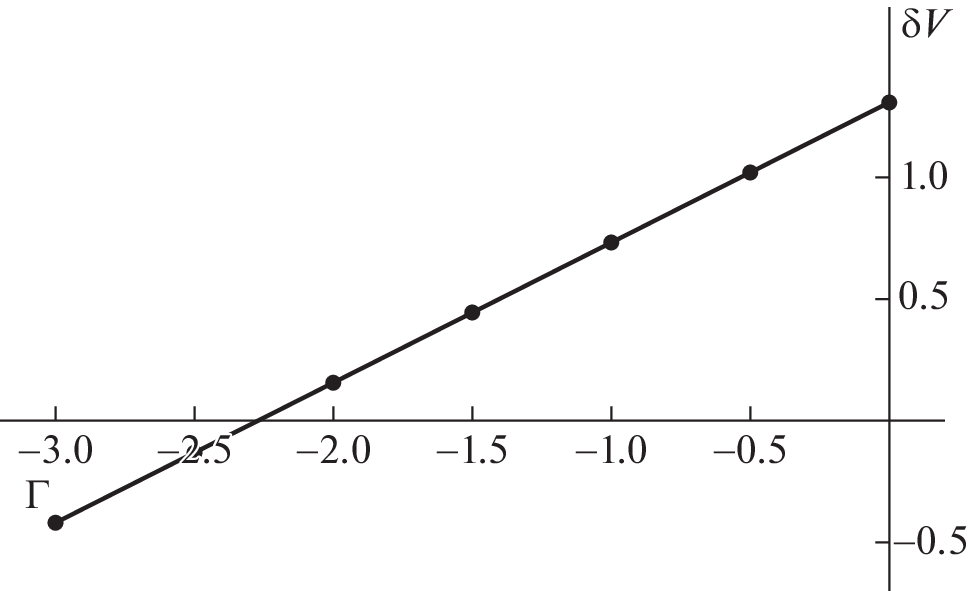

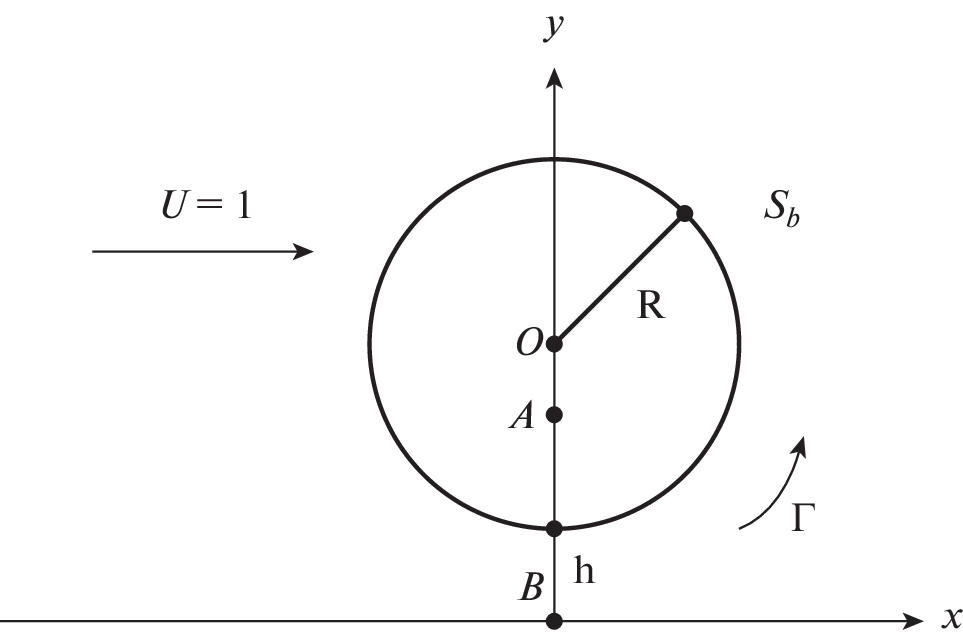

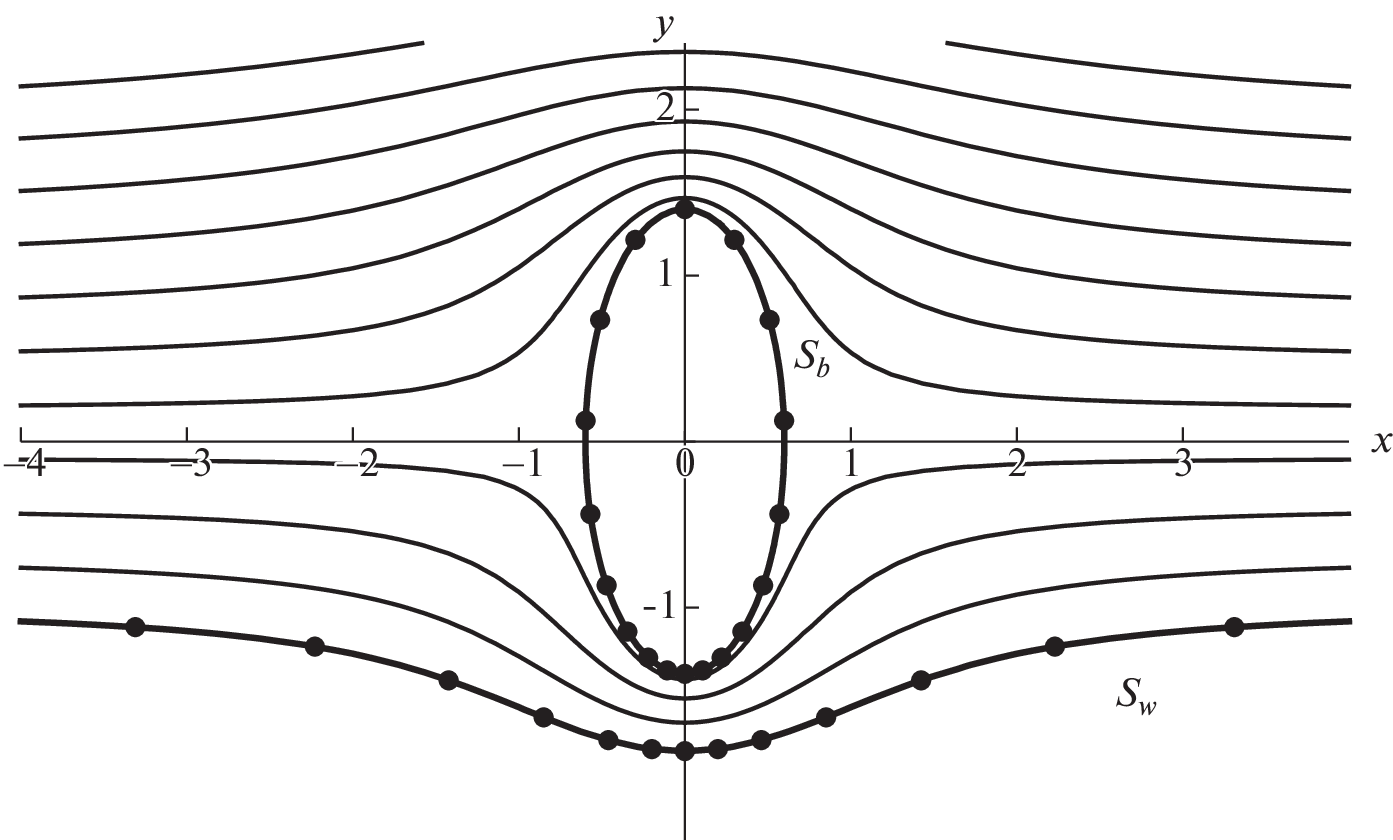

A plane problem of a potential fluid flow around a cylinder of arbitrary section over an uneven bottom with a flow velocity at infinity directed parallel to the bottom is considered. The circulation of the velocity field is determined from Goldshtik’s postulate: the maximum velocity on the contour of the cylinder must be minimal. Two numerical schemes of the boundary element method are developed for solving this problem. The first scheme determines the flow on a bounded but arbitrarily defined bottom surface. The second scheme determines the flow around a contour in a half plane. The comparison of calculations using these numerical schemes with the exact solutions shows the convergence of the method as the grid elements increase. The pressure on the cylinder surface and on the bottom obtained using numerical calculations by the
–

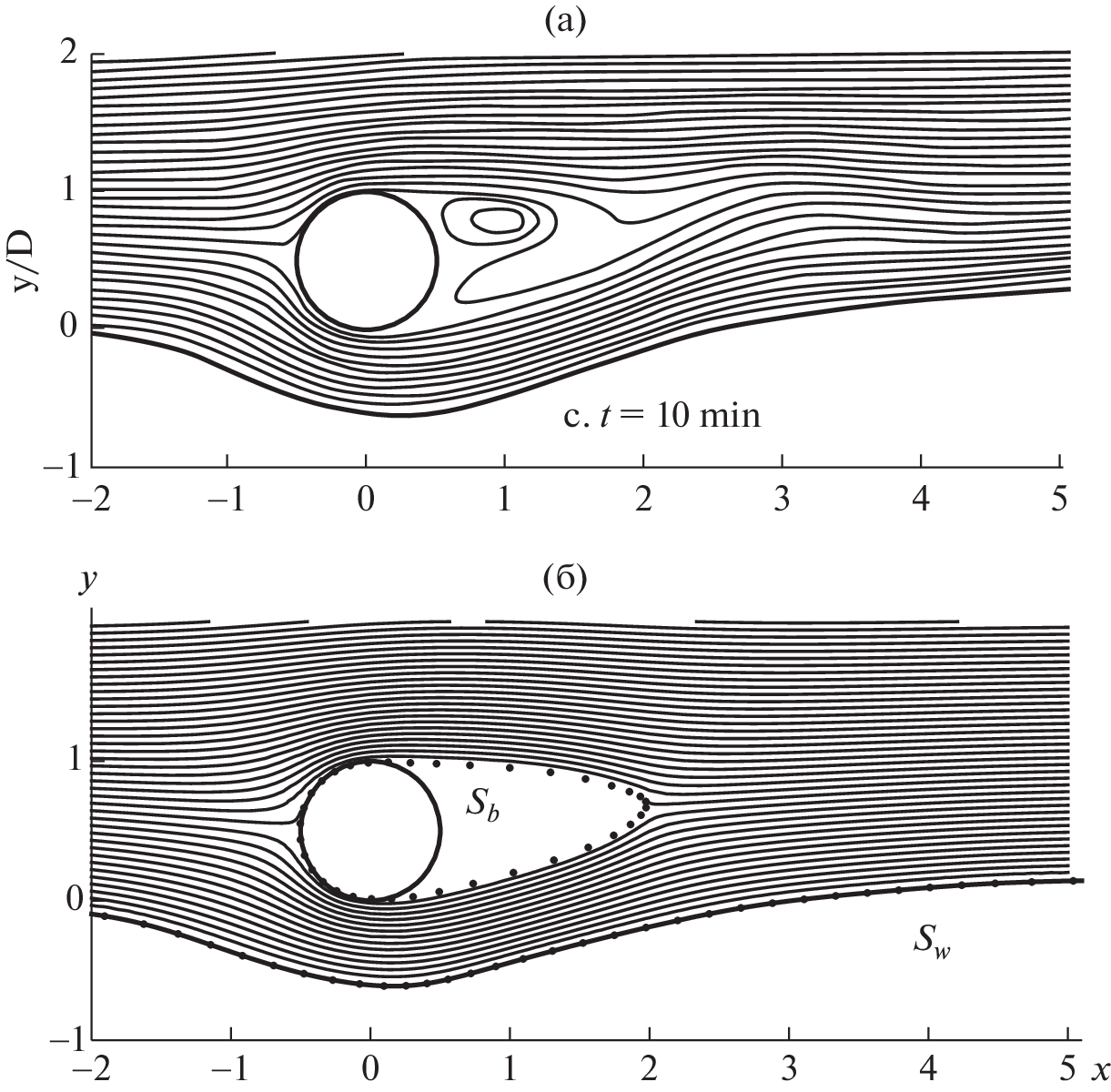

model is compared with experimental data. Streamlines are also compared taking into account the separation region.
作者简介
N. Baikov
Ishlinsky Institute for Problems in Mechanics, Russian Academy of Sciences
Email: baikov_nd@rambler.ru
119526, Moscow, Russia
A. Petrov
Ishlinsky Institute for Problems in Mechanics, Russian Academy of Sciences
编辑信件的主要联系方式.
Email: petrovipmech@gmail.com
119526, Moscow, Russia
参考
- Петров А.Г., Маклаков Д.В. Об определении циркуляции вокруг цилиндра, обтекаемого вблизи плоскости // Приклад. матем. и механ. 2022. Т. 3. С. 351–363.
- Гольдштик М.А., Ханин В.М. Взаимодействие цилиндра со свободной поверхностью и струей// Мех. жидкости газа. 1977. № 5. С. 50–58.
- Bearman P.W., Zdravkovich M.M. Flow around a circular cylinder near a plane boundary // J. Fluid. Mech. 1978. V. 89. Part 1. P. 33–47.
- Price S.J., Sumner D., Smith J.G., Leong K., Paigdoussis M.P. Flow visualization around a circular cylinder near to a plane wall // J. Fluid. Structur. 2002. V. 16. № 2. P. 175–191.
- Милн-Томсон Л.М. Теоретическая гидродинамика. М.: Мир, 1964. 655 с.
- Седов Л.И. Плоские задачи гидродинамики и аэродинамики. М.: Физматлит, 1980. С. 448.
- Lagally M. The frictionless current in the outer areas of double circuits // Z. Angew. Math. Mech. 1929. № 9. P. 299–305.
- Lagally M. The frictionless flow in the region around two circles. N.A.C.A. Technical Memorandum No. 626, 1931.
- Мазур В.Ю. Устойчивость и переход через критические обороты быстро вращающихся роторов при наличии трения // Механ. жидкости газа. 1966. № 3. С. 75–79.
- Wang Q.X. Interaction of two circular cylinders in inviscid flow // Phys. Fluid. 2004. V. 16. P. 4412–4425.
- Crowdy D.G. Analytical solution for uniform potential flow past multiple cylinders // Eur. J. Mech. B/Fluid. 2006. V. 25. № 4. P. 459–470.
- Crowdy D.G., Surana A., Yick K.-Y. The irrotational motion generated by two planar stirrers in inviscid fluid // Phys. Fluid. 2007. V. 19. P. 018103.
- Alassar R.S., El-Gebeily M.A. Inviscid flow past two cylinders // ASME Trans. J. Fluid Eng. 2009. V. 131. P. 054501.
- Петров А.Г., Сандуляну Ш.В. Моделирование электрохимической обработки методом граничных элементов без насыщения // Ж. вычисл. матем. и матем. физ. 2016. Т. 56. № 10. С. 120–130.
- Петров А.Г. Алгоритм построения квадратурных формул с экспоненциальной сходимостью для линейных операторов, действующих на периодические функции // Изв. вузов. Матем. 2021. № 2. С. 86–92.
- Zhao M., Cheng L. Numerical modeling of local scour below a piggyback pipeline in currents // J. Hydraul. Engineer. 2008. V. 56. № 10. P. 1452–1463.
