Enviar artigo por via de e-mail Self-Organization of Intermetallic Systems: New Cluster-Precursors K12 = 0@12(Li9Ge3) and K9 = 0@9(Li8Ge) Li68Ge16-oC84 in the Crystal Structure, K11 = 0@11(Li6Ge5) and K6 = 0@6(Li5Ge) Cluster-Precursors in the Li44Ge24-oC68 Crystal Structure and K6 = 0@6(Li3Ge3) Cluster-Precursors in the Li12Ge12-tI24 Crystal Structure
- Autores: Shevchenko V.Y.1, Ilyushin G.D.2
-
Afiliações:
- Grebenshchikov Institute of Silicate Chemistry, Russian Academy of Sciences
- Federal Research Center “Crystallography and Photonics,” Russian Academy of Sciences
- Edição: Volume 49, Nº 1 (2023)
- Páginas: 15-26
- Seção: Articles
- URL: https://journal-vniispk.ru/0132-6651/article/view/139303
- DOI: https://doi.org/10.31857/S0132665122600662
- EDN: https://elibrary.ru/CGQPBO
- ID: 139303
Citar
Texto integral
Resumo

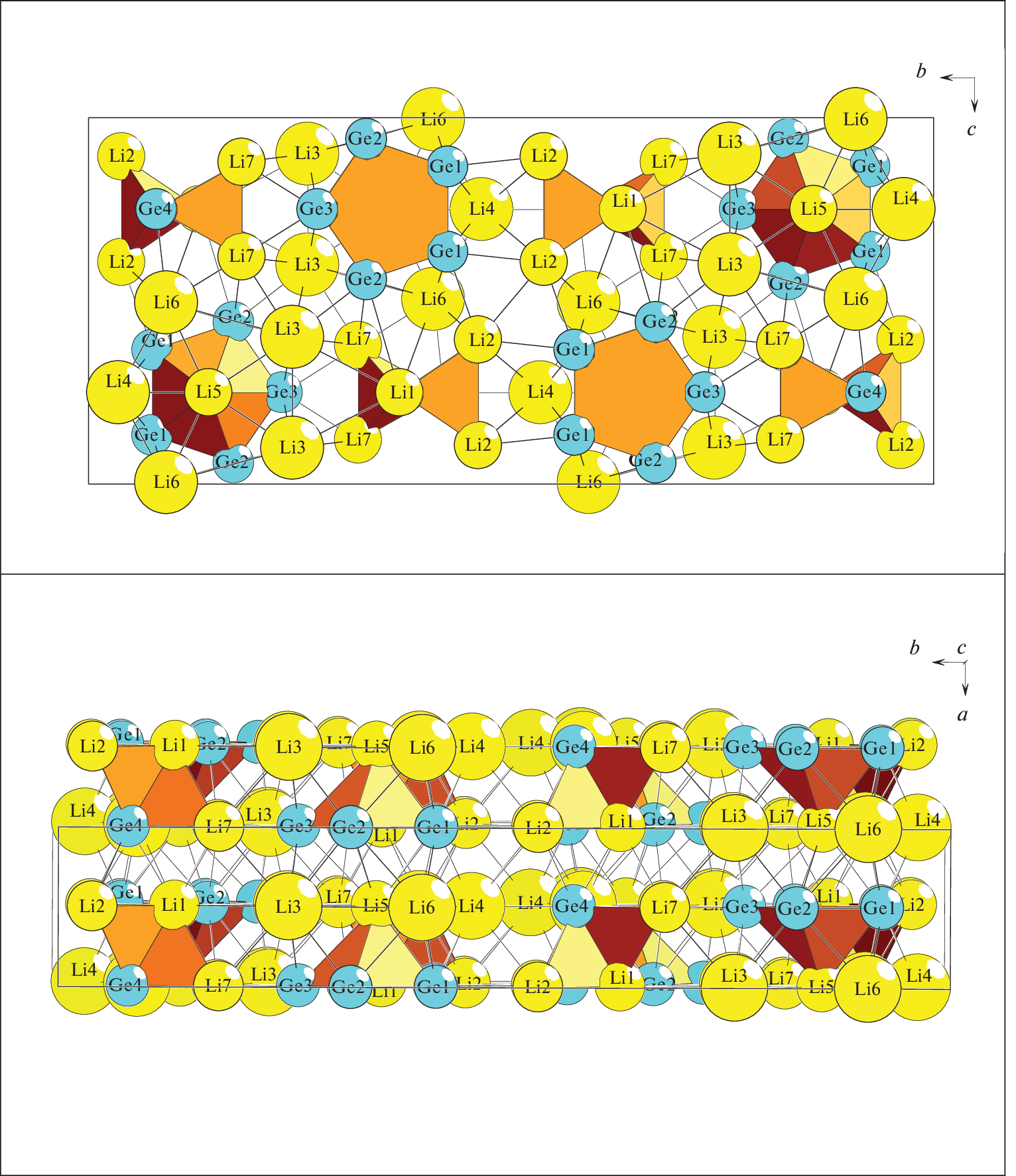

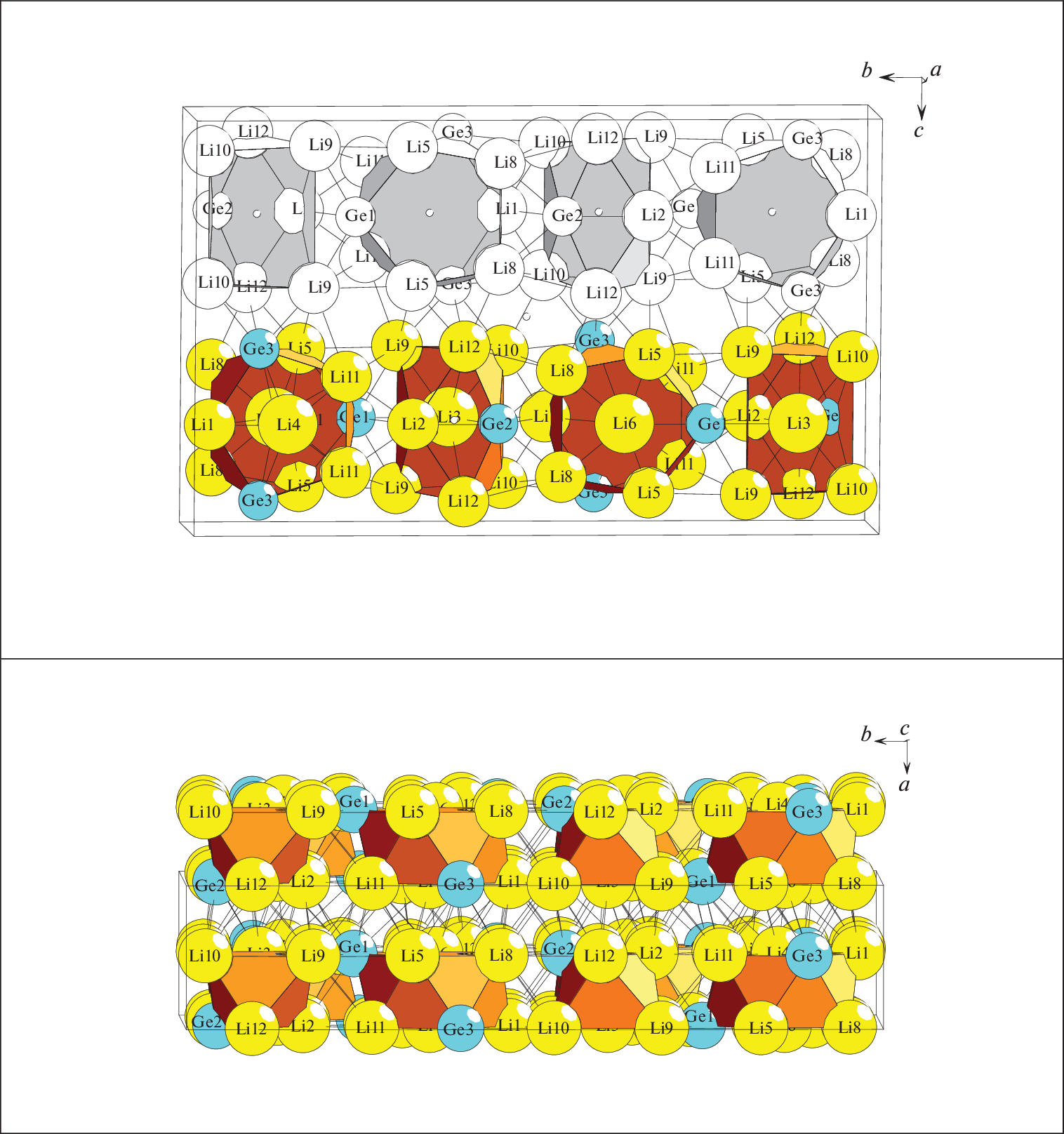

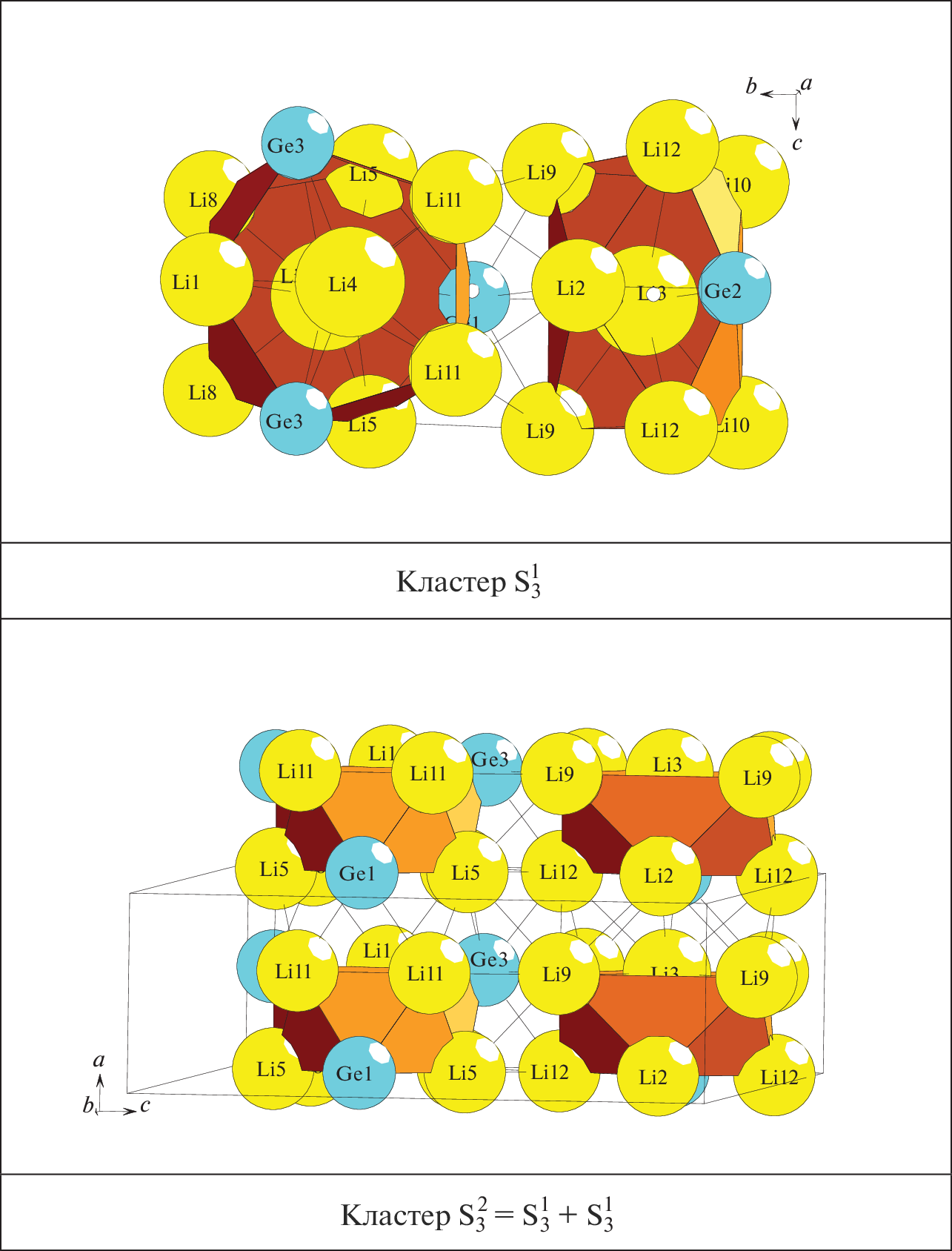

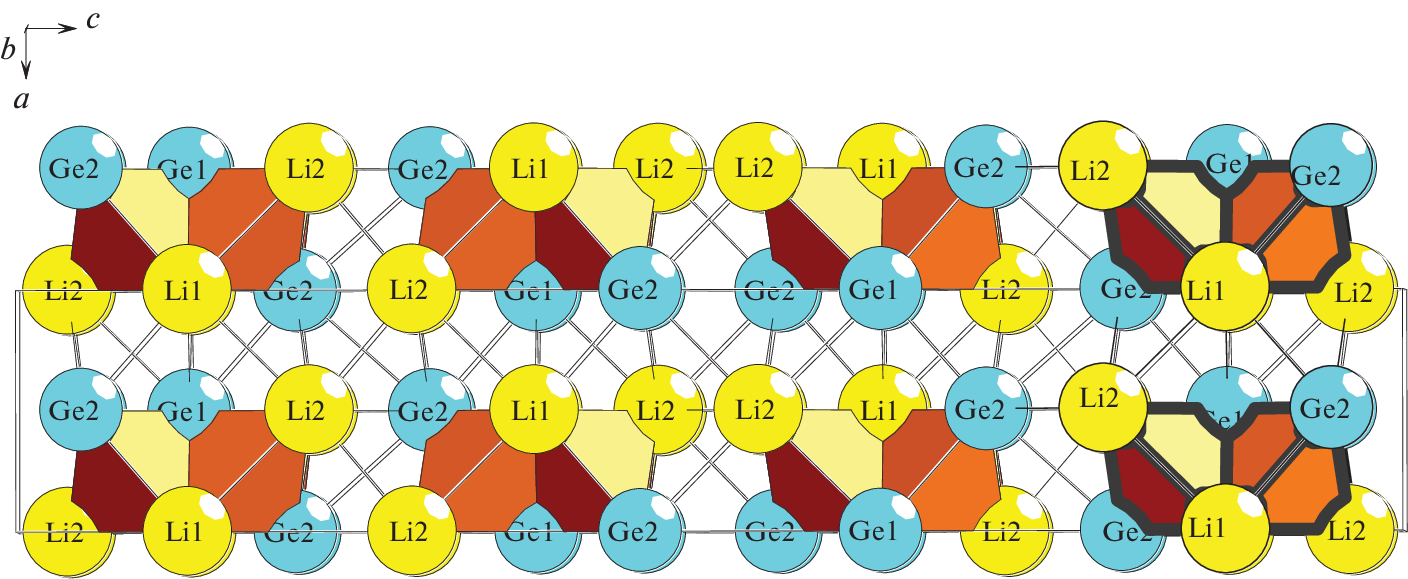

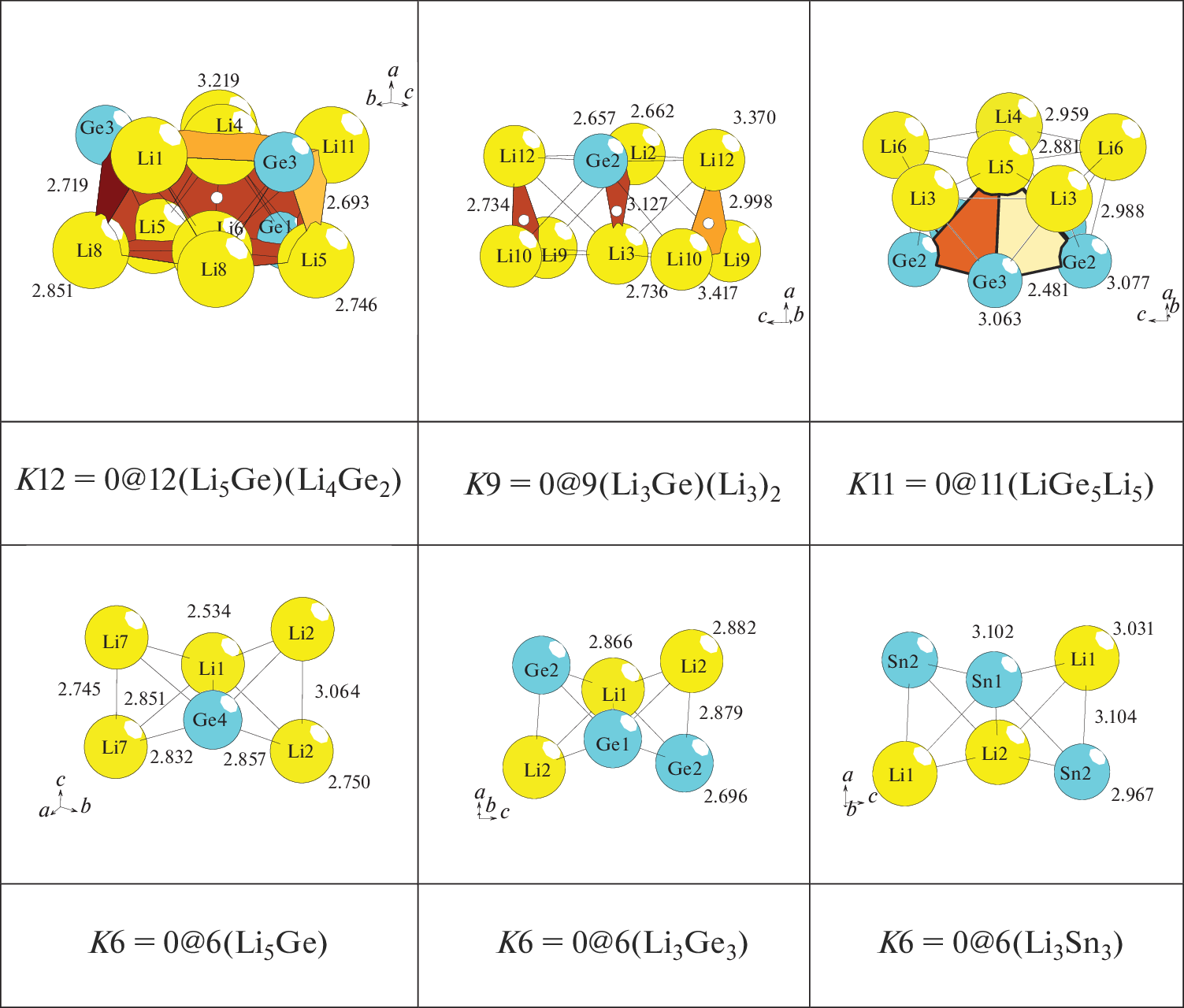

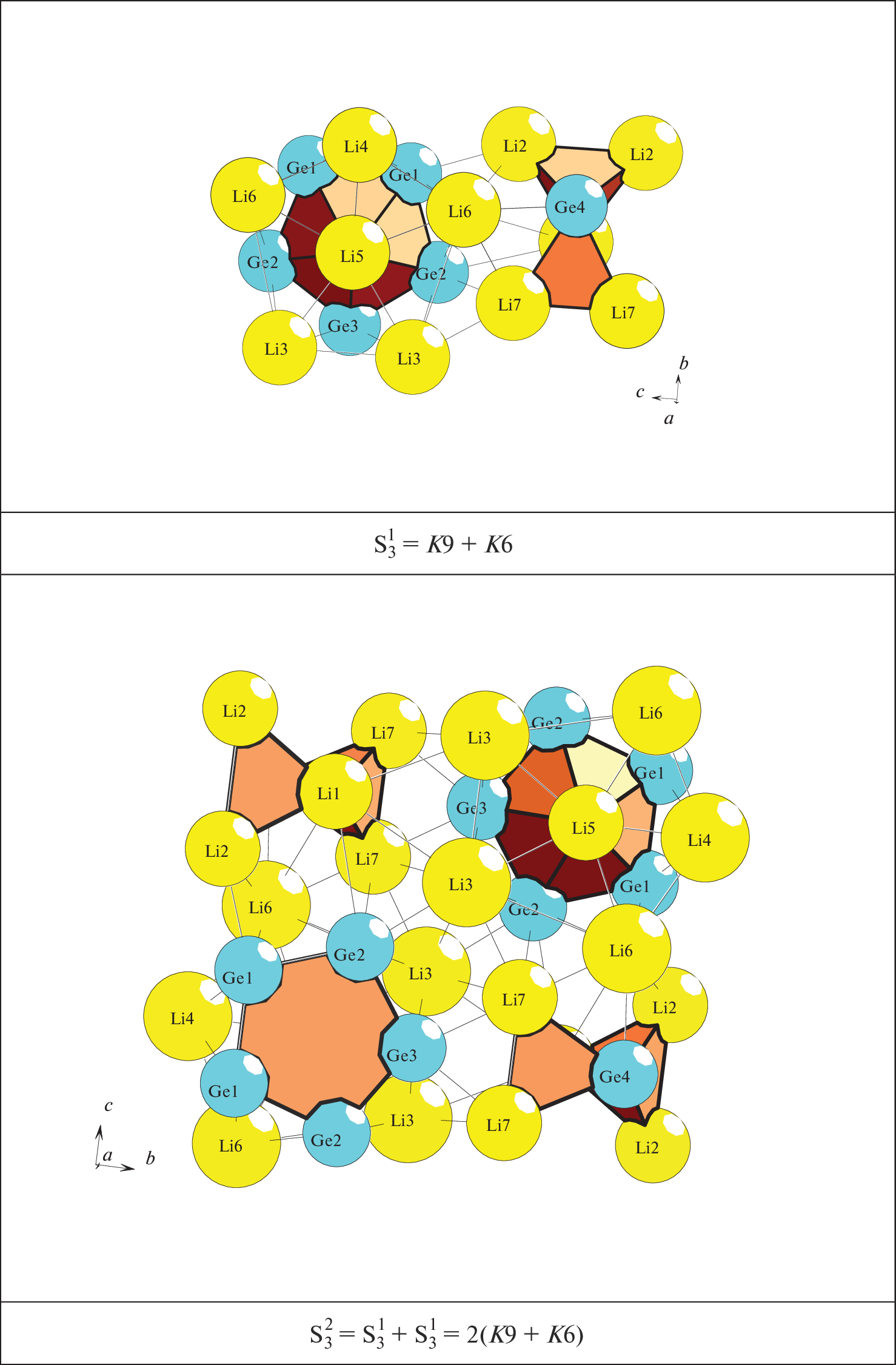

A geometric and topological analysis of the crystal structures of Li68Ge16-oC84 (a = 4.551 Å, b = 22.086 Å, c = 13.275 Å, V = 13.275 Å3, Cmcm), Li44Ge24-oC68 (a = 4.380 Å, b = 24.550 Å, c = 10.540 Å, V = 1144.11 Å3, Cmcm), and Li12Ge12-tI24 (a = b = 4.053 Å, c = 23.282 Å3, I41/amd) intermetallic compounds is carried out. For the Li68Ge16-oC84 intermetallic compound, two new frame-forming clusters are found: K12 = 0@12(Li9Ge3) with symmetry m in the form of linked 5-rings Li3Ge2 and Li4Ge, with the Li atoms located in the center of the 5th rings, and K9 = 0@9(Li3Ge)(Li3)2 with symmetry m in the form of linked 3рrings (Li3)(GeLi2)(Li3). For the Li44Ge24-oC68 intermetallic compound, two new frame-forming clusters are established: K11 = 0@11(LiLi5)(Ge5) with symmetry m in the form of 5-ring Ge5 (lying at the base of the pyramid), which are coupled with the 5-atoms of Li, lying in the same plane with the Li atom (top of the pyramid) and K6 = 0@6(GeLi5) with symmetry m in the form of double tetrahedra Li3Ge having a common edge LiGe. For the Li12Ge12-tI24 intermetallic compound, the frame-forming cluster K6 = 0@6(Ge3Li3) with symmetry 2 is found in the form of double tetrahedra Li2Ge2 having a common edge LiGe. The symmetry and topological code of the processes of self-assembly of Li68Ge16-oC84, Li44Ge24-oC68, and Li12Ge12-tI24 crystal structures of cluster-precursors are reconstructed in the following form: primary chain → layer → framework.
