Superthin Basalt Fiber as the Base of a Matrix of the Fire-Resistant Filling of Deformation Joints in Building Structures

V. A. Prusakov; Прусаков В. А.; M. V.  Gravit; Гравит М. В.; Ya. B. Simonenko; Симоненко Я. Б.

doi:10.31857/S0132665122600522

Superthin Basalt Fiber as the Base of a Matrix of the Fire-Resistant Filling of Deformation Joints in Building Structures

Authors: Prusakov V.A.¹, Gravit M.V.², Simonenko Y.B.²
Affiliations:
1. St. Petersburg Polytechnic University
2. Компания “НПК ПРОМИЗОЛ”
Issue: Vol 49, No 1 (2023)
Pages: 89-96
Section: Articles
URL: https://journal-vniispk.ru/0132-6651/article/view/139317
DOI: https://doi.org/10.31857/S0132665122600522
EDN: https://elibrary.ru/CGNYAH
ID: 139317

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

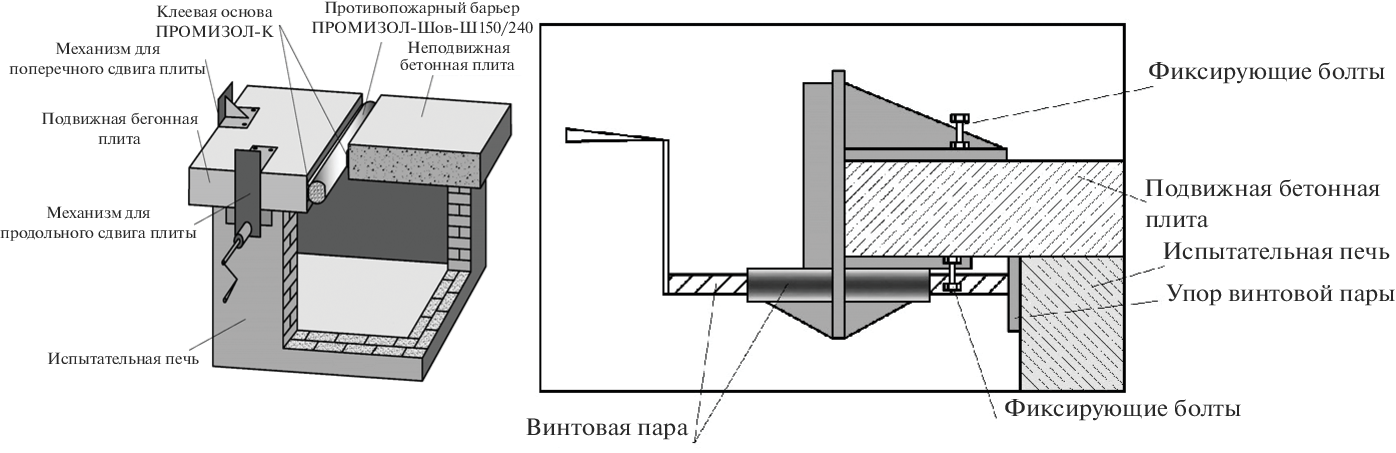

This article investigates the fire resistance of a structure with a fire barrier based on super-thin basalt fiber for the fire-resistant sealing of joints in reinforced concrete structures under conditions of alternating deformation. In European regulations, such fire barriers are specifically designed for use in expansion joints and operate in the compression, tension, and shear of the joint. In Russia, products and materials that perform the function of a fire barrier are not tested under conditions of alternating load. This article presents a test method for fire resistance for an expansion joint in a reinforced concrete structure. The results are obtained on the parameters of integrity (E) and heat-insulating capacity (I) for reinforced concrete slabs, followed by an increase in the width of the gap between the slabs and their shift relative to each other by +25% of at least 245 min.

Keywords

fire safety, fire resistance, building structures, expansion joint, basalt superthin fiber

References

Prusakov V., Gravit M., Simonenko Ya., Minnullina A. and Artyukhina A., Fire retardant for expansion and linear joints in buildings and tunnels, MATEC Web of Conferences. 2018. V. 239. P. 05010.
Habimana J., Showbary R., Bienefelt J. In-situ fire test for the design of passive protection for the lafontaine tunnel // North American Tunneling Conference, NAT 2018. 2018. V. 1. P. 251–258.
Zhao P., Yuan Z., Yu N. Effect of Extraction Vent Length on Critical Exhaust Volumetric Flow Rate in Long-distance Subway Tunnel Fires with Two-point Extraction Ventilation // 2019 9th International Conference on Fire Science and Fire Protection Engineering, ICFSFPE 2019. 2019.
Cheng X., Shi Z., Nguyen K., Zhang L., Zhou Y., Zhang G., Wang J., Shi L. Solar chimney in tunnel considering energy-saving and fire safety // Energy. 2020. 210.
Shah D., Shah J. Comparative study of fire-resistant design of steel structures as per IS800:2007, AS4100:1998, AISC360:2010 and EN1993-1-2. Lecture Notes in Civil Engineering. 2019. V. 11. P. 289–301.
Yao Y., Cheng X., Zhang S., Zhu K., Zhang H., Shi L. Maximum smoke temperature beneath the ceiling in an enclosed channel with different fire locations // Applied Thermal Engineering. 2017. V. 111. P. 30–38.
Gunnarshaug A., Metallinou M.M., Log T. Study of industrial grade thermal insulation at elevated temperatures // Materials. 2020. V. 13(20). 4613. P. 1–16.
Nekora O., Slovynsky V., Pozdieiev S. The research of bearing capacity of reinforced concrete beam with use combined experimental-computational method // MATEC Web of Conferences. 2017. 116.
Sakkas K.M., Vagiokas N., Panias M., Panias D. Passive fire protection for road tunnel structures. Tunnels and Underground Cities: Engineering and Innovation meet Archaeology, Architecture and Art- Proceedings of the WTC 2019 ITA-AITES World Tunnel Congress. 2019. P. 3005–3009.
Tomar M., Khurana S., Singh R. Behaviour of tunnel lining material in road tunnel fire // IOP Conference Series: Materials Science and Engineering. 2018. 346(1).
Tomar M.S., Khurana S. A numerical study on the influence of different tunnel lining insulation materials in a road tunnel fire // Materials Today: Proceedings. 2019. V. 28. P. 665–671.
Omar F., Osman S.A., Mutalib A. Nano-silica as the go material on heat resistant tunnel lining // IOP Conference Series: Materials Science and Engineering. 2018. 342(1).
Wang F., Wang M., Huo J. The effects of the passive fire protection layer on the behavior of concrete tunnel linings: A field fire testing study // Tunnelling and Underground Space Technology. 2017. V. 69. P. 162–170.
Maevski I., Chen N., Li Y., Klein R. Can the fixed fire-fighting system protect tunnel final lining in case of a major fire event. 17th International Symposium on Aerodynamics, Ventilation and Fire in Tunnels 2017, ISAVFT 2017. 2017. P. 263–274.
Chen W.-P.N. Recent passive fire protection strategies for US highway tunnels. North American Tunneling Conference, NAT 2018. 2018. V. 1. P. 267–278.
Zhang L., Wu X., Liu M., Liu W., Ashuri B. Discovering worst fire scenarios in subway stations: A simulation approach // Automation in Construction. 2019. V. 99. P. 183–196.
Zhang Y., Zhou C., Xie H., Zhang Y. Structure Optimization and Flame Barrier Performance Evaluation of Barrier Explosion-Proof Materials Based on FLACS // Chemistry Select. 2020. V. 5(16). P. 4947–4960.
Prusakov V.A., Gravit M.V., Timofeev N.S., Simonenko Ya.B., Gutorov K.V., Shevchenko A.M.K.S. Fire retardant coating for expansion and linear joints in buildings. Pozharovzryvobezopasnost // Fire and Explosion Safety. 2018. V. 27. № 2–3. P. 45–56 (in Russian).
Официальный сайт Batis company. Режим доступа: http://batis.ru/
Моделирование деформационного шва в ПК ELCUT. Режим доступа: https://elcut.ru/advanced/building_joint_firestop_r.htm
