Improvement of Methods for Studying the Electrophysicala Viscous Properties of Liquids

E. S. Shamsutdinova; Шамсутдинова Е. С.; V. I. Anisimkin; Анисимкин В. И.; A. S. Fionov; Фионов А. С.; A. V.  Smirnov; Смирнов А. В.; V. V. Kolesov; Колесов В. В.; I. E. Kuznetsova; Кузнецова И. Е.

doi:10.31857/S0320791922600238

Improvement of Methods for Studying the Electrophysicala Viscous Properties of Liquids

Authors: Shamsutdinova E.S.¹, Anisimkin V.I.¹, Fionov A.S.¹, Smirnov A.V.¹, Kolesov V.V.¹, Kuznetsova I.E.¹
Affiliations:
1. Kotelnikov Institute of Radio Engineering and Electronics, Russian Academy of Sciences, 125009, Moscow, Russia
Issue: Vol 69, No 1 (2023)
Pages: 56-62
Section: ФИЗИЧЕСКАЯ АКУСТИКА
URL: https://journal-vniispk.ru/0320-7919/article/view/134377
DOI: https://doi.org/10.31857/S0320791922600238
EDN: https://elibrary.ru/DAGBJL
ID: 134377

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

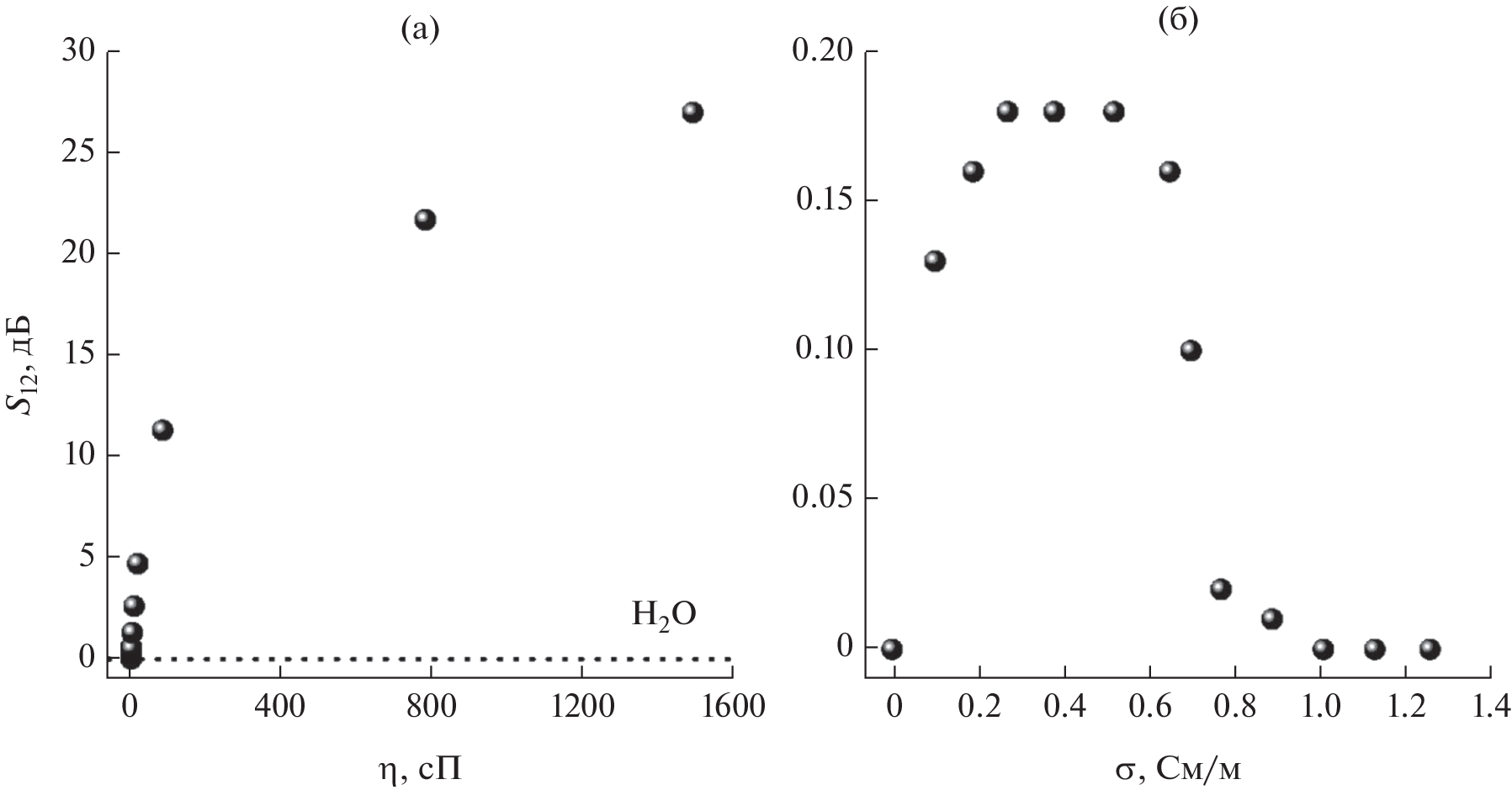

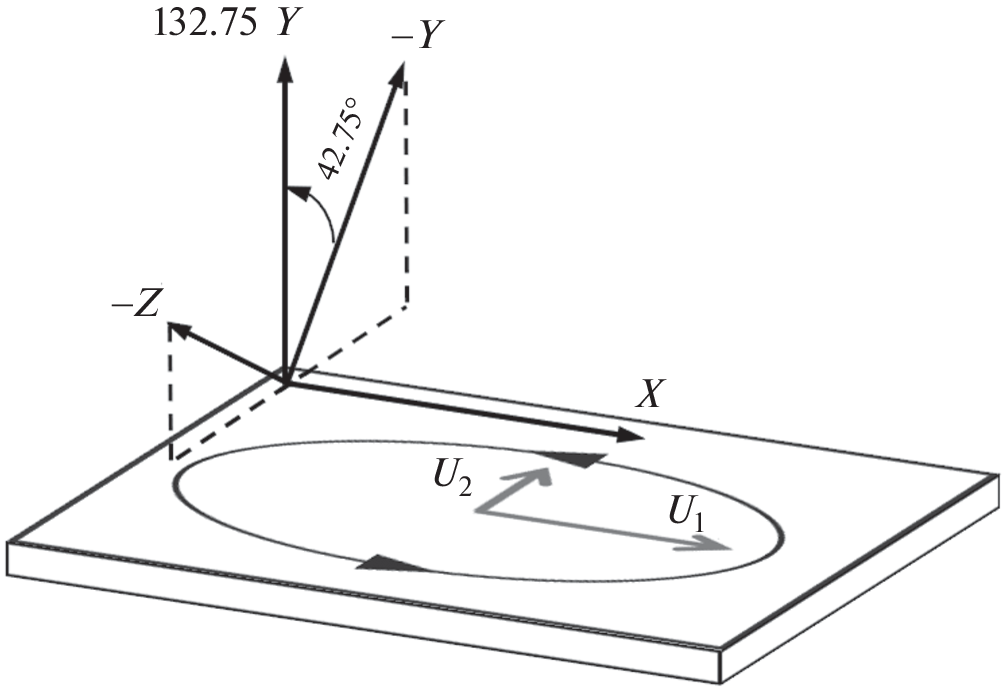

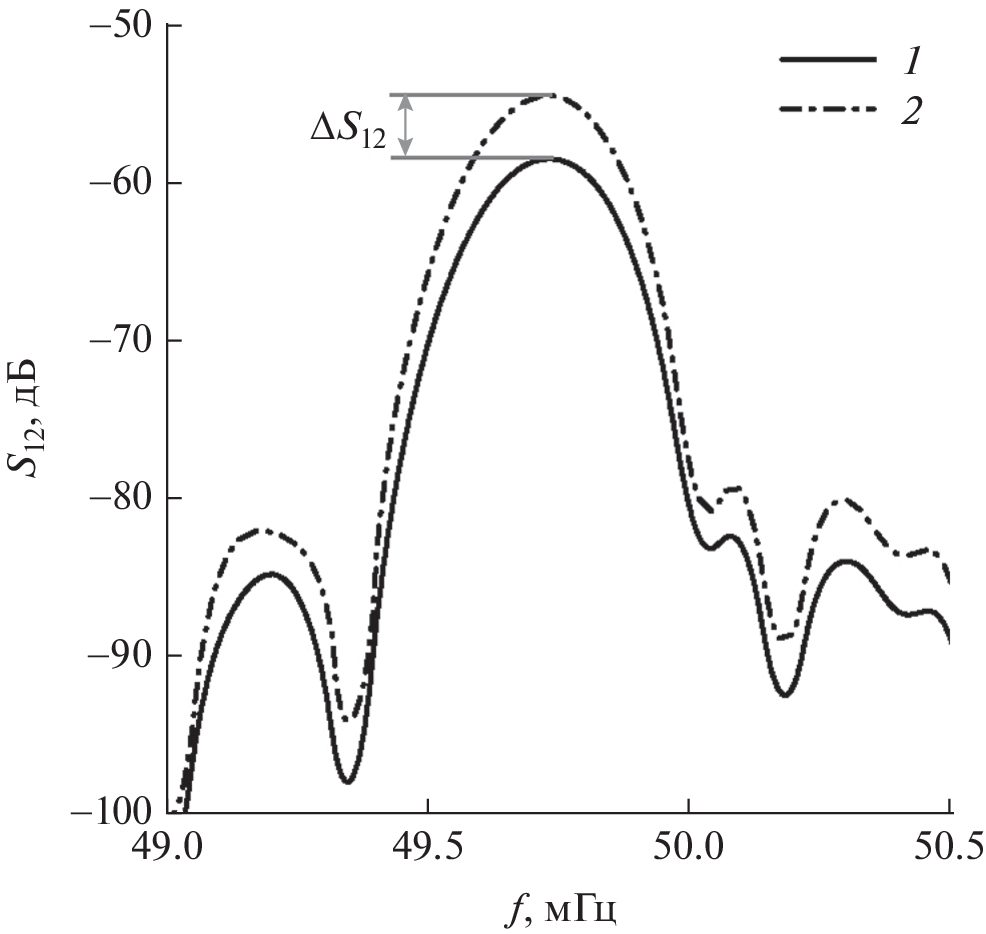

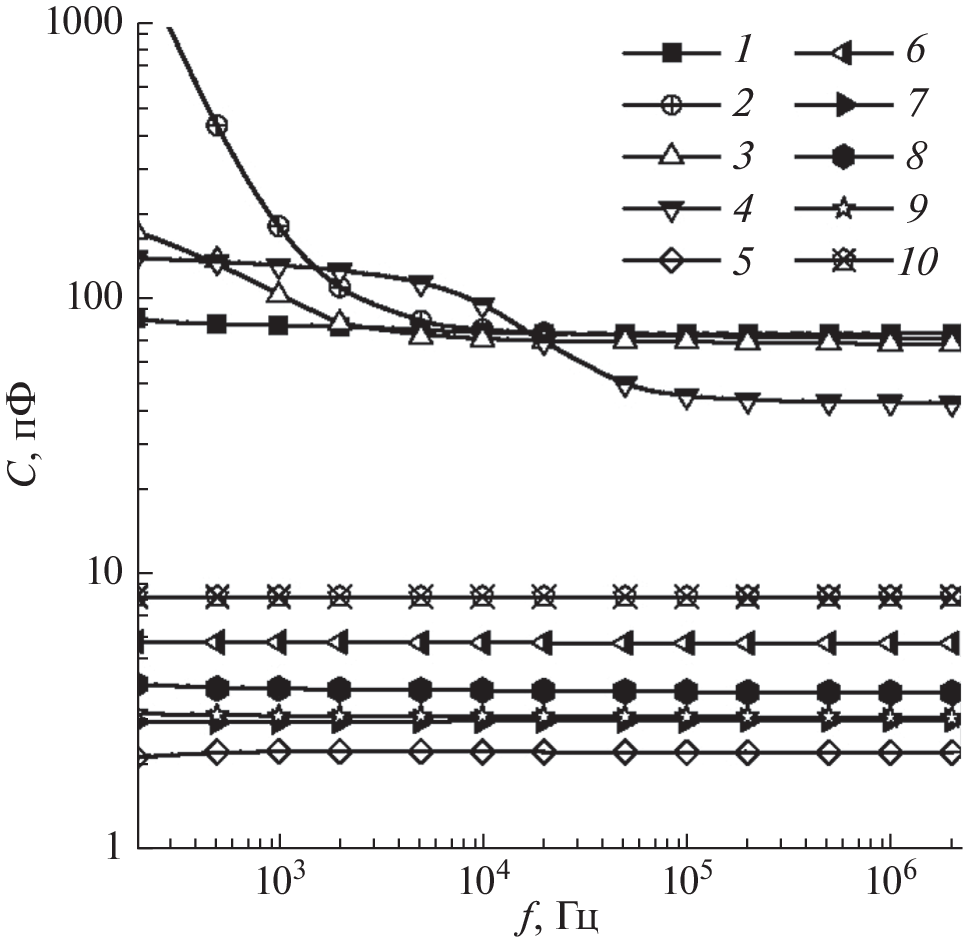

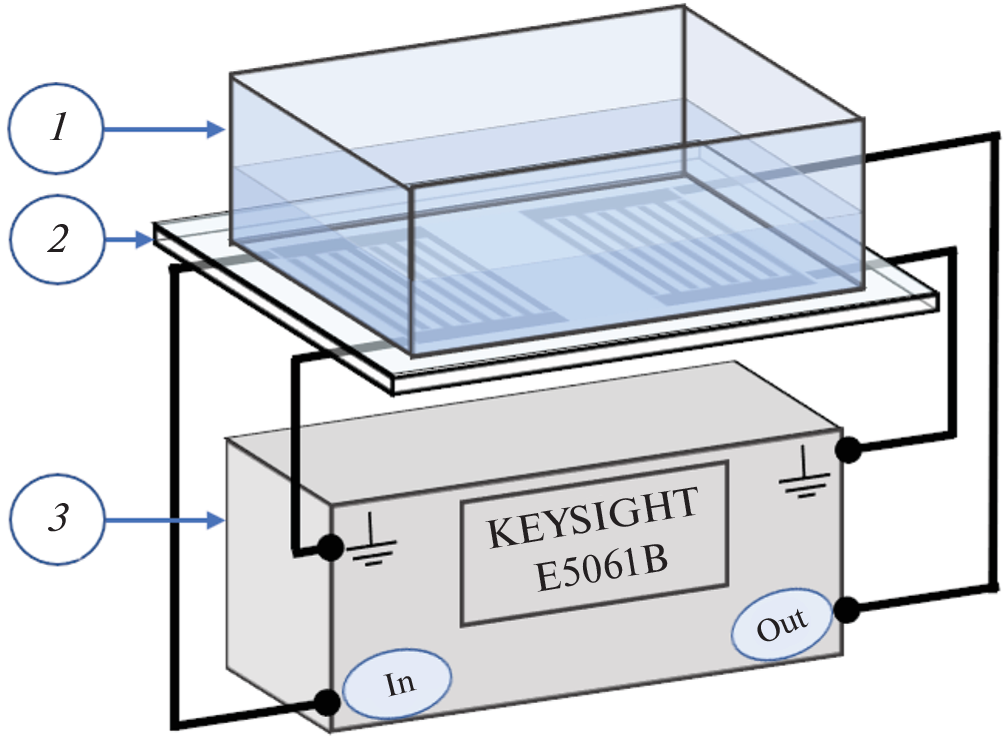

To control the physical properties of polar and nonpolar liquid media, the parameters of model systems based on paraffin and silicone oils, as well as glycerin, were measured using electrophysical and acoustoelectric methods. Electrophysical studies were performed with an Agilent E4980A LCR meter and a measuring cell consisting of an Eppendorf tube and two coaxial nickel electrodes forming a cylindrical capacitor. The permittivity of the liquid was determined from the formula for the capacitor. For the acoustic part of the problem, ST,X-quartz was used as the piezoelectric plate, on which a fluoroplastic cell for liquid was placed. The measurements were carried out in three stages: measurement of the phase and amplitude of the acoustic wave (i) without contact with the liquid, (ii) in contact with a pure test liquid, and (iii) in contact with the test liquid with a filler. Microparticles of pharmaceutical activated carbon and the surfactant sorbitan monooleate were used as fillers. The viscosity of the suspensions was determined from the difference between the attenuation of an acoustic wave in the presence of the pure liquid and liquid with filler.

Keywords

viscosity of liquids, electrical conductivity of liquids, acoustic delay line, liquid properties sensor

References

Das S.K., Choi S.U.S., Yu W.H., Pradeep T. Nanofluids: science and technology. John Wiley & Sons, 2007.
Zhu F., Wang B., Qian Z., Kuznetsova I., Ma T. Influence of surface conductivity on dispersion curves, mode shapes, stress, and potential for Lamb waves propagating in piezoelectric plate // IEEE Trans. on Ultrason. Ferroelectr. Freq. Control. 2019. V. 67. № 4. P. 855–862. https://doi.org/10.1109/TUFFC.2019.2954745
Borodina I.A., Zaitsev B.D., Teplykh A.A. Effect of the conductivity of a thin film located near the acoustic delay line on the characteristics of propagating SH0 wave // Ultrasonics. 2018. V. 91. P. 62–67. https://doi.org/10.1016/j.ultras.2018.07.017
Croenne C., Vasseur J.O., Matar O.B., Hladky-Hennion A.C., Dubus B. Non-reciprocal behavior of one-dimensional piezoelectric structures with space-time modulated electrical boundary conditions // J. Appl. Phys. V. 126. № 14. https://doi.org/10.1063/1.5110869
Filipiak J., Marc P. Surface acoustic wave vibration sensor as a seismometer // Sens. Actuators A. V. 323. 112653. https://doi.org/10.1016/j.sna.2021.112653
Джоши С.Г., Зайцев Б.Д., Кузнецова И.Е., Кузнецова А.С. Гравиметрическая чувствительность акустических волн в пьезоэлектрических пластинах // Радиотехника и электроника. 2005. Т. 50. № 6. С. 707–711.
Казаков Л.И. О распространении звука в дисперсных средах // Акуст. журн. 2018. Т. 64. № 3. С. 330–341. https://doi.org/10.7868/S0320791918030097
Guo F.L., Sun R. Propagation of Bleustein–Gulyaev wave in 6 mm piezoelectric materials loaded with viscous liquid // Int. J. Solids and Structures. 2008. V. 45. № 13. P. 3699–3710. https://doi.org/10.1016/j.ijsolstr.2007.09.018
Kobayashi S., Kondoh J. Feasibility study on shear horizontal surface acoustic wave sensors for engine oil evaluation // Sensors. V. 20. № 8. 2184. https://doi.org/10.3390/s20082184
Казаков Л.И. Резино-жидкостный резонатор // Акуст. журн. 2020. Т. 66. № 4. С. 357–365. https://doi.org/10.31857/S0320791920020033
Wang W.Y., Zhang C., Zhang Z.T., Liu Y., Feng G.P. Three operation modes of lateral-field-excited piezoelectric devices // Appl. Phys. Lett. 2008. V. 93. № 24. 242906. https://doi.org/10.1063/1.3050538
Qin L.F., Chen Q.M., Cheng H.B., Chen Q., Li J.F., Wang Q.M. Viscosity sensor using ZnO and AlN thin film bulk acoustic resonators with tilted polar c-axis orientations // J. Appl. Phys. 2011. V. 110. № 9. 094511. https://doi.org/10.1063/1.3657781
Анисимкин А.В., Покусаев Б.Г., Складнев Д.А., Сорокин В.В., Тюпа Д.В. Применение акустоэлектронной методики для исследования упорядоченных микроструктурированных дисперсных систем с биологическими объектами, включенными в гидрогель // Акуст. журн. 2016. Т. 62. №. 6. С. 738–743. https://doi.org/10.7868/S0320791916060010
Минаков А.В., Пряжников М.И., Дамдинов Б.Б., Немцев И.В. Исследование объемной вязкости наносуспензий методом акустической спектроскопии // Акуст. журн. 2022. Т. 68. №. 2. С. 182–189. https://doi.org/10.31857/S0320791922020058
Kondoh J., Nakayama K., Kuznetsova I. Study of frequency dependence of shear horizontal surface acoustic wave sensor for engine oil measurements // Sens. Actuators A. V. 325. 112503. https://doi.org/10.1016/j.sna.2020.112503
Ахметов Б.Р., Вахин А.В. О некоторых характеристиках затухания ультразвука в суспензиях высокомолекулярных компонентов нефти // Акуст. журн. 2018. Т. 64. № 5. С. 566–571. https://doi.org/10.1134/S0320791918050015
Tomchenko M.D. Acoustic modes in He I and He II in the presence of an alternating electric field // J. Low Temp. Phys. V. 46. № 5. P. 490–501. https://doi.org/10.1063/10.0001053
Zaitsev B.D., Teplykh A.A., Borodina I.A., Kuznetsova I.E., Verona E. Gasoline sensor based on piezoelectric lateral electric field excited resonator // Ultrasonics. V. 80. P. 96–100. https://doi.org/10.1016/j.ultras.2017.05.003
Kuznetsova I.E., Zaitsev B.D., Seleznev E.P., Verona E. Gasoline identifier based on SH0 plate acoustic waves // Ultrasonics. V. 70. P. 34–37. https://doi.org/10.1016/j.ultras.2016.04.016
Pu Y.Y., O’Shea N., Hogan S.A., Tobin J.T. Assessment of a solid-state bulk acoustic wave sensor to measure viscosity of Newtonian and Non-Newtonian fluids under static and flow conditions // J. Food Eng. T. 277. https://doi.org/10.1016/j.jfoodeng.2020.109917
Ахадов Я.Ю. Диэлектрические свойства чистых жидкостей. М.: Изд-во МАИ, 1999. 854 с.
Dukhin A.S., Goetz P.J. How non-ionic “electrically neutral” surfactants enhance electrical conductivity and ion stability in non-polar liquids // J. Electroanal. Chem. 2006. V. 588. № 1. P. 44–50. https://doi.org/10.1016/j.jelechem.2005.12.001
Guo Q., Singh V., Behrens S.H. Electric charging in nonpolar liquids because of nonionizable surfactants // Langmuir. 2010. V. 26. №. 5. P. 3203–3207. https://doi.org/10.1021/la903182e
Chattopadhyay A., Dhar P. Dielectric relaxation behaviors and dissipation characteristics of colloidal nanocarbon (graphene and CNTs) complex fluids // J. Appl. Phys. 2019. V. 125. № 3. P. 034103. https://doi.org/10.1063/1.5079327
Anisimkin V.I., Voronova N.V. New modification of the acoustic Lamb waves and its application for liquid and ice sensing // Ultrasonics. 2021. V. 116. 106496. https://doi.org/10.1016/j.ultras.2021.106496
Weast R.C., Astle M.J., Beyer W.H. Chemical Rubber Company Handbook of Chemistry and Physics, 66th ed. Chemical Rubber. Boca Raton. FL. 1985. P. D232.
