Sound Generation by Metro Trains during Braking and Its Suppression Method

S. G. Suchkov; Сучков С. Г.; V. Ya. Yavchunovsky; Явчуновский В. Я.; A. I. Timofeev; Тимофеев А. И.; V. A. Nikolaevtsev; Николаевцев В. А.; D. S. Suchkov; Сучков Д. С.; V. V. Tretinnikov; Третинников В. В.

doi:10.31857/S0320791923600191

Sound Generation by Metro Trains during Braking and Its Suppression Method

Авторлар: Suchkov S.G.¹, Yavchunovsky V.Y.², Timofeev A.I.², Nikolaevtsev V.A.¹, Suchkov D.S.¹, Tretinnikov V.V.²
Мекемелер:
1. Saratov State University, 410012, Saratov, Russia
2. SPC Etna Plus, 410040, Saratov, Russia
Шығарылым: Том 69, № 3 (2023)
Беттер: 367-373
Бөлім: АКУСТИЧЕСКАЯ ЭКОЛОГИЯ. ШУМЫ И ВИБРАЦИЯ
URL: https://journal-vniispk.ru/0320-7919/article/view/134446
DOI: https://doi.org/10.31857/S0320791923600191
EDN: https://elibrary.ru/QRSQLX
ID: 134446

Дәйексөз келтіру

Толық мәтін

Ашық рұқсат
Рұқсат жабық

Рұқсат берілді
Рұқсат жабық

Тек жазылушылар үшін

Аннотация
Авторлар туралы
Әдебиет тізімі
Қосымша файлдар
Статистика

Аннотация

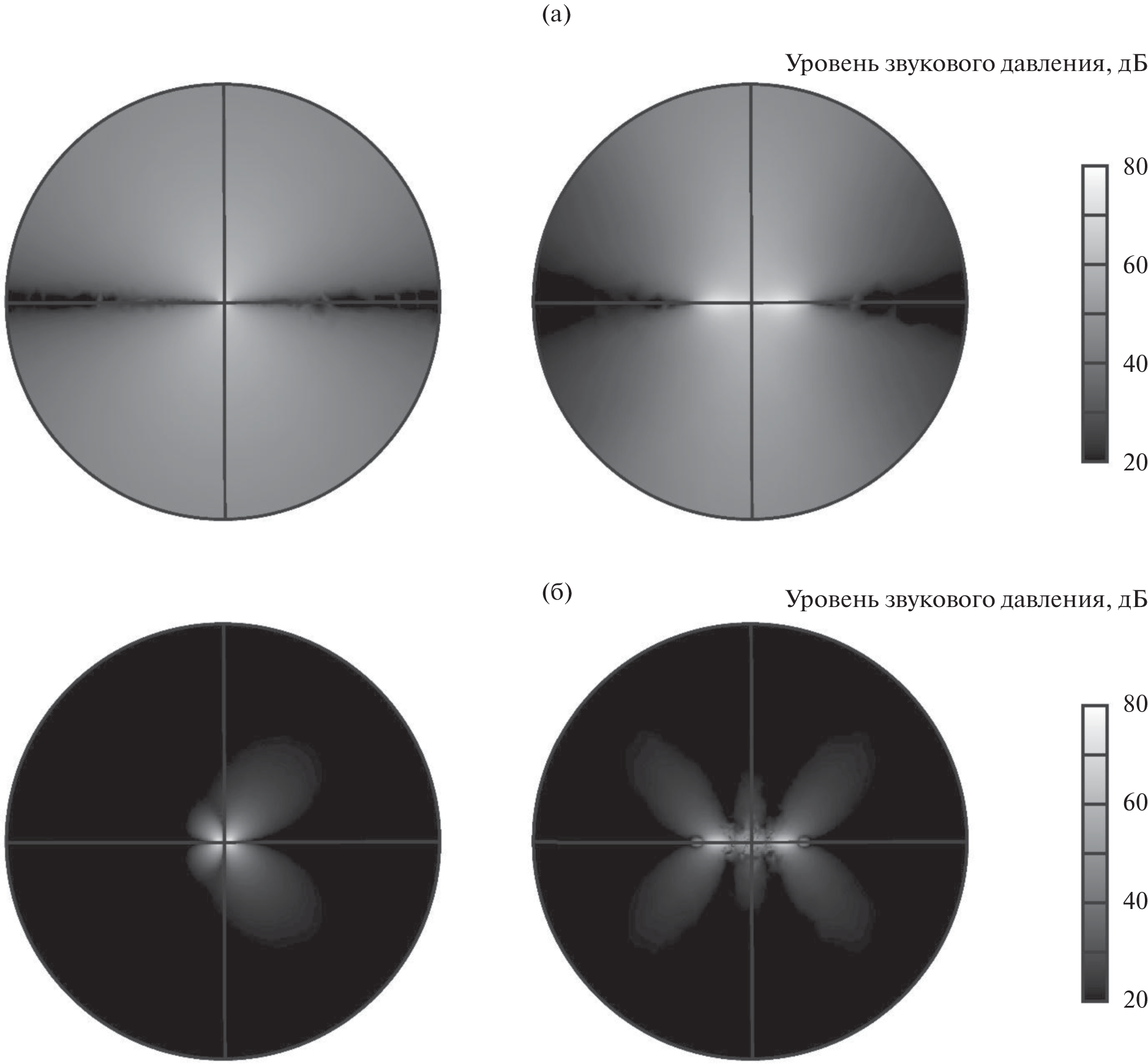

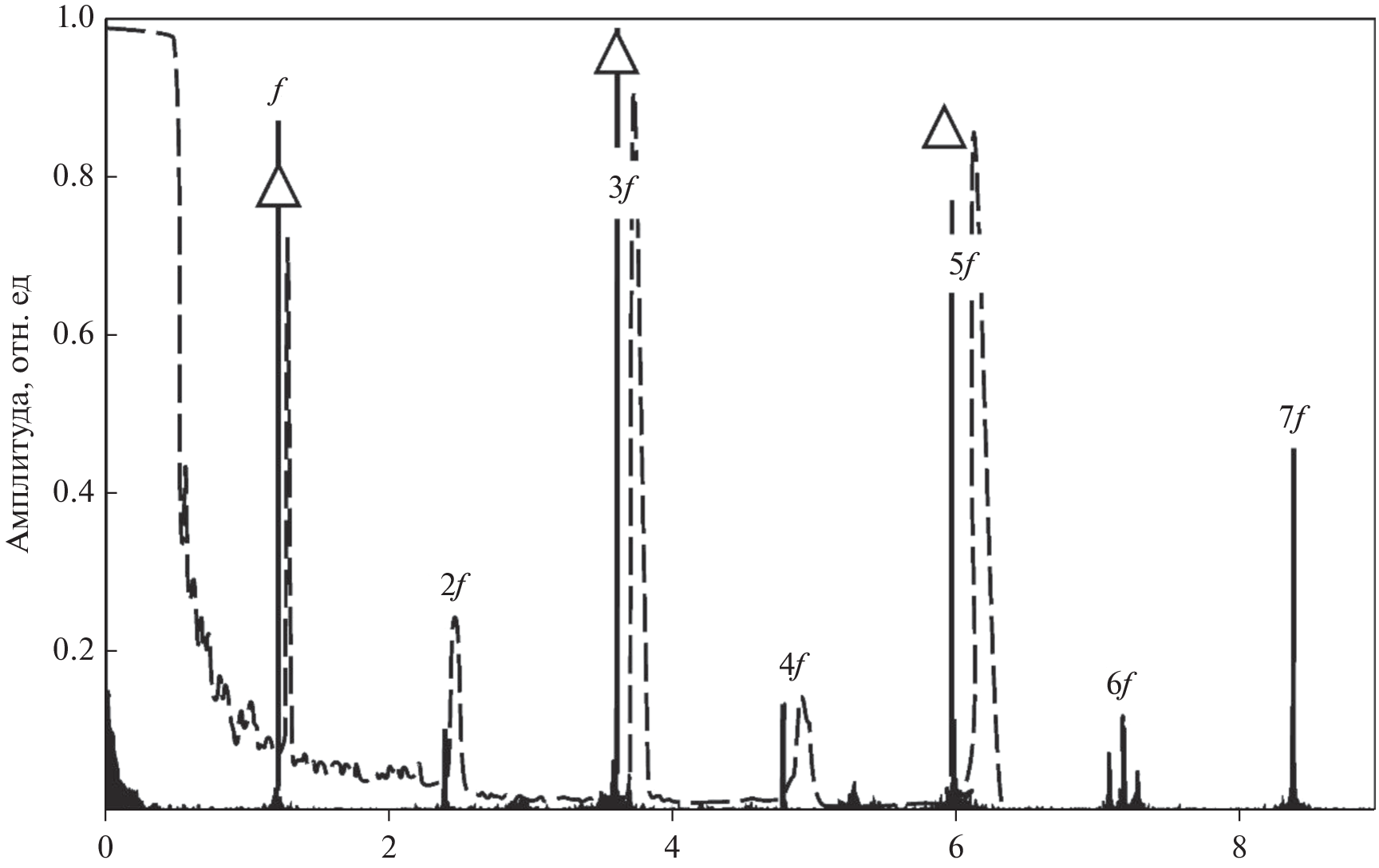

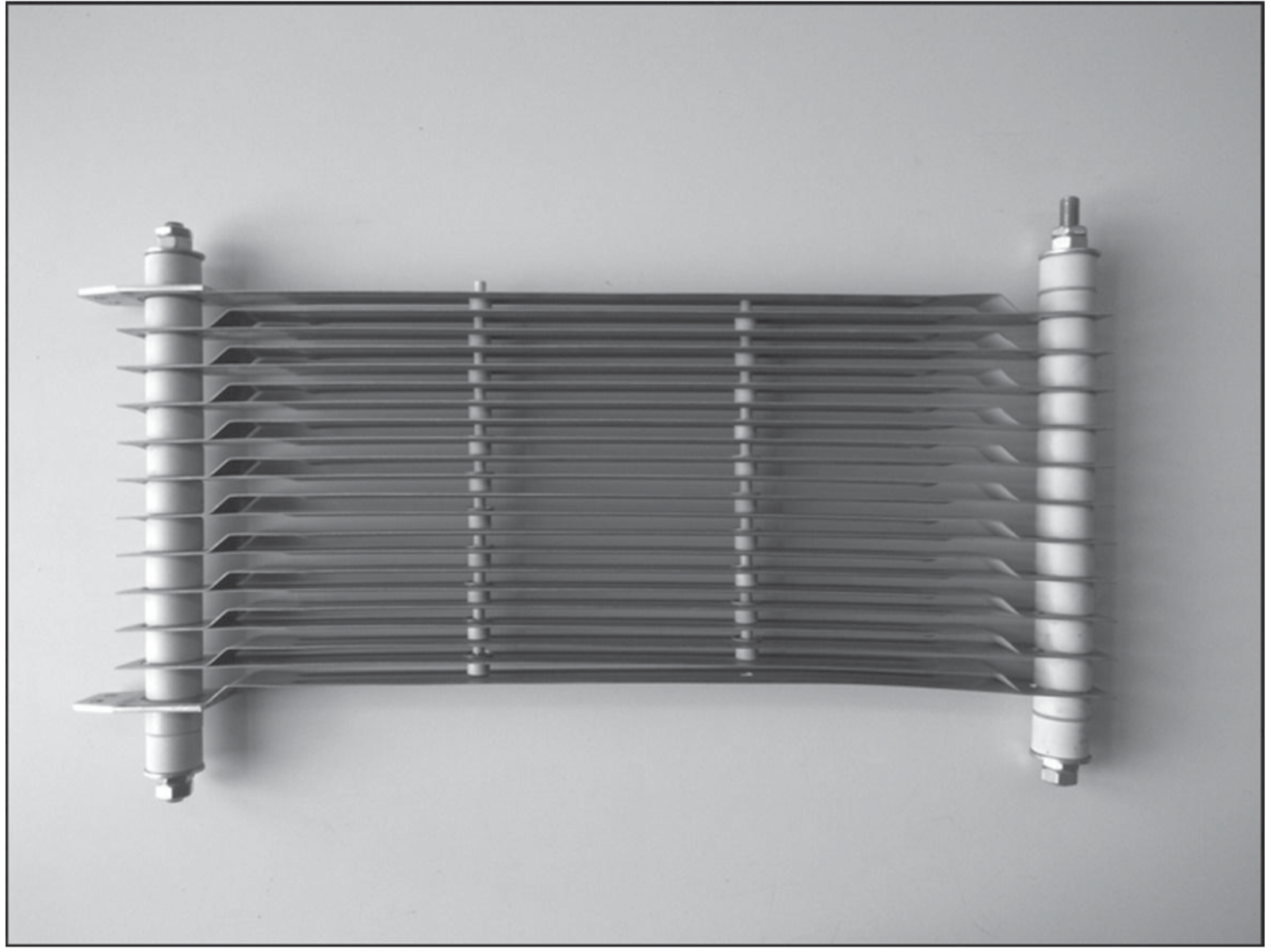

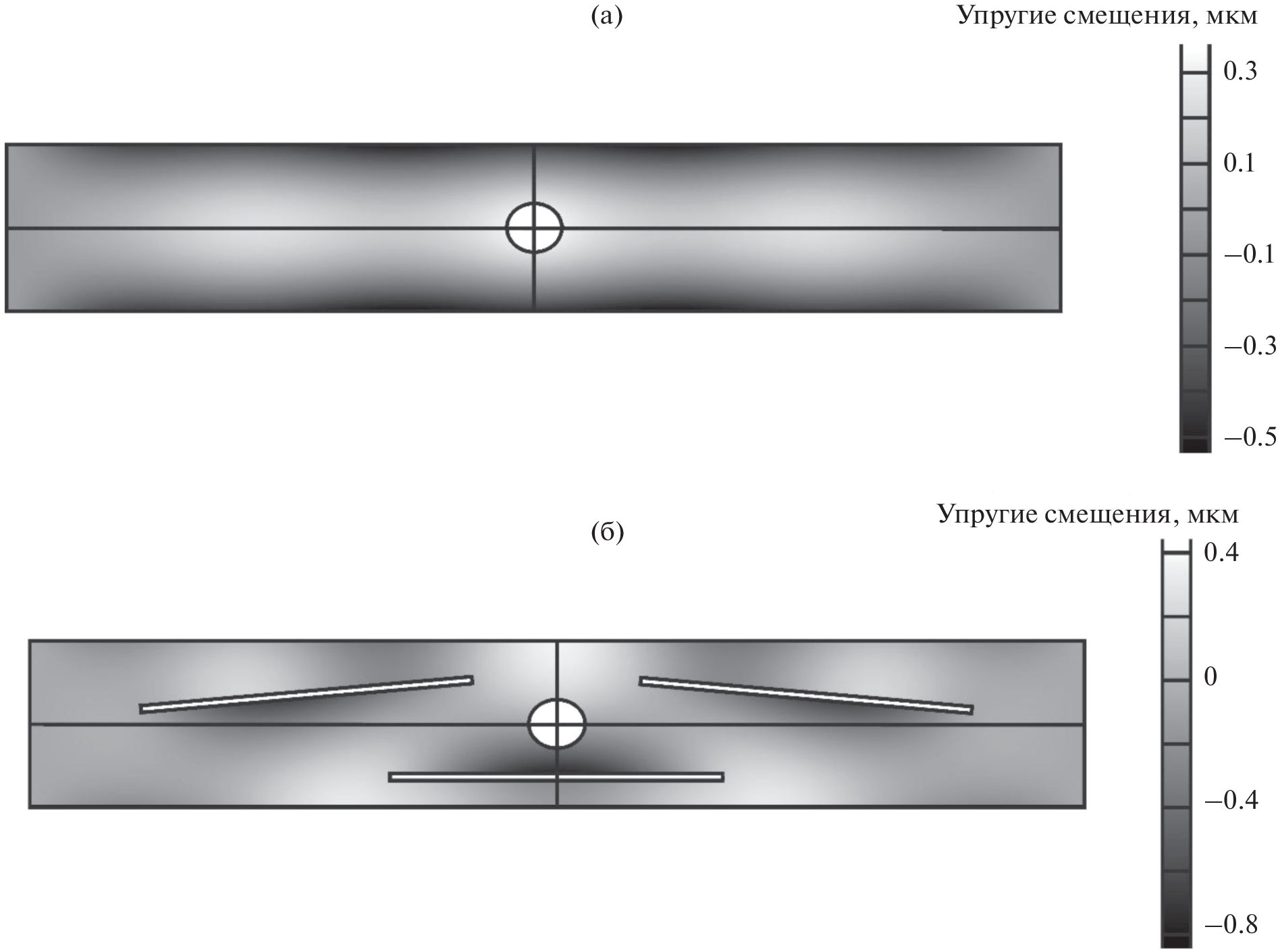

The causes of acoustic noise occurring during braking of electric vehicles, in particular, in the metro, were analyzed. The spectrum of such noise was measured, and it is shown that high-frequency discrete tones are excited by braking resistors, applied for electrodynamic braking of electric vehicles. Three proposed mechanisms of electromechanical interaction in a Fecral plate, which is a braking resistor element, were considered: the Ampère force and linear and nonlinear magnetostriction. It was shown that predominant odd harmonics indicate the presence of a significant piezomagnetic effect and the inverse effect of linear magnetostriction in the Fecral alloy. A phenomenological approach was used to calculate the piezomagnetic tensor elements for Fecral. Calculations by the finite element method showed that asymmetric cuts introduced into the plate may significantly decrease intensity of acoustic vibrations excited by the braking resistor.

Негізгі сөздер

braking resistor, acoustic noise, piezomagnetic effect, magnetostriction, Ampère force, Fecral

Әдебиет тізімі

Комплект электрооборудования асинхронного тягового привода вагонов метрополитена КАТП-4: Руководство по эксплуатации 7651.39.00.001 РЭ, 2018. 274 с.
Каталог фирмы Avek Global (URL: https://avglob.org/spiral-fehral-h23yu5t.html. Дата обращения 18.03.2023 г.)
Тимофеев А.И., Машков И.В., Корнев И.А., Соколов М.А., Бессонова Н.С. Силовой резистор // Патент России № 2685224C1. 2019. Бюл. № 11.
Гоноровский И.С. Радиотехнические цепи и сигналы. М.: Радио и связь, 1986. 512 с.
Fletcher H., Munson W.A. Loudness, its definition, measurement and calculation // J. Acoust. Soc. Am. 1933. V. 5. № 5. P. 82–108. https://doi.org/10.1002/j.1538-7305.1933.tb00403.x
Ландау Л.Д., Лифшиц Е.М. Теоретическая физика: Электродинамика сплошных сред. М.: Наука, 1982. 621 с.
Davino D., Giustiniani A., Visone C., Adly A. Experimental analysis of vibrations damping due to magnetostrictive based energy harvesting // J. Appl. Phys. 2011. V. 109. № 7. 07E509. https://doi.org/10.1063/1.3545798
Colussia M., Bertoa F., Morib K., Naritac F. Strain Energy Density Based Assessment of Cracked Terfenol-D Specimens Under Magnetic Field and Different Loading Rates // Procedia Structural Integrity. 2016. V. 2. P. 1837–1844. https://doi.org/10.1016/j.prostr.2016.06.231
Balke H., Suchaneck G. Commentary: On the linear coupling of mechanical and magnetic fields in magnetoelectrical composites // AIP Advances. 2017. V. 7. 060901. https://doi.org/10.1063/1.4986212
Dapino M.J. Magnetostrictive Materials: Their Use in Smart Structure Applications. Chapter in book: Encyclopedia of Smart Materials, 2002. 39 p. https://doi.org/10.1002/0471216275.esm051
