Advanced Quasistatic Approximation

P. V. Tuev; Туев П. В.; R. I. Spitsyn; Спицын Р. И.; K. V.  Lotov; Лотов К. В.

doi:10.31857/S0367292122601436

Advanced Quasistatic Approximation

Authors: Tuev P.V.¹^,2, Spitsyn R.I.¹^,2, Lotov K.V.¹^,2
Affiliations:
1. Budker Institute of Nuclear Physics, Siberian Branch, Russian Academy of Sciences
2. Novosibirsk State University
Issue: Vol 49, No 2 (2023)
Pages: 154-164
Section: УСКОРЕНИЕ ЧАСТИЦ В ПЛАЗМЕ
URL: https://journal-vniispk.ru/0367-2921/article/view/139522
DOI: https://doi.org/10.31857/S0367292122601436
EDN: https://elibrary.ru/NXAFCV
ID: 139522

Cite item

Full Text

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

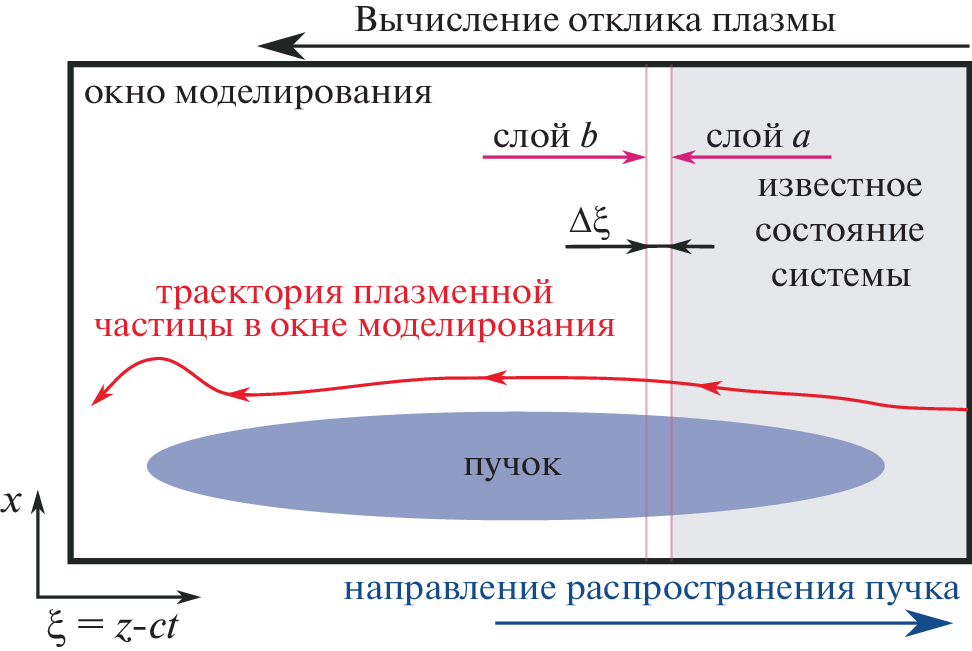

The quasistatic approximation (QSA) is an efficient method of simulating laser- and beam-driven plasma wakefield acceleration, but it becomes imprecise if some plasma particles make long longitudinal excursions in a strongly nonlinear wave, or if waves with non-zero group velocity are present in the plasma, or the plasma density gradients are sharp, or the beam shape changes rapidly. We present an extension to QSA that is free from many of its limitations and retains its main advantages of speed and reduced dimensionality. The new approach takes into account the exchange of information between adjacent plasma layers. We introduce the physical model, describe its numerical implementation, and compare the simulation results with available analytical solutions and other codes.

Keywords

plasma wakefield acceleration, quasistatic approximation, simulations, numerical model

References

Albert F., Couprie M.E., Debus A., Downer M.C., Faure J., Flacco A., Gizzi L.A., Grismayer T., Huebl A., Joshi C., Labat M., Leemans W.P., Maier A.R., Mangles S.P.D., Mason P., Mathieu F., Muggli P., Nishiuchi M., Oster-hoff J., Rajeev P.P., Schramm U., Schreiber J., Tho-mas A.G.R., Vay J.-L., Vranic M., Zeil K. // New J. Phys. 2021. V. 23. P. 031101. https://doi.org/10.1088/1367-2630/abcc62
Vay J.-L., Lehe R. // Rev. Accelerator Science Technology. 2016. V. 9. P. 165. https://doi.org/10.1142/S1793626816300085
Lotov K.V. // Nuclear Instr. Methods A. 1998. V. 410. P. 461. https://doi.org/10.1016/S0168-9002(98)00178-8
Burdakov A.V., Kudryavtsev A.M., Logatchov P.V., Lo-tov K.V., Petrenko A.V., Skrinsky A.N. // Plasma Phys. Rep. 2005. V. 31. P. 292. [Бурдаков А.В., Кудряв-цев А.М., Логачев П.В., Лотов К.В., Петренко А.В., Скринский А.Н. // Физика плазмы, 2005, Т. 31, C. 327–335.]https://doi.org/10.1134/1.1904145
Schroeder C.B., Esarey E., Geddes C.G.R., Benedetti C., Leemans W.P. // Phys. Rev. ST Accel. Beams. 2010. V. 13. P. 101301. https://doi.org/10.1103/PhysRevSTAB.13.101301
Nakajima K., Deng A., Zhang X., Shen B., Liu J., Li R., Xu Z., Ostermayr T., Petrovics S., Klier C., Iqbal K., Ruhl H., Tajima T. // Phys. Rev. ST Accel. Beams. 2011. V. 14. P. 091301. https://doi.org/10.1103/PhysRevSTAB.14.091301
Schroeder C.B., Esarey E., Leemans W.P. // Phys. Rev. ST Accel. Beams, 2012. V. 15. P. 051301. https://doi.org/10.1103/PhysRevSTAB.15.051301
Vay J.-L. // Phys. Rev. Lett. 2007. V. 98. P. 130405. https://doi.org/10.1103/PhysRevLett.98.130405
Vay J.-L., Geddes C.G.R., Cormier-Michel E., Gro-te D.P. // J. Computational Phys. 2011. V. 230. P. 5908. https://doi.org/10.1016/j.jcp.2011.04.003
Sprangle P., Esarey E., Ting A. // Phys. Rev. Lett. 1990. V. 64. P. 2011. https://doi.org/10.1103/PhysRevLett.64.2011
Mora P., Antonsen T.M. // Phys. Plasmas. 1997. V. 4. P. 217. https://doi.org/10.1063/1.872134
Jain N., Palastro J., Antonsen T.M., Mori W.B., An W. // Phys. Plasmas, 2015. V. 22. P. 023103. https://doi.org/10.1063/1.4907159
Sosedkin A.P., Lotov K.V. // Nuclear Instr. Methods A. 2016. V. 829. P. 350. https://doi.org/10.1016/j.nima.2015.12.032
An W., Decyk V.K., Mori W.B., Antonsen Jr. T.M. // J. Computational Phys. 2013. V. 250. P. 165. https://doi.org/10.1016/j.jcp.2013.05.020
Mehrling T., Benedetti C., Schroeder C.B., Osterhoff J. // Plasma Phys. Control. Fusion, 2014. V. 56. P. 084012. https://doi.org/10.1088/0741-3335/56/8/084012
Pukhov A., Farmer J.P. // Phys. Rev. Lett. 2018. V. 121. P. 264801. https://doi.org/10.1103/PhysRevLett.121.264801
Zhu W., Palastro J.P., Antonsen T.M. // Phys. Plasmas, 2012. V. 19. P. 033105. https://doi.org/10.1063/1.3691837
Huang C., Decyk V.K., Ren C., Zhou M., Lu W., Mo-ri W.B., Cooley J.H., Antonsen Jr.T.M., Katsouleas T. // J. Computational Phys. 2006. V. 217. P. 658. https://doi.org/10.1016/j.jcp.2006.01.039
Спицын Р.И. Магистерская дисс. Новосибирский государственный университет, 2016. https://www.inp.nsk.su/~dep_plasma/dip/Spitsyn_m.pdf.
Terzani D., Benedetti C., Schroeder C.B., Esarey E. // Phys. Plasmas. 2021. V. 28. P. 063105. https://doi.org/10.1063/5.0050580
Sprangle P., Esarey E., Krall J., Joyce G., Phys. Rev. Lett., 1992. V. 69. P. 2200. https://doi.org/10.1103/PhysRevLett.69.2200
Esarey E., Sprangle P., Krall J., Ting A., Joyce G. // Phys. Fluids B. 1993. V. 5. P. 2690. https://doi.org/10.1063/1.860707
Lotov K.V. // Phys. Plasmas. 1998. V. 5. P. 785. https://doi.org/10.1063/1.872765
Zgadzaj R., Silva T., Khudyakov V.K., Sosedkin A., Al-len J., Gessner S., Li Z., Litos M., Vieira J., Lotov K.V., Hogan M.J., Yakimenko V., Downer M.C. // Nature Comm. 2020. V. 11. P. 4753. https://doi.org/10.1038/s41467-020-18490-w
Khudiakov V.K., Lotov K.V., Downer M.C. // Plasma Phys. Control. Fusion. 2022. V. 64. P. 045003. https://doi.org/10.1088/1361-6587/ac4523
Benedetti C., Schroeder C.B., Geddes C.G.R., Esarey E., Leemans W.P. // Plasma Phys. Control. Fusion. 2018. V. 60. P. 014002. https://doi.org/10.1088/1361-6587/aa8977
Zhu W., Palastro J.P., Antonsen T.M. // Phys. Plasmas. 2013. V. 20. P. 073103. https://doi.org/10.1063/1.4813245
Lotov K.V. // Phys. Rev. ST Accel. Beams. 2003. V. 6. P. 061301. https://doi.org/10.1103/PhysRevSTAB.6.061301
https://lcode.info/.
See the LCODE manual at https://lcode.info/site-files/manual.pdf.
Crank J., Nicolson P. // Mathematical Proceed. Cambridge Philosophical Soc. 1947. V. 43. P. 50. https://doi.org/10.1017/S0305004100023197
Peaceman D.W., Rachford H.H. // J. Soc. Industrial Applied Math. 1955. V. 3. P. 28. https://doi.org/10.1137/0103003
Douglas J. // J. Soc. Industrial Applied Math. 1955. V. 3. P. 42. https://doi.org/10.1137/0103004
Esarey E., Leemans W.P. // Phys. Rev. E. 1999. V. 59. P. 1082. https://doi.org/10.1103/PhysRevE.59.1082
Lehe R., Kirchen M., Andriyash I.A., Godfrey B.B., Vay J.-L. // Computer Phys. Communications. 2016. V. 203. P. 66. https://doi.org/10.1016/j.cpc.2016.02.007
Luo J., Chen M., Zhang G.-B., Yuan T., Yu J.-Y., Shen Z.-C., Yu L.-L., Weng S.-M., Schroeder C. B., Esa-rey E. // Phys. Plasmas. 2016. V. 23. P. 103112. https://doi.org/10.1063/1.4966047
Massimo F., Beck A., Derouillat J., Grech M., Lobet M., Perez F., Zemzemi I., Specka A. // Plasma Phys. Control. Fusion. 2019. V. 61. P. 124001. https://doi.org/10.1088/1361-6587/ab49cf
Terzani D., Londrillo P. // Computer Phys. Communicat. 2019. V. 242. P. 49. https://doi.org/10.1016/j.cpc.2019.04.007
Pukhov A., Meyer-ter-Vehn J. // Appl. Phys. B, 2002. V. 74. P. 355. https://doi.org/10.1007/s003400200795
Malka V. // Phys. Plasmas, 2012. V. 19. P. 055501. https://doi.org/10.1063/1.3695389
Esarey E., Schroeder C.B., Leemans W.P. // Rev. Mod. Phys. 2009. V. 81. P. 1229. https://doi.org/10.1103/RevModPhys.81.1229
Morshed S., Antonsen T.M., Palastro J.P. // Phys. Plasmas, 2010. V. 17. P. 063106. https://doi.org/10.1063/1.3432685
Tuev P.V., Lotov K.V. Proc. 47th EPS Conference on Plasma Phys. 2021. P. 2.2004. http://ocs.ciemat.es/EPS2021PAP/pdf/P2.2004.pdf.
Irkutsk Supercomputer Center of SB RAS (available at: http://ocs.ciemat.es/EPS2021PAP/pdf/P2.2004.pdf).
