First Experiments on the Investigation of the Generation of Negative Hydrogen Ions with the Use of CW ECR Discharge at the GISMO Facility

R. L. Lapin; Лапин Р. Л.; V. A. Skalyga; Скалыга В. А.; I. V. Izotov; Изотов И. В.; S. V. Golubev; Голубев С. В.; A. F. Bokhanov; Боханов А. Ф.; E. M. Kiseleva; Киселева Е. М.; S. S. Vybin; Выбин С. С.

doi:10.31857/S036729212260090X

First Experiments on the Investigation of the Generation of Negative Hydrogen Ions with the Use of CW ECR Discharge at the GISMO Facility

Authors: Lapin R.L.¹, Skalyga V.A.¹, Izotov I.V.¹, Golubev S.V.¹, Bokhanov A.F.¹, Kiseleva E.M.¹, Vybin S.S.¹
Affiliations:
1. Institute of Applied Physics, Russian Academy of Sciences
Issue: Vol 49, No 2 (2023)
Pages: 193-197
Section: LOW TEMPERATURE PLASMA
URL: https://journal-vniispk.ru/0367-2921/article/view/139532
DOI: https://doi.org/10.31857/S036729212260090X
EDN: https://elibrary.ru/NWUITG
ID: 139532

Cite item

Full Text

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

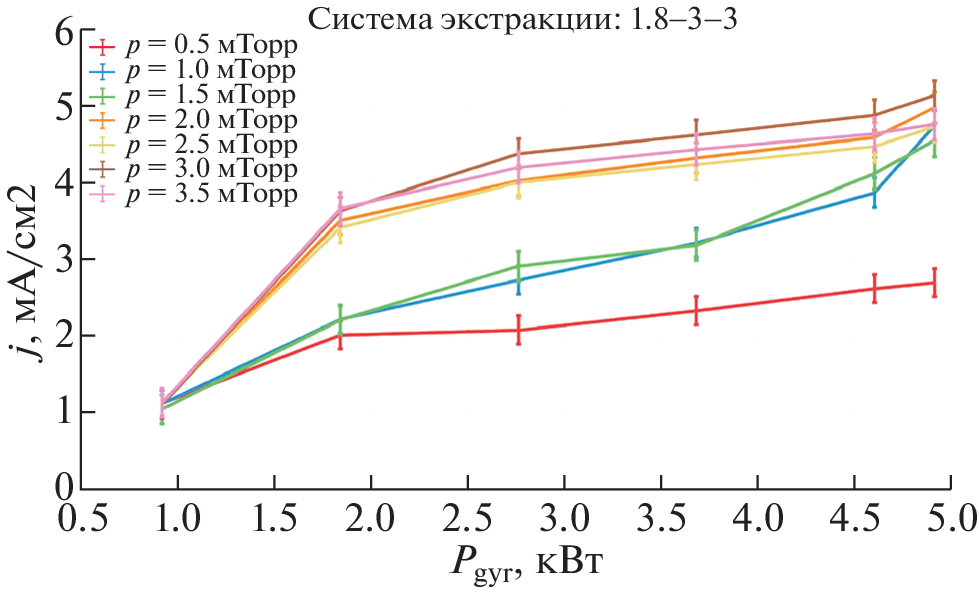

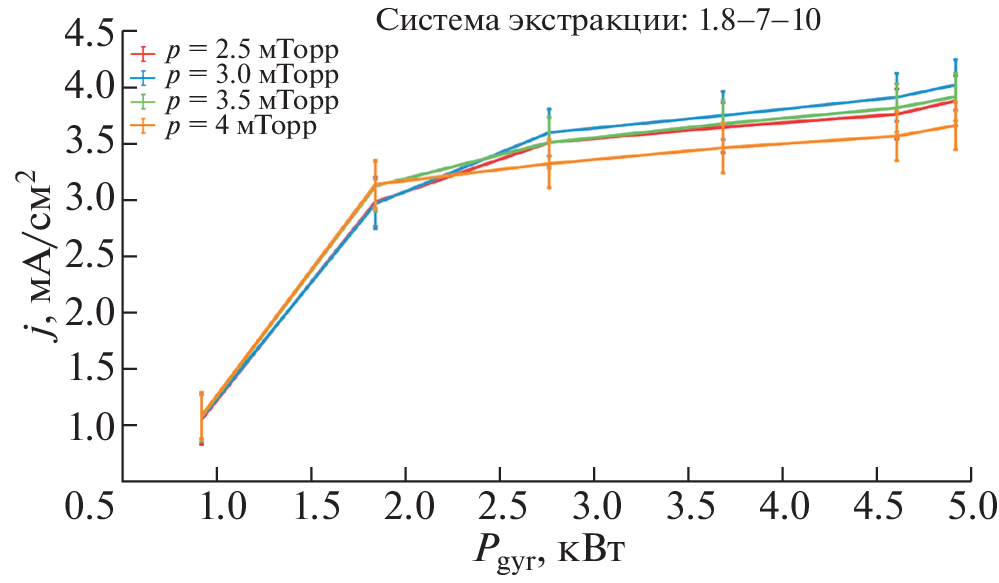

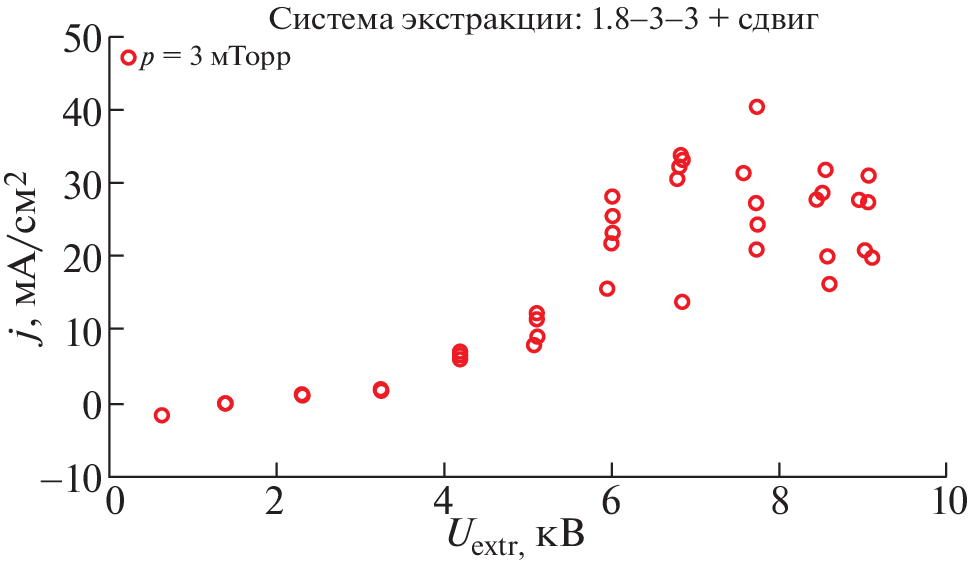

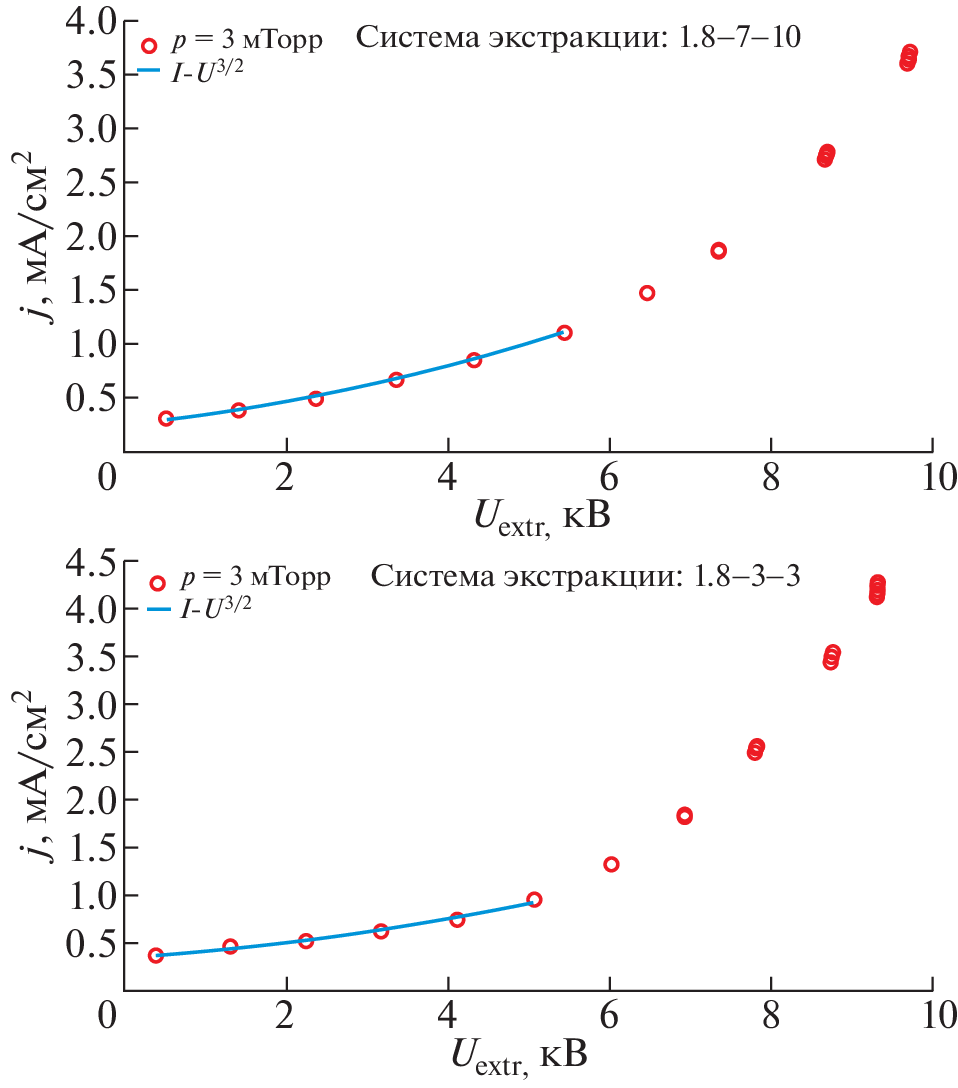

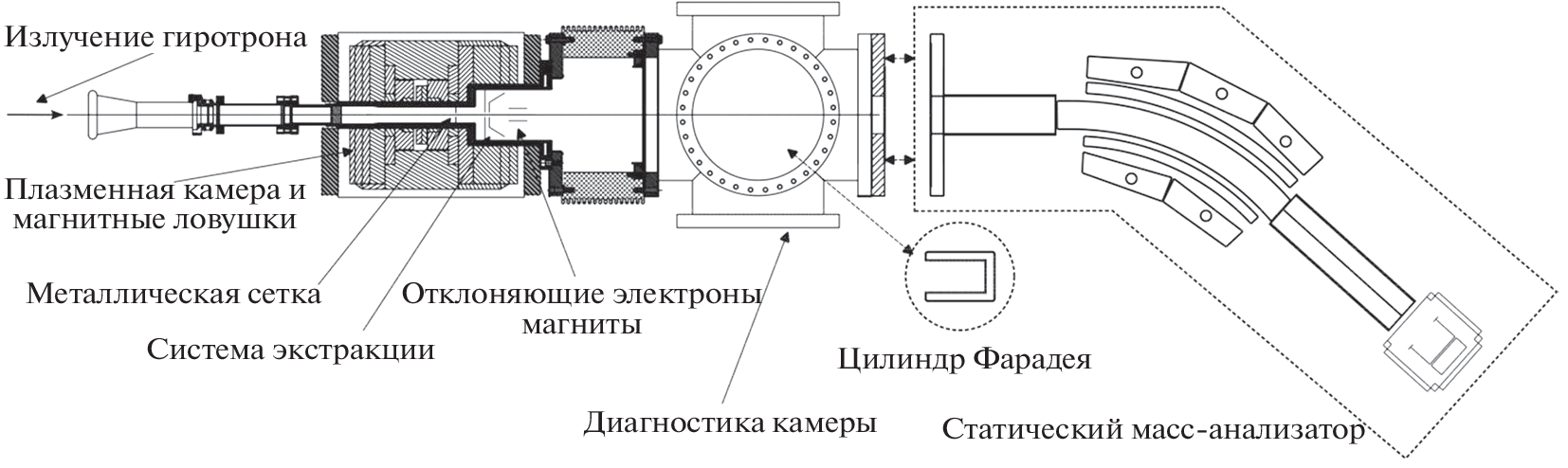

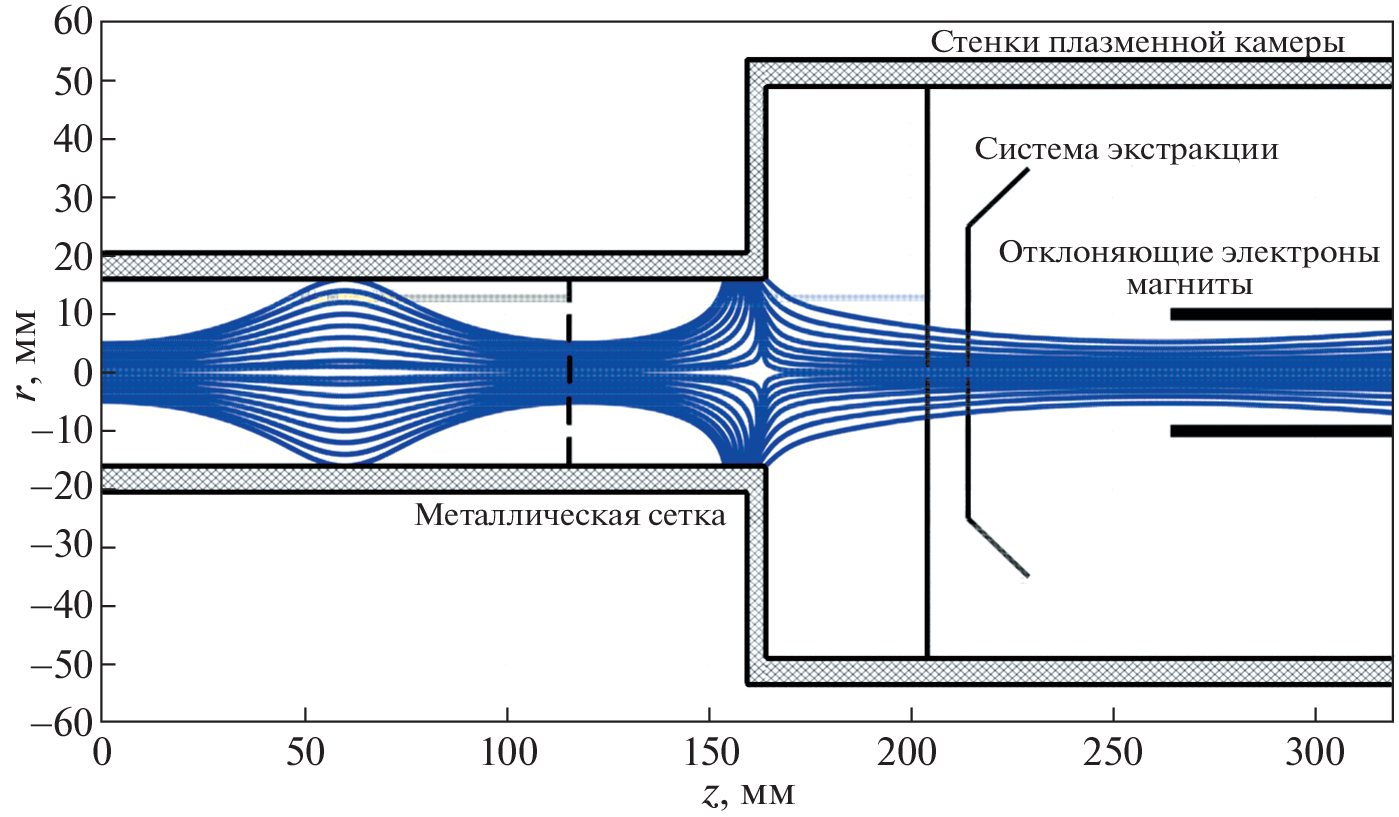

The results of the first experiments on studying the volume production of negative hydrogen ions using a dense gasdynamic plasma of an electron cyclotron resonance (ECR) discharge sustained by continuous wave (CW) microwave radiation from a gyrotron (28 GHz/5 kW) are described. The ECR hydrogen discharge is ignited in a vacuum chamber placed in a magnetic field created by a system of two consecutive magnetic traps. The system parameters are optimized to obtain the maximum average current density of negative ions at the level of j = 25 mA/cm2. The study involves the determination of the negative ion production area, me-asurement of the current density dependences on gas pressure and microwave radiation power, and demonstration of potential optimization opportunities for extraction voltage.

Keywords

microwave radiation of a gyrotron, hydrogen ECR discharge, volume negative hydrogen ion production

References

Bacal M., Sasao M., Wada M. // J. Appl. Phys. 2021. V. 129. P. 221101. https://doi.org/10.1063/5.0049289
Браун Я. Физика и технология источников ионов. М.: Мир, 1998.
Leung K.N., Ehlers K.W., Bacal M. // Rev. Sci. Instrum. 1983. V. 54. P. 56. https://doi.org/10.1063/1.1137215
Lapin R.L., Skalyga V.A., Izotov I.V., Golubev S.V., Razin S.V., Bokhanov A.F., Kazakov M.Yu., Shaposhni-kov R.A., Kiseleva E.M., Tarvainen O. // J. Phys.: Conf. Ser. 2020. V. 1647. P. 012012. https://doi.org/10.1088/1742-6596/1647/1/012012
Lapin R.L., Izotov I.V., Skalyga V.A., Razin S.V., Shaposhnikov R.A., Tarvainen O. // JINST. 2018. V. 13. P. C12007. https://doi.org/10.1088/1748-0221/13/12/C12007
Dougar-Jabon V.D., Chacon Velasco A.J., Vivas F.A. // Rev. Sci. Instrum. 1998. V. 69. P. 950. https://doi.org/10.1063/1.1148618
Dougar-Jabon V.D. // Phys. Scr. 2001. V. 63. № 4. P. 322. https://doi.org/10.1238/Physica.Regular.063a00322
