Study of the electric field density distribution in cylindrical chamber with coaxial feed of super high frequency radiation energy

A. A. Dovgan; Довгань А. А.; I. Sh. Bahteev; Бахтеев И. Ш.; S. Yu. Molchanov; Молчанов С. Ю.; V. V. Martynov; Мартынов В. В.; B. M. Brzhozovskii; Бржозовский Б. М.; E. P. Zinina; Зинина Е. П.

doi:10.31857/S0367676522700405

Study of the electric field density distribution in cylindrical chamber with coaxial feed of super high frequency radiation energy

Authors: Dovgan A.A.¹, Bahteev I.S.², Molchanov S.Y.², Martynov V.V.¹, Brzhozovskii B.M.¹, Zinina E.P.¹
Affiliations:
1. Mechanical Engineering Research Institute of the Russian Academy of Sciences
2. Institute of Solid State Physics of the Russian Academy of Sciences
Issue: Vol 87, No 2 (2023)
Pages: 218-225
Section: Articles
URL: https://journal-vniispk.ru/0367-6765/article/view/135276
DOI: https://doi.org/10.31857/S0367676522700405
EDN: https://elibrary.ru/AEUGKB
ID: 135276

Cite item

Full Text

Open Access
Restricted Access

Access granted
Restricted Access

Subscription Access

Abstract
About the authors
References
Supplementary files
Statistics

Abstract

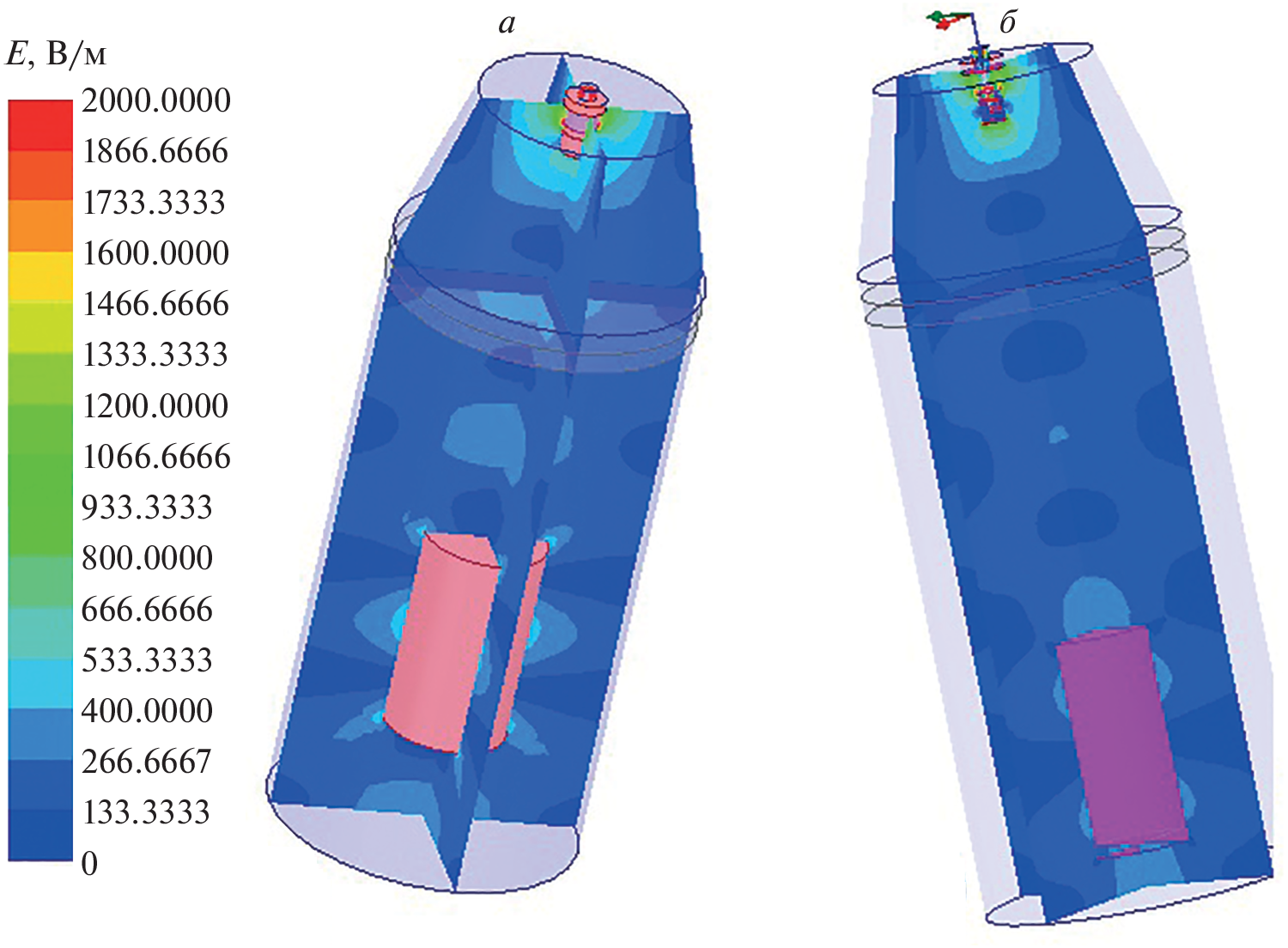

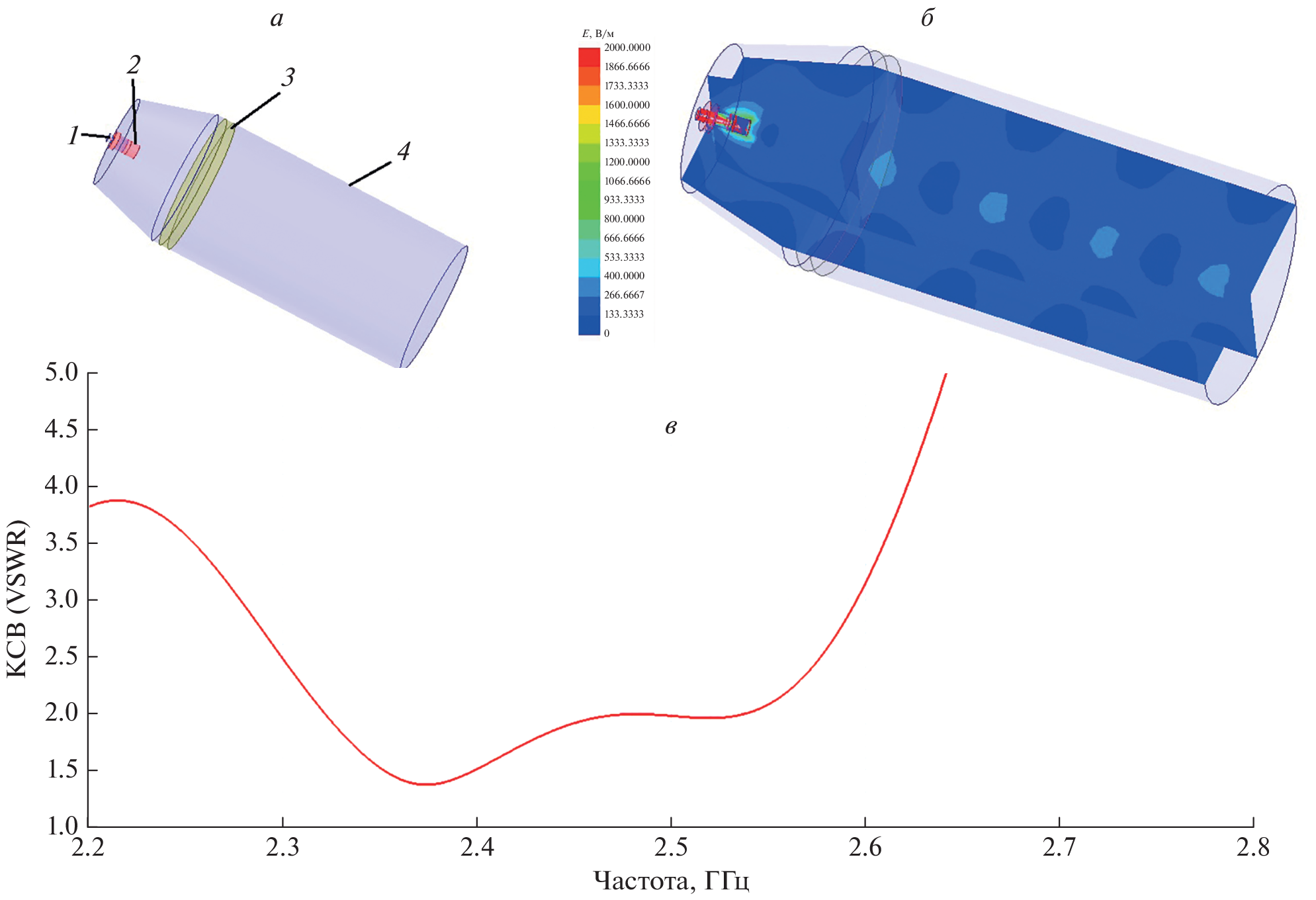

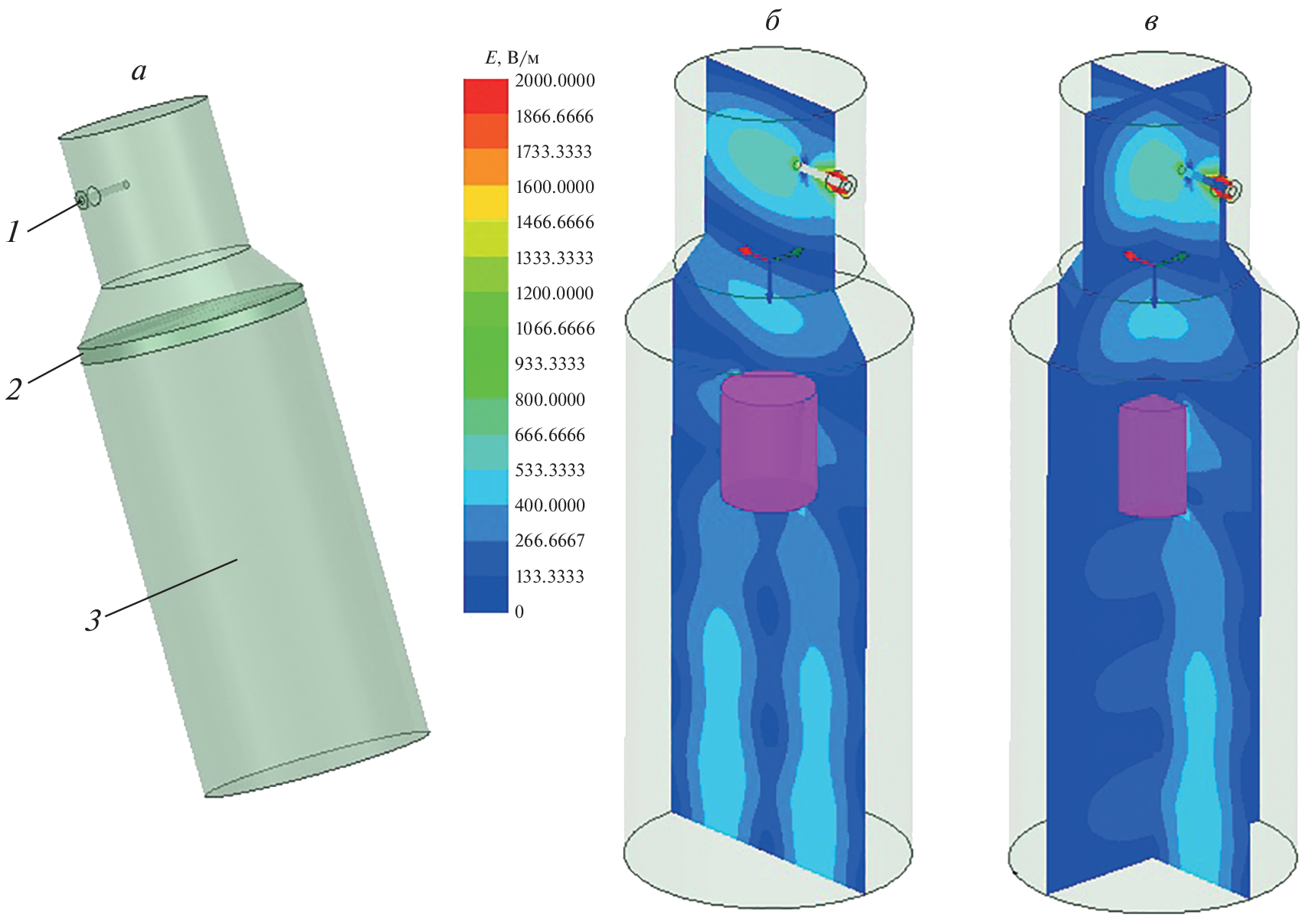

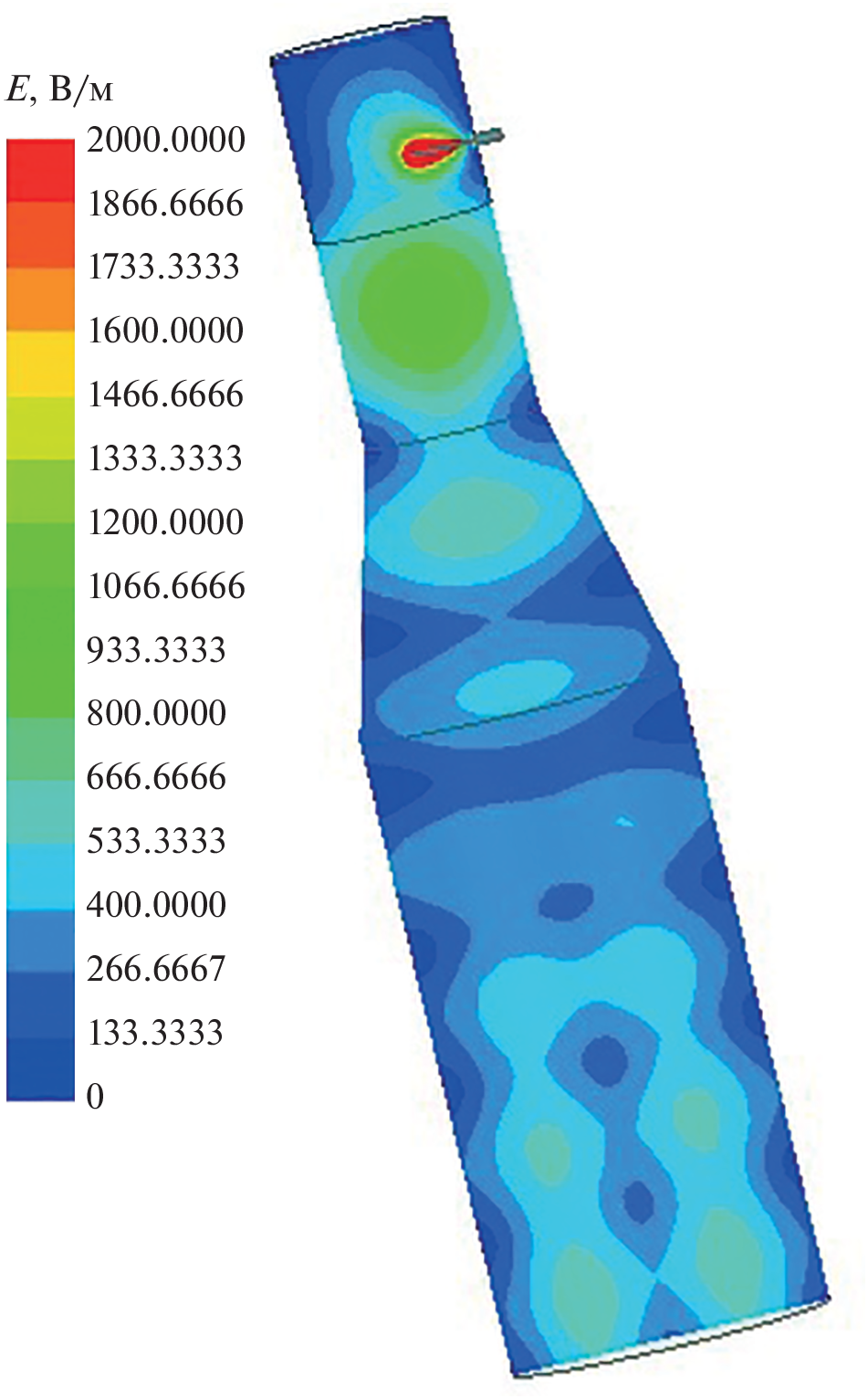

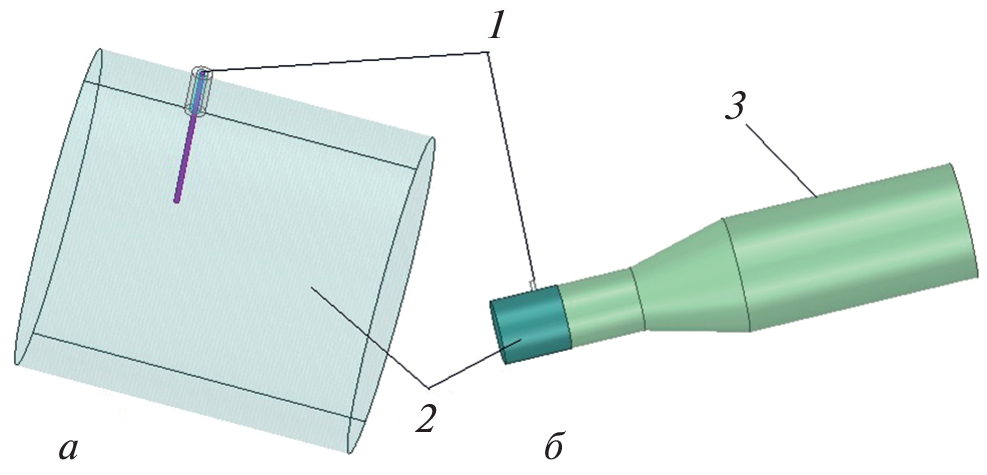

The main design options for supplying SHF energy to the end wall of a cylindrical resonator were considered. 2 types of designs for coaxial feed of energy were selected and optimized, differing in the location of the coaxial line relative to the required direction of wave propagation. As a result of the calculations, the electric fields inside the cylindrical chamber and in the horn coaxial antennas were found, and the SWR of the systems was determined. A comparison in distribution of the electric field when metal objects were placed in the chamber was carried out. The areas of occurrence of a plasma SHF discharge on the surface of a cylindrical object were shown.

References

Barnes B.K., Ouro-Koura H., Derickson J. et al. // Amer. J. Phys. 2021. V. 89. No. 4. P. 372.
Brcka J. // Proc. COMSOL Users Conf. (Boston, 2006) P. 431.
Turkoz E., Celik M. // J. Comput. Phys. 2015. V. 286. P. 87.
Бржозовский Б.М., Мартынов В.В., Молчанов C.Ю. и др. // Усп. прикл. физ. 2020. Т. 8. № 3. С. 189.
Werner F., Korzec D., Engemann J. // Plasma Sources Sci. Technol. 1994. V. 3. No. 4. P. 473.
Jiang Y., Hsu H.Y., Aranganadin K. et al. // Proc. IVEC-2019 (Busan, 2019). P. 1.
Liu F., Wang J., Dai S. // Int. J. Numer. Model. 2011. V. 24. No. 6. P. 526.
Hasegawa Y., Nakamura K., Lubomirsky D. et al. // Japan J. Appl. Phys. 2017. V. 56. No. 4. Art. No. 046203.
Deng X., Takaoka Y., Kousaka H., Umehara N. // Surf. Coat. Technol. 2014. V. 238. P. 80.
Kar S., Alberts L., Kousaka H. // AIP Advances. 2015. V. 5. No. 1. Art. No. 017104.
Latrasse L., Lacoste A., Sirou J., Pelletier J. // Plasma Sources Sci. Technol. 2006. V. 16. No. 1. P. 7.
Latrasse L., Radoiu M., Nelis T., Antonin O. // J. Microw. Power Electromagn. Energy. 2017. V. 51. No. 4. P. 237.
Калиничев В.И., Калошин В.А. // Журн. радиоэлектроники. 2007. № 10. С. 23.
Dehdasht-Heydari R., Hassani H.R., Mallahzadeh A.R. // Progr. Electromagn. Res. 2008. V. 79. P. 23.
Mallahzadeh A.R., Imani A. // Progr. Electromagn. Res. 2009. V. 91. P. 273.
Rackow K., Ehlbeck J., Krohmann U., Baeva M. // Plasma Sources Sci. Technol. 2011. V. 20. No. 3. Art. No. 035019.
Хлопов Ю.Н. Радиоэлектроника и связь. М.: Знание, 1967. 50 с.
Соколова Ж.М. Приборы и устройства СВЧ, КВЧ и ГВЧ диапазонов. Учебное пособие. Томск: ТУСУР, 2012. 283 с.
http://npp-elmika.ru/info/index.php?id=219.
