电邮这篇文章 Study of the effect of cation substitution on the formation of microcracks in Ni-rich layered oxides
- 作者: Moiseev I.A.1, Golubnichiy А.А.1, Pavlova А.P.1, Abakumov А.M.1
-
隶属关系:
- Skolkovo Institute of Science and Technology
- 期: 卷 87, 编号 10 (2023)
- 页面: 1416-1422
- 栏目: Articles
- URL: https://journal-vniispk.ru/0367-6765/article/view/141836
- DOI: https://doi.org/10.31857/S0367676523702472
- EDN: https://elibrary.ru/PKJQCA
- ID: 141836
如何引用文章
开放存取
##reader.subscriptionAccessGranted##
订阅存取
详细

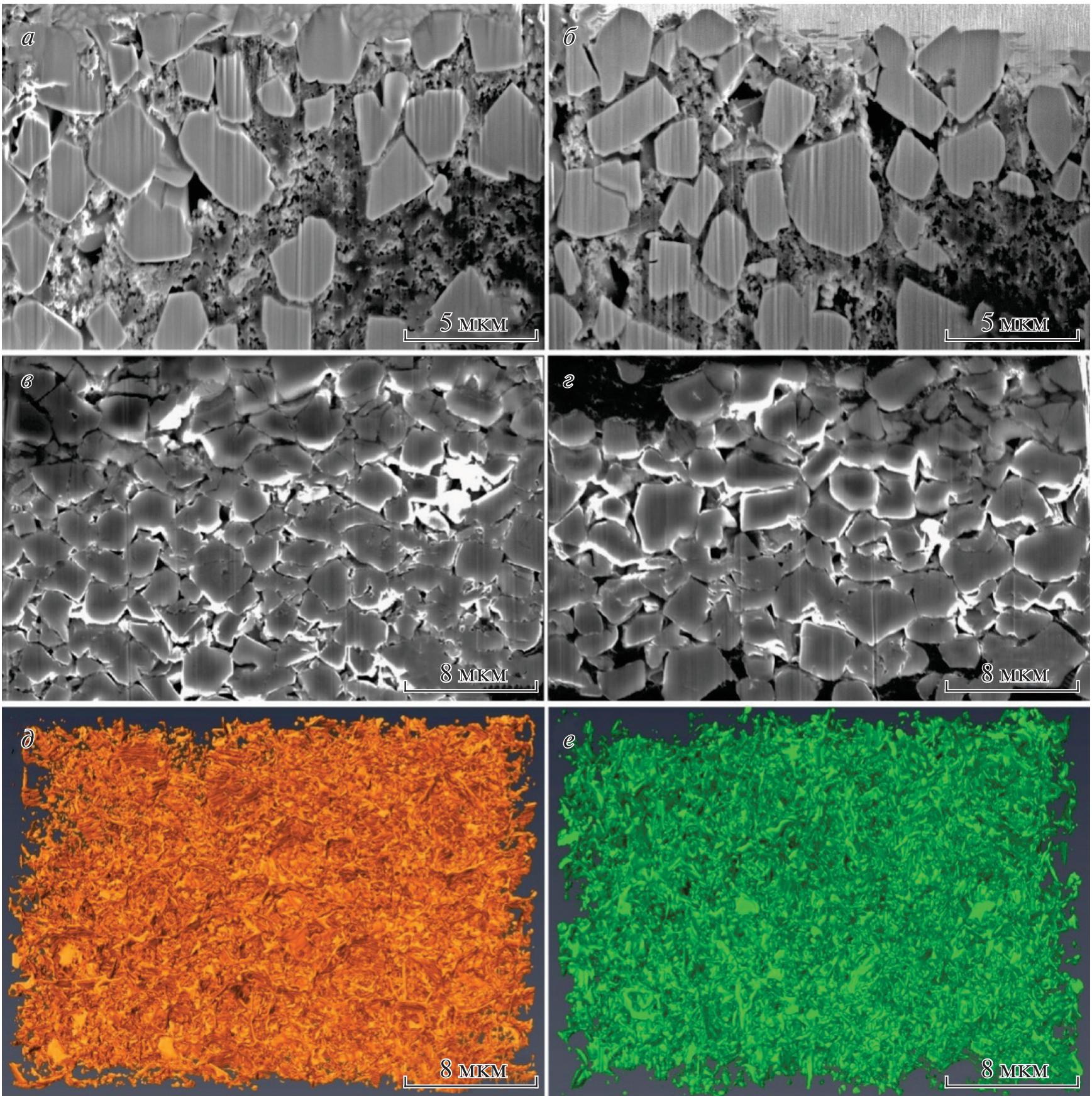

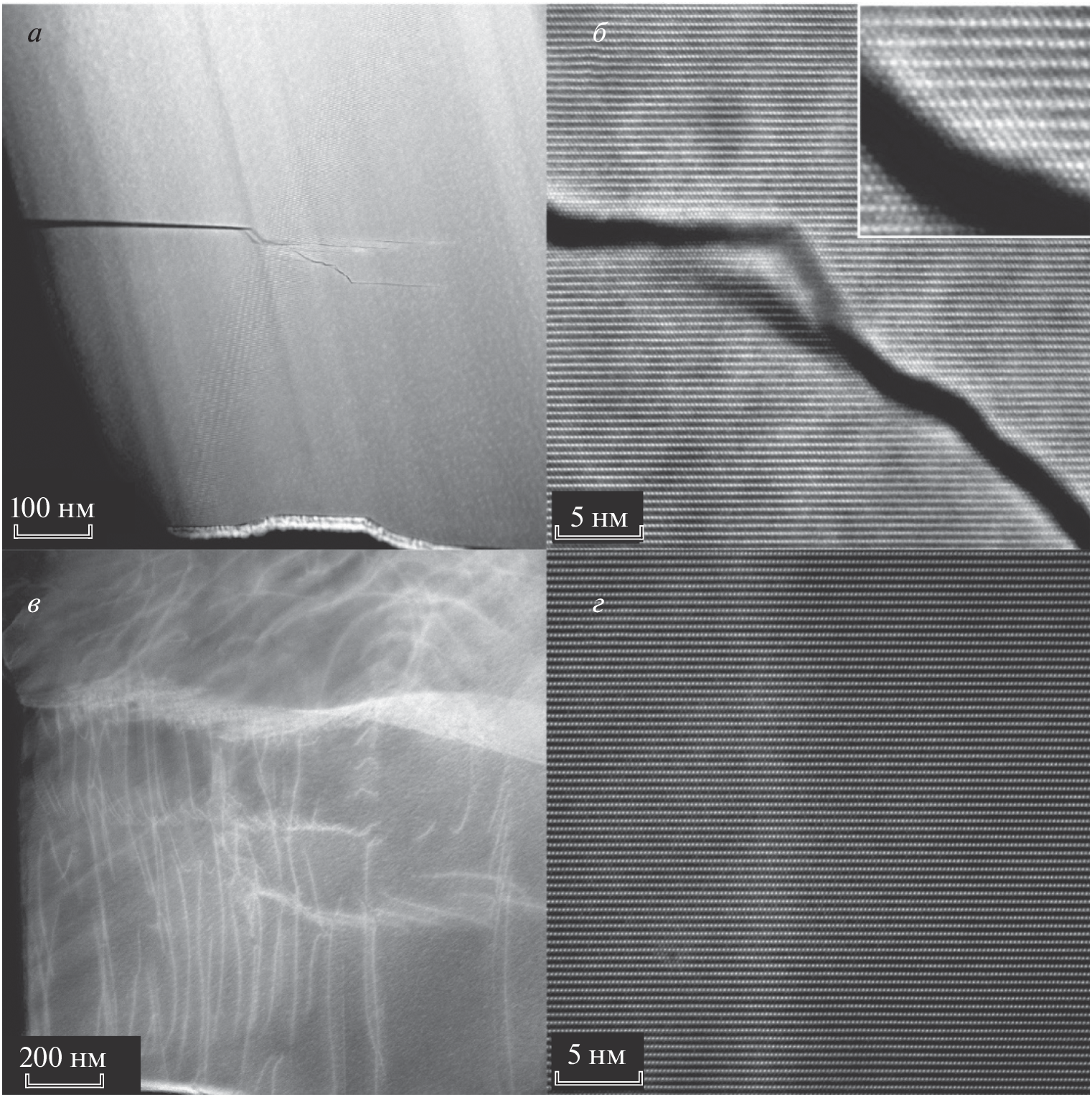

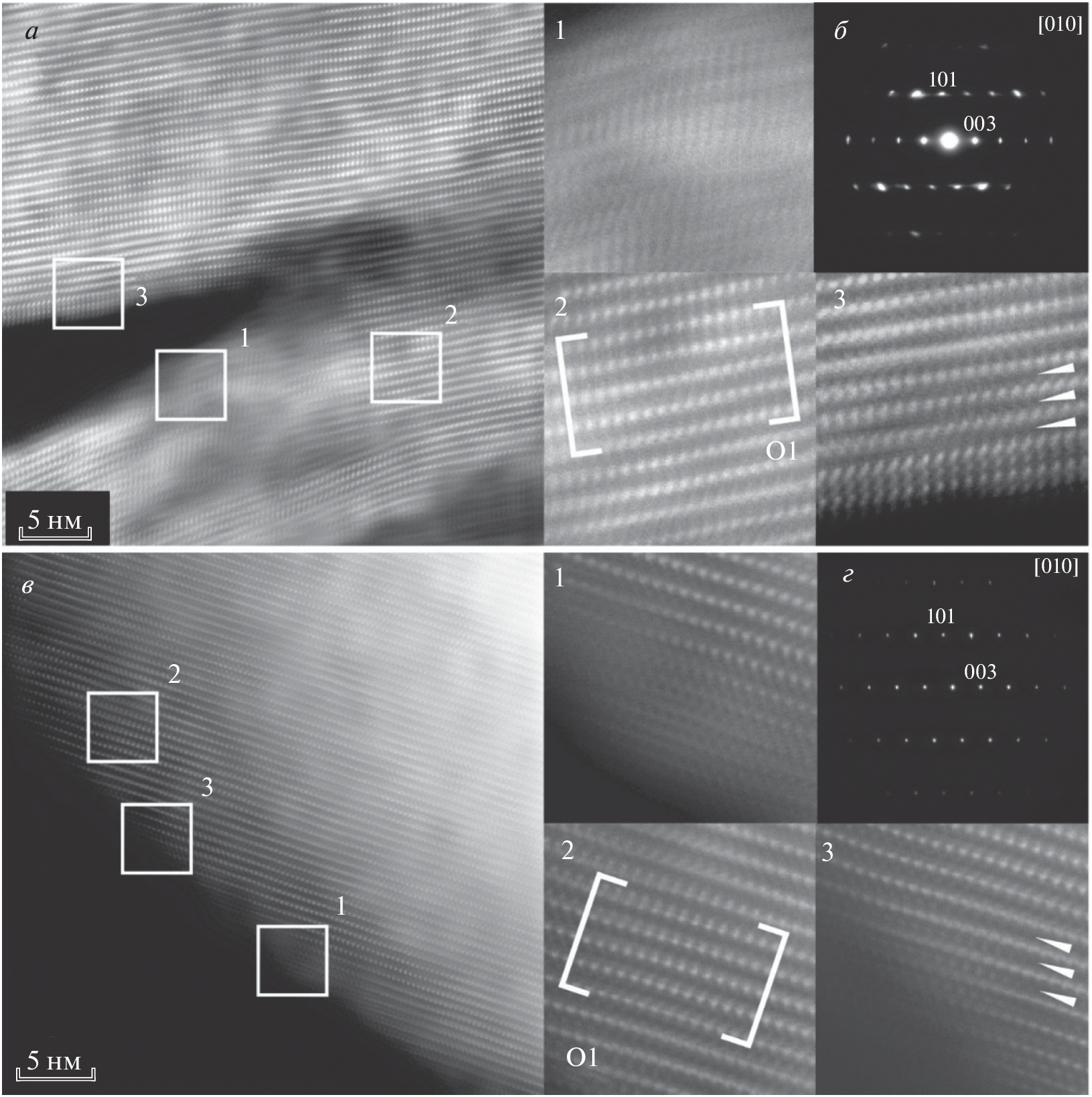

The formation of microcracks in agglomerated particles of positive electrode (cathode) material based on Ni-enriched layered oxide LiNi0.6Mn0.2Co0.2O2 has been studied using transmission electron microscopy. The influence of magnesium cations as a doping additive on the stability of the material to the accumulation of structural defects and the formation of cracks during long-term galvanostatic cycling is demonstrated, and a mechanism for stress relaxation is proposed.
作者简介
I. Moiseev
Skolkovo Institute of Science and Technology
Email: a.abakumov@skoltech.ru
Russia, 121205, Moscow
А. Golubnichiy
Skolkovo Institute of Science and Technology
Email: a.abakumov@skoltech.ru
Russia, 121205, Moscow
А. Pavlova
Skolkovo Institute of Science and Technology
Email: a.abakumov@skoltech.ru
Russia, 121205, Moscow
А. Abakumov
Skolkovo Institute of Science and Technology
编辑信件的主要联系方式.
Email: a.abakumov@skoltech.ru
Russia, 121205, Moscow
参考
- Ming J., Danilov D.L., Rüdiger-A.E., Notten P.H.L. // Adv. Energy Mater. 2021. V. 11. No. 48. Art. No. 2103005.
- Hausbrand R., Cherkashinin G., Ehrenberg H. et al. // Mater. Sci. Engin. B. 2015. V. 192. P. 3.
- Li W., Dolocan A., Oh P., Celio H. et al. // Nature Commun. 2017. V. 8. P. 14589.
- Li W., Kim U.-H., Dolocan A. et al. // ACS Nano. 2017. V. 11. P. 5863.
- Zhan C., Wu T., Lu J., Amine K. // Energy Environ. Sci. 2018. V. 11. P. 243.
- Jung R., Metzger M., Maglia F. et al. // J. Electrochem. Soc. 2017. V. 164. Art. No. A1377.
- Zhang H., May B.M., Serrano-Sevillano J. et al. // Chem. Mater. 2018. V. 30. P. 699.
- Lin Q., Guan W., Meng J. et al. // Nano Energy. 2018. V. 54. No. 12. P. 321.
- Li J., Manthiram A. // Adv. Energy Mater. 2019. V. 9. No. 45. Art. No. 1902731.
- Yan P., Zheng J., Gu M. et al. // Nature Commun. 2017. V. 8. Art. No. 14101.
- Sun H., Zhao K. // J. Phys. Chem. C. 2017. V. 121. P. 6002.
- Zhang S.S. // E. Store. Mat. 2020. V. 24. P. 247.
- Mao Y., Wang X., Xia S. et al. // Adv. Funct. Mater. 2019. V. 29. P. 18.
- Li J., Downie L.E., Ma L. et al. // J. Electrochem. Soc. 2015. V. 162. Art. No. A1401.
- Zhang S.S. // J. Energy Chem. 2020. V. 41. No. 2. P. 135.
- Yoon C.S., Dun D.W., Myung S.T., Sun Y.K. // ACS Energy Lett. 2017. V. 2. P. 1150.
- Ryu H.H., Park K.J., Yoon C.S., Sun Y.K. // Chem. Mater. 2018. V. 30. P. 1155.
- Bi Y., Tao J., Wu Y. et al. // Science. 2020. V. 370. P. 1313.
- Kim H., Kim M.G., Jeong H.Y. et al. // Nano Lett. 2015. V. 15. No. 3. P. 2111.
- Yan P., Zheng J., Gu M. et al. // Nature Commun. 2017. V. 8. Art. No. 14101.
- Zhu J., Chen G. // J. Mater. Chem. A. 2019. V. 7. P. 5463.
- Delmas C., Fouassier C., Hagenmuller P. // Physica B + C. 1980. V. 99. No. 1–4. P. 81.
- Perovic D.D., Rossouw C.J., Howie A. // Ultramicroscopy. 1993. V. 52. P. 353.
