Electrochemical Oxygen Generator with Solid-Molten Bi2O3–B2O3 Electrolyte and Porous Bi3Ru3O11–Bi2O3 Electrodes

P. E. Dergacheva; Дергачева П. Е.; S. V. Fedorov; Федоров С. В.; V. V. Belousov; Белоусов В. В.; A. A. Konovalov; Коновалов А. А.; V. V. Artemov; Артемов В. В.

doi:10.31857/S0424857023060038

Electrochemical Oxygen Generator with Solid-Molten Bi2O3–B2O3 Electrolyte and Porous Bi3Ru3O11–Bi2O3 Electrodes

作者: Dergacheva P.E.¹, Fedorov S.V.¹, Belousov V.V.¹, Konovalov A.A.¹, Artemov V.V.²
隶属关系:
1. Baykov Institute of Metallurgy and Materials Science, Russian Academy of Sciences
2. Federal Research Center of Crystallography and Photonics, Russian Academy of Sciences
期: 卷 59, 编号 6 (2023)
页面: 360-366
栏目: Articles
URL: https://journal-vniispk.ru/0424-8570/article/view/139283
DOI: https://doi.org/10.31857/S0424857023060038
EDN: https://elibrary.ru/PXYIJO
ID: 139283

如何引用文章

全文:

开放存取

##reader.subscriptionAccessGranted##
受限制的访问

订阅存取

详细
作者简介
参考
补充文件
统计

详细

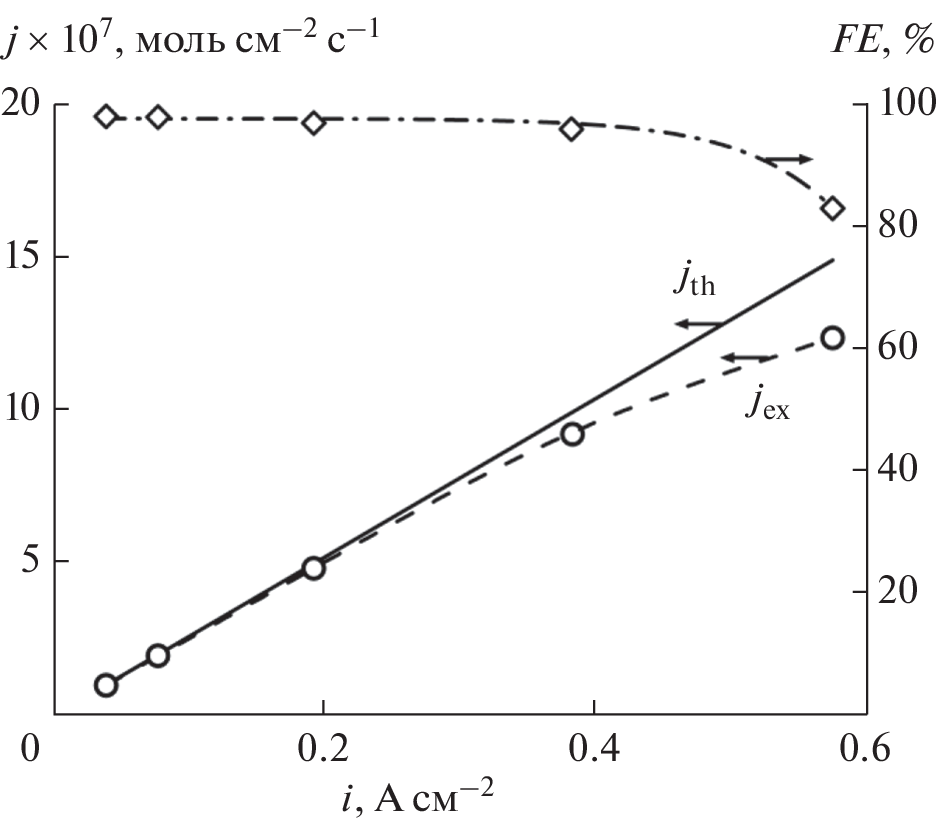

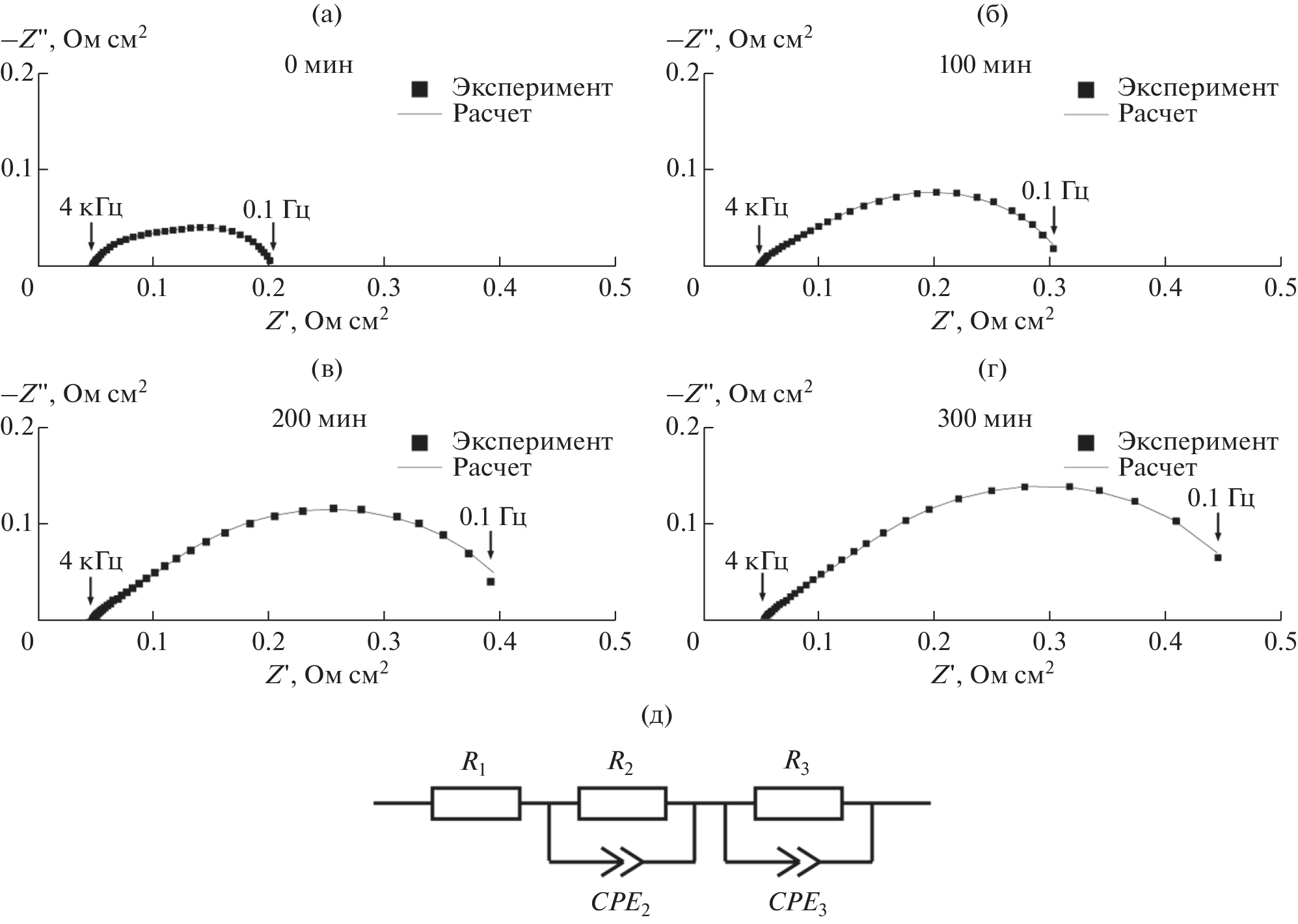

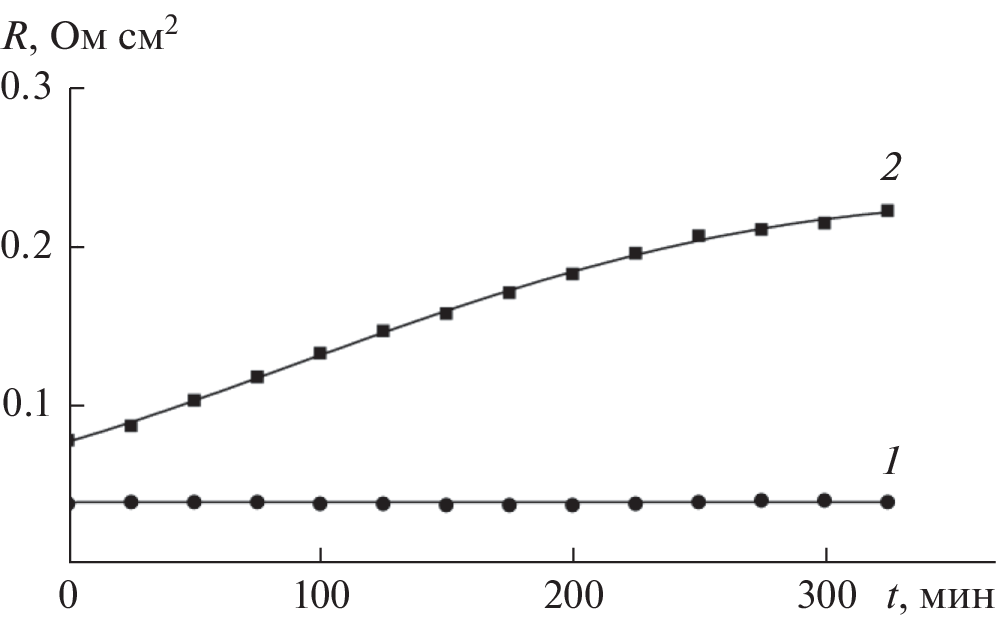

A symmetrical electrochemical cell Bi3Ru3O11−35 wt % Bi2O3 porous electrode|Bi2O3−0.2 wt % B2O3 solid-molten electrolyte|Bi3Ru3O11−35 wt % Bi2O3 porous electrode is developed. The values of the cell ohmic and polarization resistances, Faraday efficiency, and oxygen permeation flux of the cell were measured using impedance spectroscopy and Coulomb volumetric technique at 740°C. These values are 0.046 and 0.077 Ω cm2, 97%, and 5×10–7 mol cm–2 s–1, respectively. The effect of wetting of the porous electrode surface on the polarization resistance was analyzed. The Bi3Ru3O11−35 wt % Bi2O3 and solid-molten Bi2O3−0.2 wt % B2O3 composites have a great potential to be used as the electrode and electrolyte materials in electrochemical oxygen generators.

关键词

electrochemical oxygen generator, electrolyte, electrode, wetting, impedance

参考

Akulinin, E., Golubyatnikov, O., Dvoretsky, D., and Dvoretsky, S., Optimization and analysis of pressure swing adsorption process for oxygen production from air under uncertainty, Chem. Ind. Chem. Eng. Q., 2020, vol. 26, no. 1, p. 89.
Santos, J.C., Cruz, P., Regala, T., Magalhaes, F.D., and Mendes, A., High-purity oxygen production by pressure swing adsorption, Ind. Eng. Chem. Res., 2007, vol. 46, no. 2, p. 591.
Allam, R. J., Improved oxygen production technologies, Energy Procedia, 2009, vol. 1, no. 1, p. 461.
Wang, M., Nowicki, K.M., and Irvine, J.T.S., A Novel Solid Oxide Electrochemical Oxygen Pump for Oxygen Therapy, J. Electrochem. Soc., 2022, vol. 169, no. 6, p. 064509.
Tsai, J.T., Wang, S.F., Hsu, Y.F., and Jasinski, P., Effects of La0.8Sr0.2MnO3 and Ag electrodes on bismuth-oxide-based low-temperature solid electrolyte oxygen generators, Ceram. Int., 2022, vol. 48, no. 1, p. 1132.
Wang, S.F., Chen, Y.W., and Hsu, Y.F., Honeycomb oxygen-generator with doped bismuth-oxide-based electrolyte and Ag electrode, J. Electroceramics, 2020, vol. 44, no. 1, p. 104.
Chen, Y.W., Liu, Y.-X., Wang, S.F., and Devasenathipathy, R., Characteristics of Honeycomb-Type Oxygen Generator with Electrolyte Based on Doped Bismuth Oxide, J. Electron. Mater., 2018, vol. 47, no. 7, p. 3639.
Dyer, P.N., Richards, R.E., Russek, S.L., and Taylor, D.M., Ion transport membrane technology for oxygen separation and syngas production, Solid State Ion., 2000, vol. 134, no. 1-2, p. 21.
Badwal, S.P.S. and Ciacchi, F.T., Ceramic membrane technologies for oxygen separation, Adv. Mater., 2001, vol. 13, no. 12–13, p. 993.
Jiang, D., Bu, X., Sun, B., Lin, G., Zhao, H., Cai, Y., and Fang, L., Experimental study on ceramic membrane technology for onboard oxygen generation, Chinese J. Aeronaut., 2016, vol. 29, no. 4, p. 863.
Meixner, D.L., Brengel, D.D., Henderson, B.T., Abrardo, J.M., Wilson, M.A., Taylor, D.M., and Cutler, R.A., Electrochemical oxygen separation using solid electrolyte ion transport membranes, J. Electrochem. Soc., 2002, vol. 149, no. 9, p. D132.
Zhou, W., Shao, Z., Ran, R., Chen, Z., Zeng, P., Gu, H, Jin W., and Xu, N., High performance electrode for electrochemical oxygen generator cell based on solid electrolyte ion transport membrane, Electrochim. Acta, 2007, vol. 52, no. 22, p. 6297.
Pham, A.Q. and Glass, R.S., Oxygen pumping characteristics of yttria-stabilized-zirconia, Electrochim. Acta, 1998, vol. 43, no. 18, p. 2699.
Спирин, А.В., Никонов, А.В., Липилин, А.С., Паранин, С.Н., Иванов, В.В., Хрустов, В. Р., Валенцев, А.В., Крутиков, В.И. Электрохимический элемент с твердооксидным электролитом и кислородный насос на его основе. Электрохимия. 2011. Т. 47. С. 608. [Spirin, A.V. Nikonov, A.V., Lipilin, A.S., Paranin, S.N., Ivanov, V.V., Khrustov, V.R., Valentsev A.V., and Krutikov, V.I., Electrochemical cell with solid oxide electrolyte and oxygen pump thereof, Russ. J. Eleсtrochem., 2011, vol. 47, p. 569.]
Yuan, D. and Kröger, F.A., Stabilized zirconia as an oxygen pump, J. Electrochem. Soc., 1969, vol. 116, no. 5, p. 594.
Park, J.Y. and Wachsman, E.D., Lower temperature electrolytic reduction of CO2 to O2 and CO with high-conductivity solid oxide bilayer electrolytes, J. Electrochem. Soc., 2005, vol. 152, no. 8, p. A1654.
Hong, T., Fang, S., Zhao, M., Chen, F., Zhang, H., Wang, S., and Brinkman, K.S., An intermediate-temperature oxygen transport membrane based on rare-earth doped Bismuth Oxide Dy0.08W0.04Bi0.88O2 – δ, J. Electrochem. Soc., 2017, vol. 164, no. 4, p. F347.
Inaba, H. and Tagawa, H., Ceria-based solid electrolytes, Solid State Ion., 1996, vol. 83, nos. 1–2, p. 1.
Sammes, N.M., Tompsett, G.A., Näfe, H., and Aldinger, F., Bismuth based oxide electrolytes–structure and ionic conductivity, J. Eur. Ceram. Soc., 1999, vol. 19, no. 10, p. 1801.
Жук, П.П., Вечер, А.А., Самохвал, В.В. Кислородные проводники на основе оксида висмута. Вестник БГУ. Сер. 2. 1984. № 1. С. 8. [Zhuk, P.P., Vecher, A.A., and Samokhval, V.V., Oxygen conductors based on bismuth oxide, Vestnik BGU. Ser. 2 (in Russian), 1984, no. 1, p. 8.]
Belousov, V.V. and Fedorov, S.V., A highly conductive electrolyte for molten oxide fuel cells, Chem. Commun., 2017, vol. 53, no. 3, p. 565.
Levin, E.M. and McDaniel, C.L., The System Bi2O3–B2O3, J. Amer. Ceram. Soc., 1962, vol. 45, no. 8, p. 355.
Esposito, V., Luong, B.H., Di Bartolomeo, E., Wachsman, E.D., and Traversa, E., Applicability of Bi2Ru2O7 pyrochlore electrodes for ESB and BIMEVOX electrolytes, J. Electrochem. Soc., 2006, vol. 153, no. 12, p. A2232.
Jaiswal, A., Hu, C.T., and Wachsman, E.D., Bismuth ruthenate-stabilized bismuth oxide composite cathodes for IT-SOFC, J. Electrochem. Soc., 2007, vol. 154, no. 10, p. B1088.
