Lednevite, Cu[PO3 (OH)]·H2O, a new mineral from Murzinskoe Au deposit, Altai Krai, Russia
- Autores: Kasatkin A.V.1, Zubkova N.V.2, Gurzhiy V.V.3, Škoda R.4, Nestola F.5, Agakhanov A.A.1, Chukanov N.V.6, Belakovskiy D.I.1, Všianský D.4
-
Afiliações:
- Fersman Mineralogical Museum RAS
- Moscow State University
- Saint Petersburg State University
- Masaryk University
- University of Padova
- Federal Research Center of Problems of Chemical Physics and Medicinal Chemistry RAS
- Edição: Volume CLIII, Nº 2 (2024)
- Páginas: 71-88
- Seção: NEW MINERALS
- URL: https://journal-vniispk.ru/0869-6055/article/view/263453
- DOI: https://doi.org/10.31857/S0869605524020049
- EDN: https://elibrary.ru/RMZPHU
- ID: 263453
Citar
Resumo

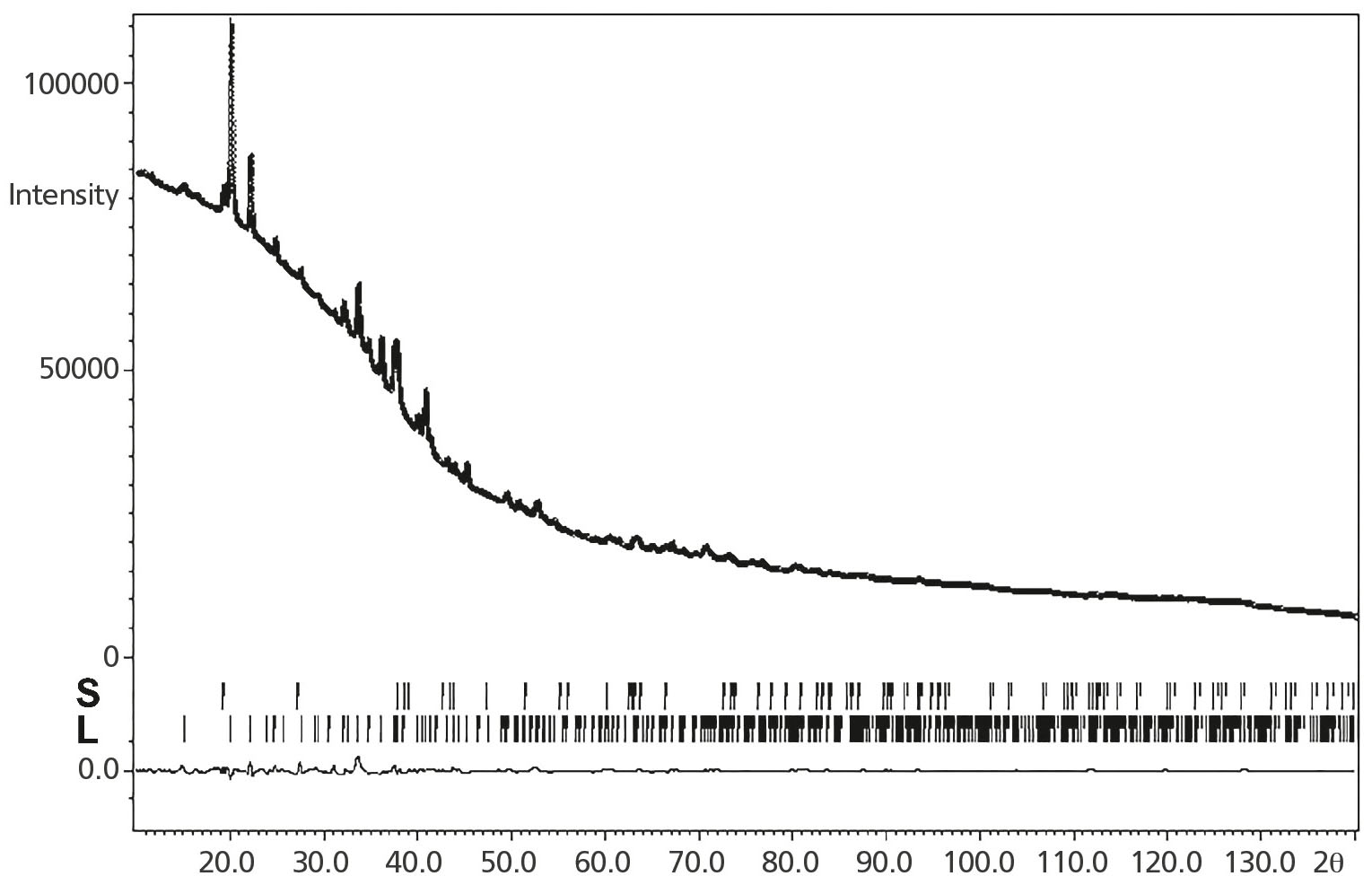

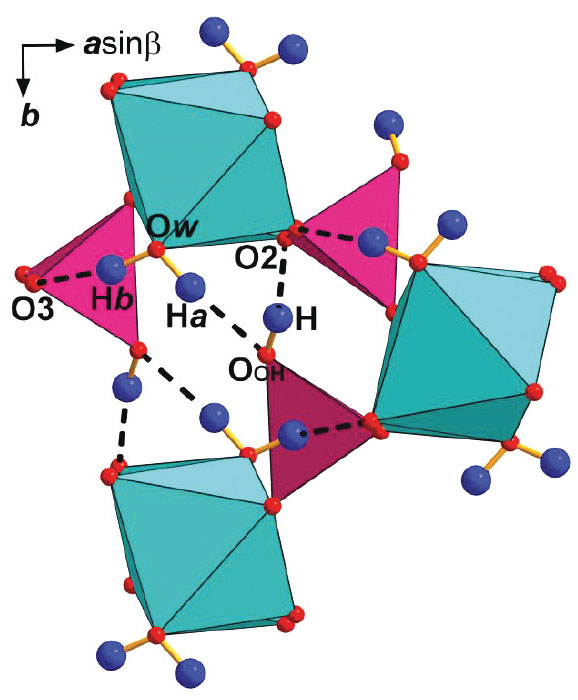

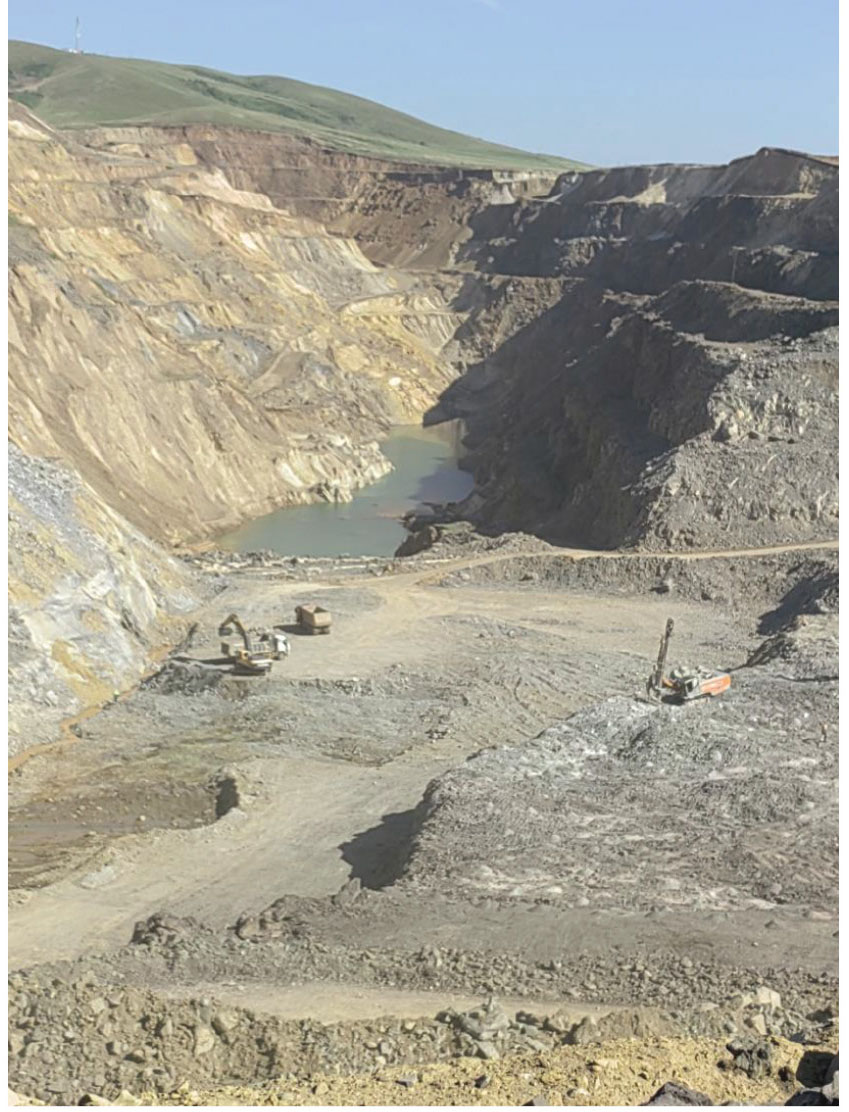

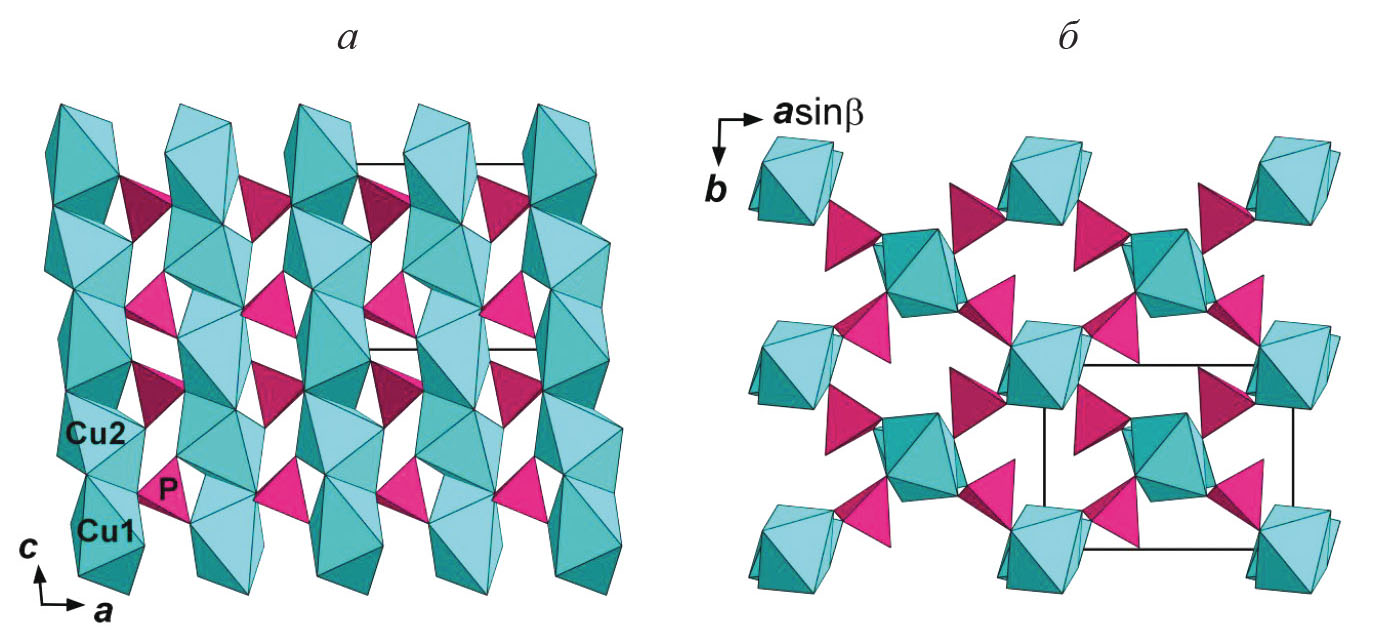

Lednevite, ideally Cu[PO3(OH)]·H2O, is a new mineral discovered at the 255 m level of the Murzinskoe Au deposit, Krasnoshchyokovskiy District, Altai Krai, Western Siberia, Russia. It forms spherulites up to 0.1 mm in diameter, composed of very thin fibers and grouped in aggregates up to 1.5 mm across. Lednevite overgrows philipsburgite crystals on a matrix of epidote-andradite skarn and quartz and associates with malachite, chrysocolla, kaolinite, goethite and P-bearing cornubite. The new mineral is transparent, has sky blue color, very pale blue streak and vitreous lustre. Cleavage is not observed. The Mohs’ hardness is ~3. Dmeas = 3.18(2) g cm–3, Dcalc = 3.196 g cm–3. The chemical composition of lednevite is (electron microprobe, wt.%; H2O by stoichiometry): CuO 40.20, ZnO 3.92, P2O5 36.29, As2O5 4.80, H2O 14.98, total 100.15. The empirical formula calculated on the basis of 3 H and 5 O apfu is (Cu0.91Zn0.09)Σ1.00[(P0.92As0.08)Σ1.00O3(OH)]·H2O. The crystal structure was refined by the Rietveld method to Rp = 0.0042, Rwp = 0.0061, Robs = 0.0354. Lednevite is monoclinic, space group P21/a, with a = 8.6459(6), b = 6.3951(4), c = 6.8210(5) A, β = 93.866(2)°, V = 376.28(4) A3 and Z = 4. The strongest lines of the powder X-ray diffraction pattern [d, A (I, %) (hkl)] are: 5.135 (100) (110), 4.648 (33) (011), 3.241 (28) (21-1), 3.095 (49) (211), 2.891 (27) (11-2), 2.775 (53) (112), 2.568 (29) (220). The new mineral is isotypic to the synthetic CuHPO4·H2O. Some optical and spectroscopic data, which could not be obtained on natural sample, were obtained from the synthesized material. The crystal structure of the synthetic analogue of lednevite was solved from single-crystal X-ray diffraction data and refined to R1 = 0.0173 for 1159 independent reflections with I > 2σ(I). All positions of H atoms were determined. Lednevite is named for Vladimir Sergeevich Lednev, amateur mineralogist from Barnaul (Altai Krai) who collected the sample with the new mineral.
Palavras-chave
Texto integral

Sobre autores
A. Kasatkin
Fersman Mineralogical Museum RAS
Autor responsável pela correspondência
Email: anatoly.kasatkin@gmail.com
Rússia, Moscow
N. Zubkova
Moscow State University
Email: anatoly.kasatkin@gmail.com
Faculty of Geology
Rússia, MoscowV. Gurzhiy
Saint Petersburg State University
Email: anatoly.kasatkin@gmail.com
Department of Crystallography, Institute of Earth Sciences
Rússia, Saint-PetersburgR. Škoda
Masaryk University
Email: anatoly.kasatkin@gmail.com
Department of Geological Sciences, Faculty of Science
Tchéquia, BrnoF. Nestola
University of Padova
Email: anatoly.kasatkin@gmail.com
Department of Geosciences
Itália, PadovaA. Agakhanov
Fersman Mineralogical Museum RAS
Email: anatoly.kasatkin@gmail.com
Rússia, Moscow
N. Chukanov
Federal Research Center of Problems of Chemical Physics and Medicinal Chemistry RAS
Email: anatoly.kasatkin@gmail.com
Rússia, Chernogolovka
D. Belakovskiy
Fersman Mineralogical Museum RAS
Email: anatoly.kasatkin@gmail.com
Rússia, Moscow
D. Všianský
Masaryk University
Email: anatoly.kasatkin@gmail.com
Department of Geological Sciences, Faculty of Science
Tchéquia, BrnoBibliografia
- Babich V.V., Zadorozhnyi M.V., Gaskov I.V., Akimtsev V.A., Naumov E.A. Murzinskoe deposit – an example of new type of gold mining in Northern Altai. In: Actual problems of ore formation and metallogeny. Novosibirsk: Geo, 2006. P. 26–28 (in Russian).
- Boudjada A. Structure crystalline de l’ orthophosphate monoacide de cuivre monohydrate CuHPO4 · H2O. Mater. Res. Bull. 1980. Vol. 15. P. 1083–1090 (in French).
- Britvin S.N., Dolivo-Dobrovolsky D.V., Krzhizhanovskaya M.G. Software for processing the X-ray powder diffraction data obtained from the curved image plate detector of Rigaku RAXIS Rapid II diffractometer. Zapiski RMO (Proc. Russian Miner. Soc.). 2017. Vol. 146(3). P. 104–107 (in Russian).
- Chukanov N.V. Infrared spectra of mineral species: Extended library. Springer-Verlag GmbH, Dordrecht–Heidelberg–New York–London, 2014. 1716 pp. doi: 10.1007/978-94-007-7128-4.
- Chukanov N.V., Chervonnyi A.D. Infrared Spectroscopy of Minerals and Related Compounds. Springer: Cham–Heidelberg–Dordrecht–New York–London, 2006. 1109 p.
- Chukanov N.V., Vigasina M.F. Vibrational (Infrared and Raman) Spectra of Minerals and Related Compounds. Springer-Verlag GmbH, Dordrecht, 2020. 1376 pp. doi: 10.1007/978-3-030-26803-9.
- Ferraris G., Ivaldi G. Bond valence vs bond length in O···O hydrogen bonds. Acta Crystallogr. 1988. Vol. B44. P. 341–344.
- Gagné O.C., Hawthorne F.C. Comprehensive derivation of bond-valence parameters for ion pairs involving oxygen. Acta Cryst. 2015. Vol. B71. P. 562–578.
- Gusev A.I. Geochemical peculiarities of gold ore mineralization of Murzinskoe ore field of Mountain Altai. Advances in current natural sciences. 2014. Vol. 9. P. 96–100 (in Russian).
- Gusev A.I., Gusev N.I. New data on substantial composition ores and minerals of Murzinskoe copper-gold deposit (Altai krai). Bull. Altai Branch Russian Geogr. Soc. 2018. Vol. 4. P. 27–36 (in Russian).
- Gusev A.I., Tabakaeva E.M. Magmatism and ore deposits of Murzinskoe gold ore field (Gorny Altai). Bull. Tomsk Polytechnic University. Geo Аssets Engineering. 2017. Vol. 328. P. 16–29 (in Russian).
- Holland T.J.B., Redfern S.A.T. Unit cell refinement from powder diffraction data: the use of regression diagnostics. Miner. Mag. 1997. Vol. 61. P. 65–77.
- Libowitzky E. (1999) Correlation of O–H stretching frequencies and O–H···O hydrogen bond lengths in minerals. Monatsh. Chem. 1999. Vol. 130. P. 1047–1059.
- Mandarino J.A. The Gladstone-Dale relationship. IV. The compatibility concept and its application. Canad. Miner. 1981. Vol. 41. P. 989–1002.
- Murzin O.V., Alyamkin A.V., Ivanov V.N. Report on the results of prospecting and appraisal work within the Murzinskiy area, carried out in 2008–2013, with the calculation of gold reserves as of 1.01.2015. 2015. 233 p. (in Russian).
- Petříček V., Dušek M., Palatinus L. Jana2006. Structure Determination Software Programs. Institute of Physics, Praha, Czech Republic, 2006.
- Rigaku Oxford Diffraction, CrysAlisPro Software system, version 1.171.41.123a. 2022.
- Sheldrick G.M. Crystal structure refinement with SHELXL. Acta Cryst. 2015. Vol. C71. P. 3–8.
- Wang A., Freeman J.J., Jolliff B.L. Understanding the Raman spectral features of phyllosilicates. J. Raman Spectr. 2015. Vol. 46. P. 829–845.
- Wright F.E. Computation of the optic axial angle from the three principal refractive indices. Amer. Miner. J. Earth Planet. Mat. 1951. Vol. 36. P. 543–556.
