PHOTOSENSITIVITY OF PbS COLLOIDAL QUANTUM DOTS BASED NANOSTRUCTURES WITH AN ENERGY BARRIER

V. S. Popov; Попов В. С.; V. V. Ivanov; Иванов В. В.; P. V. Arsenov; Арсенов П. В.; A. V. Katsaba; Кацаба А. В.; E. V. Mirofyanchenko; Мирофянченко Е. В.; A. E. Mirofyanchenko; Мирофянченко А. Е.; V. U. Gak; Гак В. Ю.; N. A. Lavrentiev; Лаврентьев Н. А.; S. B. Brichkin; Бричкин С. Б.; A. V. Gadomska; Гадомская А. В.; I. A. Shuklov; Шуклов И. А.; D. V. Dymkin; Демкин Д. В.; V. P. Ponomarenko; Пономаренко В. П.; V. F. Razumov; Разумов В. Ф.

doi:10.31857/S2686740023040120

PHOTOSENSITIVITY OF PbS COLLOIDAL QUANTUM DOTS BASED NANOSTRUCTURES WITH AN ENERGY BARRIER

作者: Popov V.S.¹^,2, Ivanov V.V.², Arsenov P.V.², Katsaba A.V.², Mirofyanchenko E.V.¹, Mirofyanchenko A.E.¹, Gak V.U.²^,3, Lavrentiev N.A.¹^,2, Brichkin S.B.²^,3, Gadomska A.V.²^,3, Shuklov I.A.², Dymkin D.V.², Ponomarenko V.P.¹^,2, Razumov V.F.²^,3
隶属关系:
1. Enterprise “RD&P Center “Orion”, Russian Federation State Research Center
2. Moscow Institute of Physics and Technology (National Research University)
3. Federal Research Center of Problems of Chemical Physics and Medicinal Chemistry, Russian Academy of Sciences
期: 卷 511, 编号 1 (2023)
页面: 78-82
栏目: ТЕХНИЧЕСКИЕ НАУКИ
URL: https://journal-vniispk.ru/2686-7400/article/view/135950
DOI: https://doi.org/10.31857/S2686740023040120
EDN: https://elibrary.ru/UMQVYU
ID: 135950

如何引用文章

全文:

开放存取

##reader.subscriptionAccessGranted##
受限制的访问

订阅存取

详细
作者简介
参考
补充文件
统计

详细

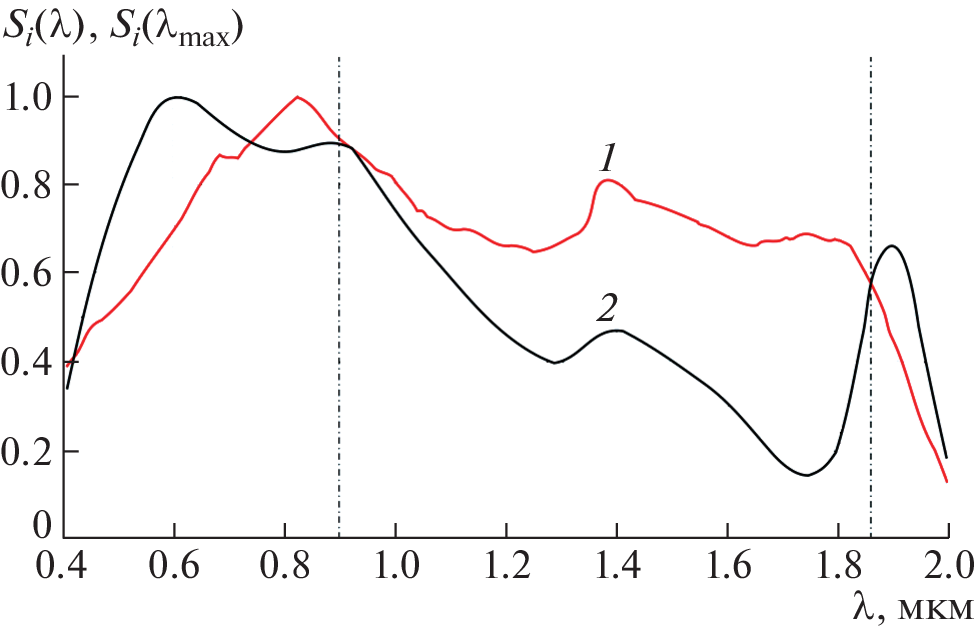

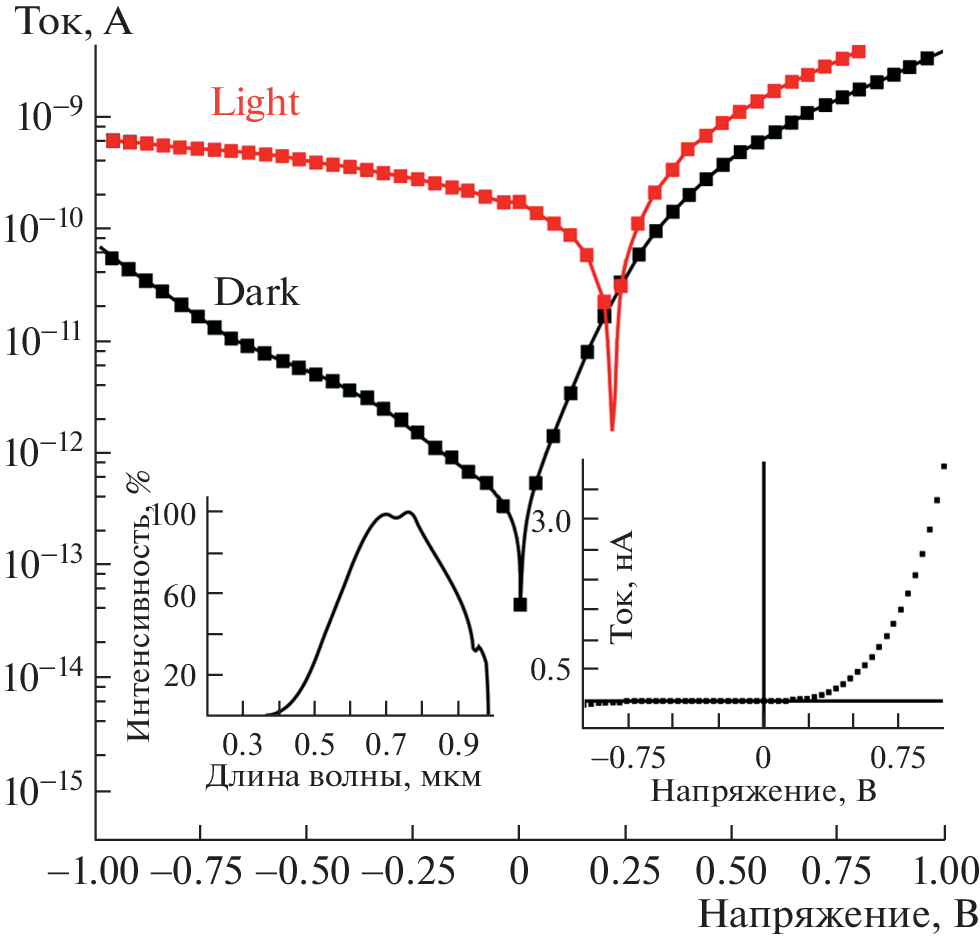

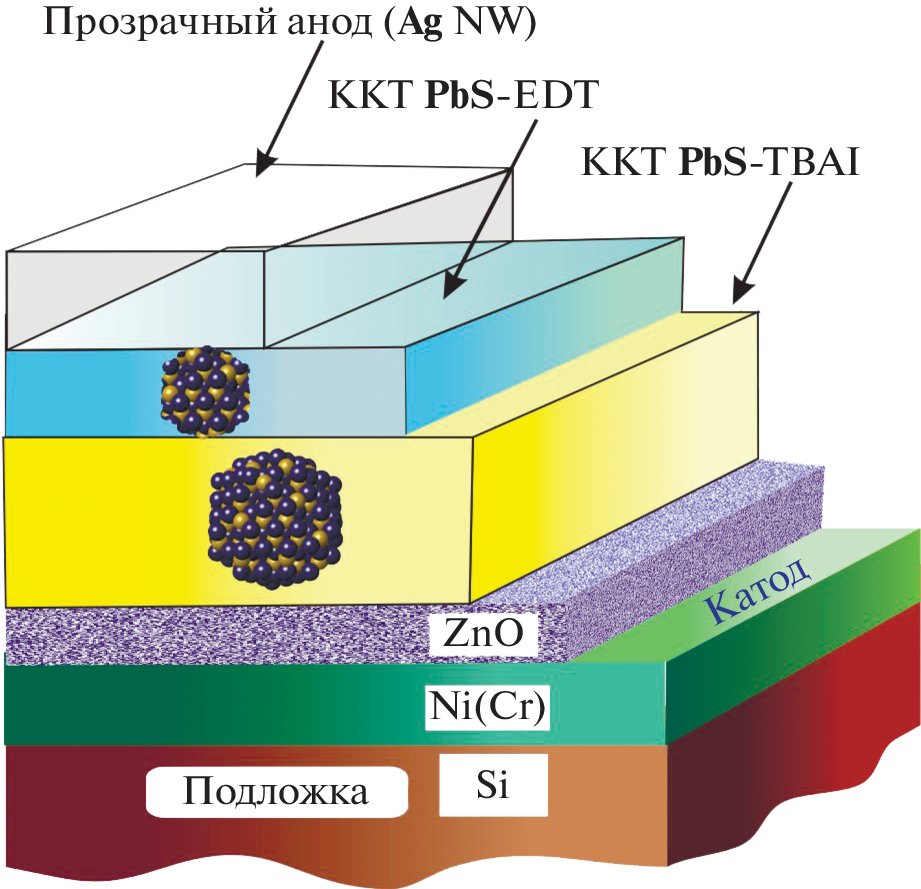

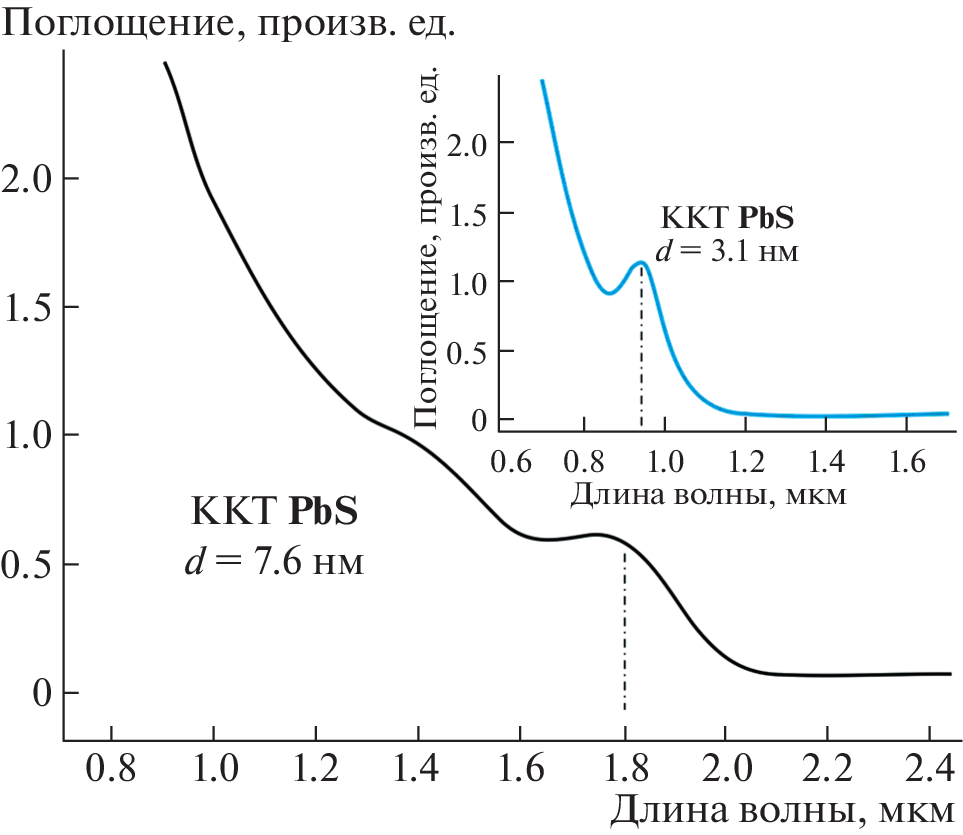

A new architecture of photosensitive elements for the near (0.7–1.4 μm) and short-wavelength (1.4–3.0 μm) infrared regions of the spectrum based on hybrid nanostructures consisting of PbS colloidal quantum dots and functional layers of ZnO and AgNW silver nanowires is proposed. Small-sized (12 × 12 μm) photosensitive elements with an energy barrier at the contact between layers of n- and p-type CQDs have been studied. The current-voltage characteristics, spectral dependences of optical absorption and relative spectral photosensitivity of S_i(λ)/S_i(λ_max) barrier structures at room temperature have been studied. It is shown that the proposed architecture of barrier structures provides photosensitivity in a wide spectral range from 0.4 µm to 2.0 µm. An excess of the average value of the relative spectral sensitivity S_i(λ)/S_i(λ_max) about 1.5 times compared to those previously observed in the wavelength range of 0.9–1.85 μm for barrier nanostructures from PbS CQDs was found.

关键词

quantum dot, optical absorption, photosensor, energy barrier

参考

Zandian M., Farris M., McLevige W. et al. Performance of Science Grade HgCdTe H4RG-15 Image Sensors // Proc. of SPIE. 2016. 9915, 99150F1. https://doi.org/10.1117/12.2233664
Zhang J.-X., Wang W., Li Z.-B.et al. Development of a High Performance 1280 × 1024 InGaAs SWIR FPA Detector at Room Temperature // Front Phys. 2021. V. 9. 678192. https://doi.org/10.3389/fphy.2021.678192
Thom R. High density infrared detector arrays // Patent US 4039833. 1977.
Шуклов И.А., Разумов В.Ф. Коллоидные квантовые точки халькогенидов свинца для фотоэлектрических устройств // Успехи химии. 2020. Т. 89. № 3. С. 379–391. https://doi.org/10.1070/RCR4917
Gregory C., Hilton A., Violette K. et al. Colloidal quantum dot sensor bandwidth and thermal stability: progress and outlook // Proc. of SPIE. 2022. 12107, 1210705. https://doi.org/10.1117/12.2618320
Yuan Y., Xu J.-L., Zhang J.-Y. et al. Interface Engineering for High Photoresponse in PbS Quantum-Dot Short-Wavelength Infrared Photodiodes // IEEE Electron Device Letters. 2022.V. 43. P. 1275–1278. https://doi.org/10.1109/LED.2022.3183602
Pejovic V., Georgitzikis E., Lee J. et al. Infrared Colloidal Quantum Dot Image Sensors // IEEE Transactions on Electron Device. 2021. V. 69. P. 2840–2850. https://doi.org/10.1109/TED.2021.3133191
Попов В.С., Пономаренко В.П., Попов С.В. Фото- и наноэлектроника на основе двумерных 2D-материалов (обзор). Ч. III. Фотосенсоры на основе графена, графеноподобных и родственных моноатомных 2D-наноматериалов // Успехи прикладной физики. 2022. Т. 10. № 2. С. 144–169. https://doi.org/10.51368/2307-4469-2022-10-2-144-169
Пономаренко В.П., Попов В.С., Попов С.В. Фотоэлектроника на основе квазинульмерных структур (обзор) // Успехи прикладной физики. 2021. Т. 9. № 1. С. 25–67. https://doi.org/10.51368/2307-4469-2021-9-1-25-67
Brittman S., Colbert A.E., Brintlinger T.H. et al. Effects of a Lead Chloride Shell on Lead Sulfide Quantum Dots // J. Phys. Chem. Lett. 2019. V. 10. P. 1914–1918. https://doi.org/10.1021/acs.jpclett.9b00786
Mayer R. Elemental Sulfur and its Reactions. Organic Chemistry of Sulfur / Ed. S. Oae. Springer-Verlag, 1977. P. 33–69.
Beek W.J.E., Wienk M.M., Kemerink M. et al. Hybrid Zinc Oxide Conjugated Polymer Bulk Heterojunction Solar Cells // J. Phys. Chem. B. 2005. V. 109. P. 9505–9516. https://doi.org/10.1021/jp050745x
Langley D., Giusti G., Mayousse C. et al. Flexible transparent conductive materials based on silver nanowire networks: a review // Nanotechnology. 2013. V. 24. 452001 (20 p.) https://doi.org/10.1088/0957-4484/24/45/452001
Kao K.C., Hwang W. (Electrical Transport in Solids. Oxford: Pergamon Press, 1981. 663 p.
Reich K.V. Conductivity of quantum dot arrays // Physics-Uspekhi. 2020. V. 63. P. 994–1084. https://doi.org/10.3367/UFNe.2019.08.038649
Klem E., Lewis J., Gregory C. et al. Room Temperature SWIR Sensing from Colloidal Quantum Dot Photodiode Arrays // Proc. of SPIE. 2013. 8704, 870436. https://doi.org/10.1117/12.2019521
Klem E.J.D., Lewis J., Gregory C. et al. Low Cost SWIR Sensors: Advancing the Performance of ROIC- Integrated Collodial Quantum Dot Photodiode Arrays // Proc. of SPIE. 2014. 9070, 907039. https://doi.org/10.1117/12.2054215
Klem E.J.D., Gregory C., Temple D. et al. PbS Colloidal Quantum Dot Photodiodes for Low-cost SWIR Sensing // Proc. of SPIE. 2015. 9451, 945104. https://doi.org/10.1117/12.2178532
Hinds S., Klem E., Gregory C. et al. Extended SWIR High Performance and High Definition Colloidal Quantum Dot Imagers // Proc. of SPIE. 2020. 11407, 1140707. https://doi.org/10.1117/12.2559115
