Estimative engineering geological zoning for allocation of municipal solid waste landfills (by the example of Vladimir Region, Russia)

Capa

Citar

Texto integral

Acesso aberto Acesso aberto
Acesso é fechado Acesso está concedido
Acesso é fechado Somente assinantes

Resumo

The paper describes the scientific and methodological fundamentals for the assessment of engineering geological conditions at platform areas for selection of environmentally friendly sites for allocating municipal solid waste landfills. By the example of Central Federal region of Russia and its part, Vladimir area, the algorithm of assessing the geoenvironment suitability is shown proceeding from the comprehensive consideration of geological structure, lithology of ground massifs, hydrogeology, and geohazards. The typological zoning of geoenvironment is performed in three stages: the first stage includes the small-scale zoning for the preliminary estimation of ground conditions of large regions at the federal level; the second stage comprises the medium-scale zoning for the comprehensive assessment of the territory according to the complex of natural conditions in order to distinguish favorable areas at a regional level; the third stage stands for the large-scale zoning for outlining and comparison of particular plots for MSW disposal proceeding from the score assessment of factors. For each distinguished type of ground conditions, the additional eningeering protective measures for landfill arrangement are assigned.

Texto integral

Acesso é fechado

Sobre autores

V. Osipov

Sergeev Institute of Environmental Geoscience, Russian Academy of Sciences

Email: o_eremina@mail.ru
Rússia, Ulanskii per. 13, str. 2, Moscow, 101000

O. Eremina

Sergeev Institute of Environmental Geoscience, Russian Academy of Sciences

Autor responsável pela correspondência
Email: o_eremina@mail.ru
Rússia, Ulanskii per. 13, str. 2, Moscow, 101000

I. Kozliakova

Sergeev Institute of Environmental Geoscience, Russian Academy of Sciences

Email: o_eremina@mail.ru
Rússia, Ulanskii per. 13, str. 2, Moscow, 101000

Yu. Mamaev

Sergeev Institute of Environmental Geoscience, Russian Academy of Sciences

Email: o_eremina@mail.ru
Rússia, Ulanskii per. 13, str. 2, Moscow, 101000

I. Kozhevnikova

Sergeev Institute of Environmental Geoscience, Russian Academy of Sciences

Email: o_eremina@mail.ru
Rússia, Ulanskii per. 13, str. 2, Moscow, 101000

N. Anisimova

Sergeev Institute of Environmental Geoscience, Russian Academy of Sciences

Email: o_eremina@mail.ru
Rússia, Ulanskii per. 13, str. 2, Moscow, 101000

Bibliografia

  1. Burova, V.N., Kozlyakova, I.V., Eremina, O. N.Problems in municipal solid waste disposal and risk assessment by the example of the Central federal region, Russia. Geoekologiya, 2022, no. 6, pp. 3–16. (in Russian)
  2. [Geology of the USSR. Volume 4. Centre of the European part of the USSR. Geological description]. Moscow, Nedra Publ., 1971, 742 p. (in Russian)
  3. Gol’dberg, V.M. [Interplay between the groundwater and environment pollution]. Leningrad, Gidrometeoizdat Publ., 1987, 248 p. (in Russian)
  4. [State geological map of the Russian Feederation, scale 1:1000000]. St. Petersburg, VSEGEI Publ., 1999. (in Russian)
  5. Zaikanov, V.G., Zaikanova, I.N., Buldakova, E.V. [Geoecological and landscape ecological analysis of landfill sites in Moscow oblast]. In: Sergeevskie chteniya, issue 20. Proc. of the Sci. Conference March 22, 2018, Moscow, RUDN Publ., 2018, pp. 65–73 (in Russian)
  6. [Engineering geology of the USSR, Volume 1. The Russian Platform.] I. S. Komarov, Ed., Mosk. Univ. Publ., 1978, 527 p. (in Russian)
  7. Kozliakova, I.V., Kozhevnikova, I.A., Anisimova, N.G., Ivanov, P.V. [Engineering geological zoning of the Central federal okrug in Russia by the conditions of placing enterprises and disposal sites of municipal solid waste]. In: Sergeevskie chteniya, issue 20. Proc. of the Sci. Conference March 22, 2018, Moscow, RUDN Publ., 2018, pp. 74–76. (in Russian)
  8. Kozliakova, I.V., Kozhevnikova, I.A., Eremina O.N., Anisimova, N.G. [Methodological principles of assessing geoenvironment for allocation of municipal solid waste management facilities]. Geoekologiya, 2021, no. 1, pp. 48–58. https://doi.org/10.31857/S0869780921010045 (in Russian)
  9. Osipov, V.I. [Management of municipal solid wastes as a Federal ecological project]. Geoekologiya, 2019, no. 3, pp. 3–11. (in Russian)
  10. Osipov, V.I., Galitskaya, I.V., Zaikanov, V.G. [Landfill technology of waste management]. Geoekologiya, 2022, no.3, pp. 3–15. (in Russian)
  11. Osipov, V.I., Mamaev, Yu.A., Kozliakova, I.V. Territorial placement of solid municipal waste landfills. Herald of the Russian Academy of Sciences, 2020, vol. 90, no. 3, pp. 338–344. https://doi.org/10.1134/S101933162002015X (in Russian)
  12. Osipov, V.I., Sokolov, V.N. [Clays and their properties]. Moscow, Geos Publ., 2013, 576 p. (in Russian)
  13. Ekzaryan, V.N. [Geoecology and the environment conservation]. Moscow, Shchit-M Publ., 2009. (in Russian)
  14. Ekzaryan, V.N. [Methodological fundamnetals of zoning territories for selecting places for the waste storage sites]. In: Sergeevskie chteniya, issue 20. Proc. of the Sci. Conference March 22, 2018, Moscow, RUDN Publ., 2018, pp. 97–101. (in Russian)
  15. Yuganova, T.I. [Selection of sites for allocation of waste disposal objects based on the multicriteria decision-making methods] Geoekologiya, 2019, no. 4, pp. 79–93. https://doi.org/10.31857/S0869-78092019479-93 (in Russian)
  16. Balogun-Adeleye, R.M., Longe, E.O., and Aiyesimoju, K.O. Environmental assessment of municipal solid waste (MSW) disposal options: A case study of Olushosun landfill, Lagos State // 1st Int. Conf. on Sustainable Infrastructural Development IOP Conf. Series: Materials Science and Engineering. 2019, no. 640, 012091. IOP Publishing. https://doi.org/10.1088/1757-899X/640/1/012091
  17. Djokanović, S., Abolmasov, B., Jevremović, D. GIS application for landfill site selection: a case study in Pančevo, Serbia. Bull. Eng. Geol. Environ., 2016, vol. 75, is. 3, pp. 1273–1299. https://doi.org/10.1007/s10064-016-0888-0
  18. Ghobadi, M.H., Taheri, M., Taheri, K. Municipal solid waste landfill siting by using analytical hierarchy process (AHP) and a proposed karst vulnerability index in Ravansar County, west of Iran. Environ Earth Sci., 2017, no. 76, p. 68. https://doi.org/10.1007/s12665-017-6392-4
  19. Kozliakova, I.V., Kozhevnikova, I.A., Eremina, O.N., Anisimova, N.G. Engineering geological typification and zoning territory for allocation of municipal solid waste management facilities. Periodico Tche Quimica, 2020, vol. 17, no. 35, pp. 1124–1136.
  20. Mondelli, G., Giacheti, H.L., Gimenez Boscov, M.E. et al. Geoenvironmental site investigation using different techniques in a municipal solid waste disposal site in Brazil. Environ. Geol., 2007, no. 52, pp. 871–887. https://doi.org/10.1007/s00254-006-0529-1
  21. Phukon, P., Phukan, S., Goswami, R. Municipal solid waste (MSW) disposal site selection in and around Guwahati city using GIS. Department of Geological Sciences, Gauhati University, Guwahati-781014, 2005.
  22. Schueler, A.S., Mahler, C.F. Classification method for urban solid waste disposal sites. Journal of Environmental Protection, 2011, vol. 2, pp. 473–481. https://doi.org/10.4236/jep.2011.24055

Arquivos suplementares

Arquivos suplementares
Ação
1. JATS XML

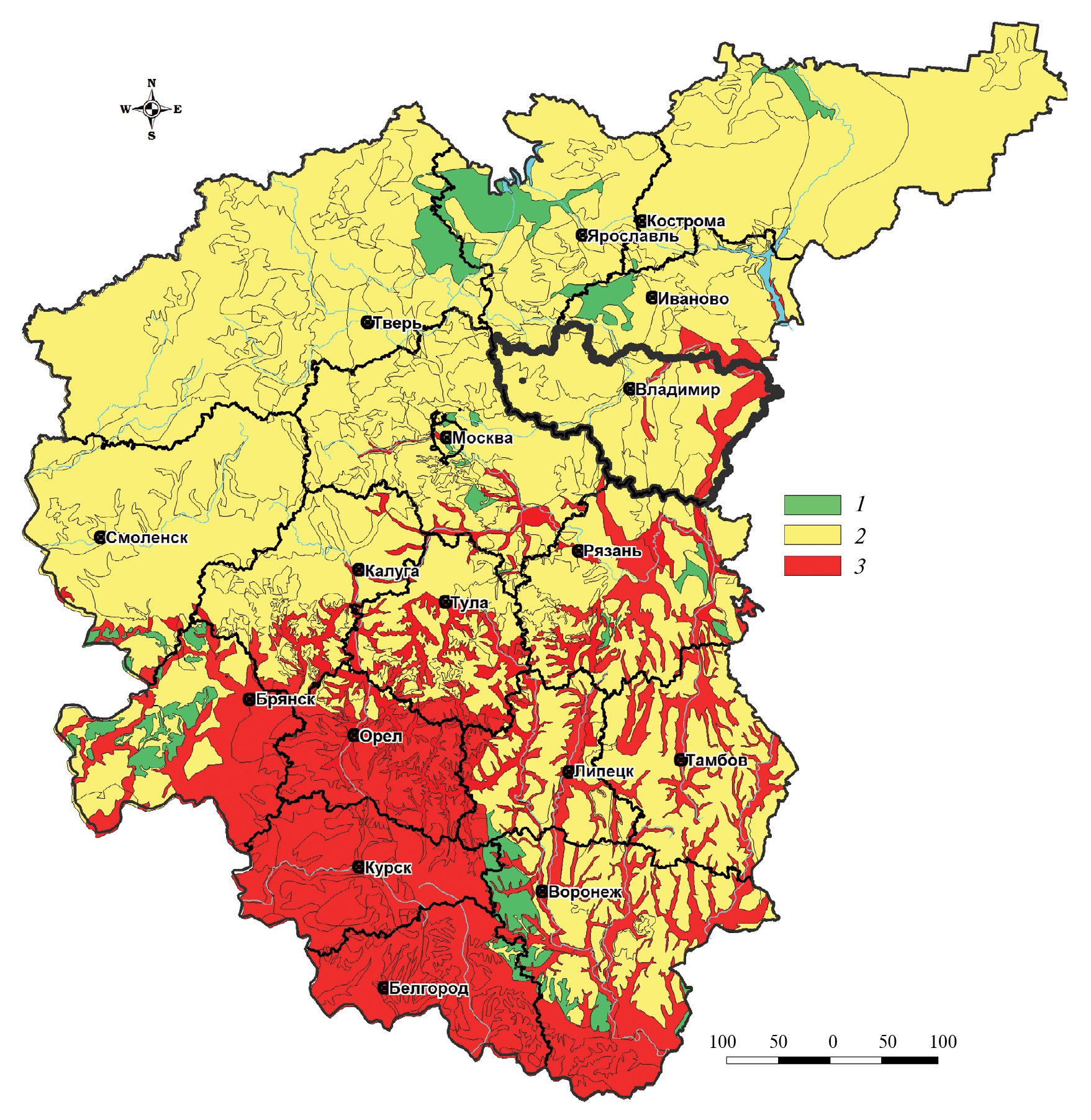

2. Fig. 1. The position of the Vladimir region on the generalized map of small-scale zoning of the Central Federal District for the purpose of separating landfills. Symbols: 1 — favorable, 2 — conditionally favorable, 3 — unfavorable.

Baixar (1MB)

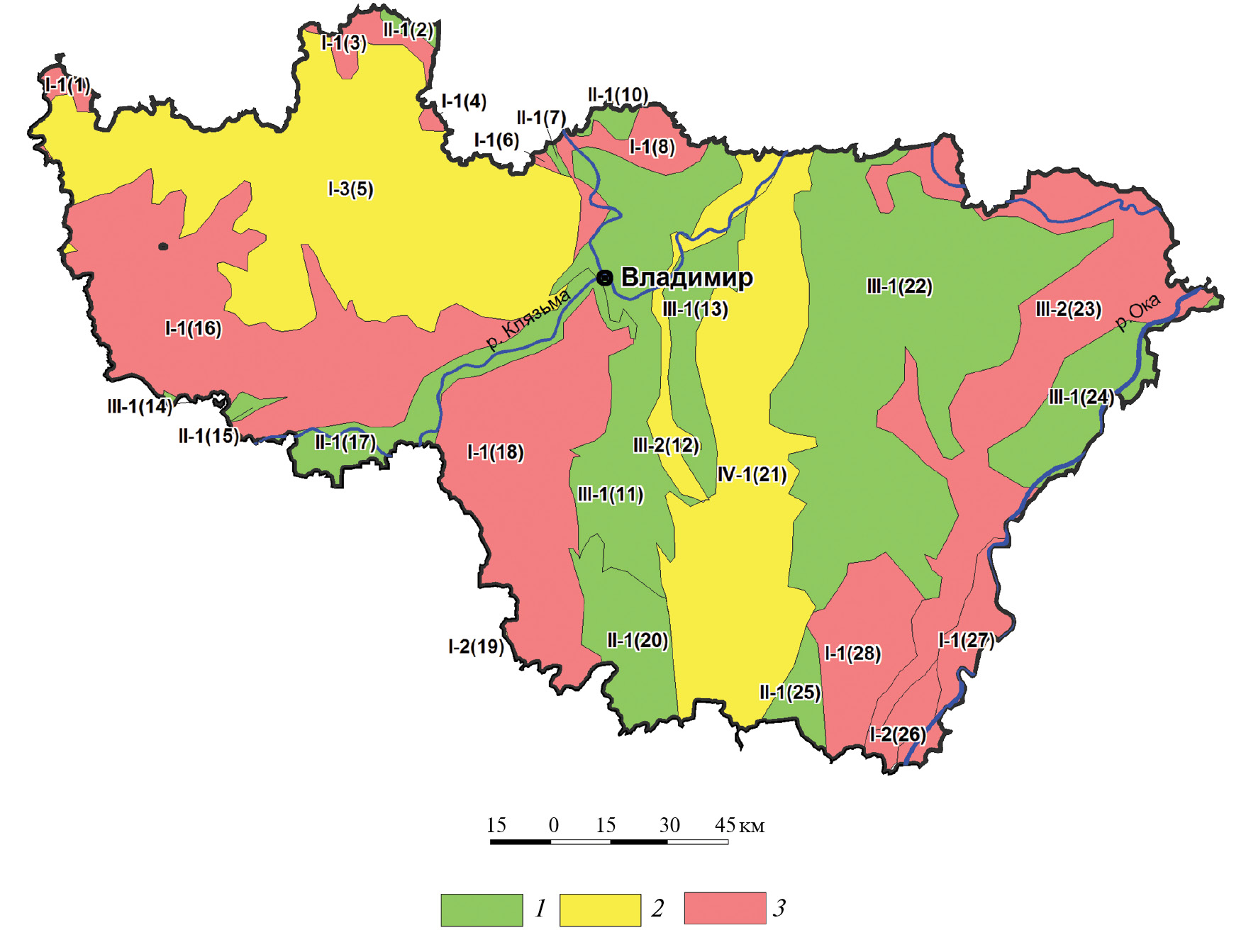

3. Fig. 2. A schematic map of the favorability of the territory of the Vladimir region for the placement of MSW under ground conditions. Symbols: 1 — favorable, 2 — conditionally favorable, 3 — unfavorable. The numbers in parentheses are but a measure of the districts.

Baixar (331KB)

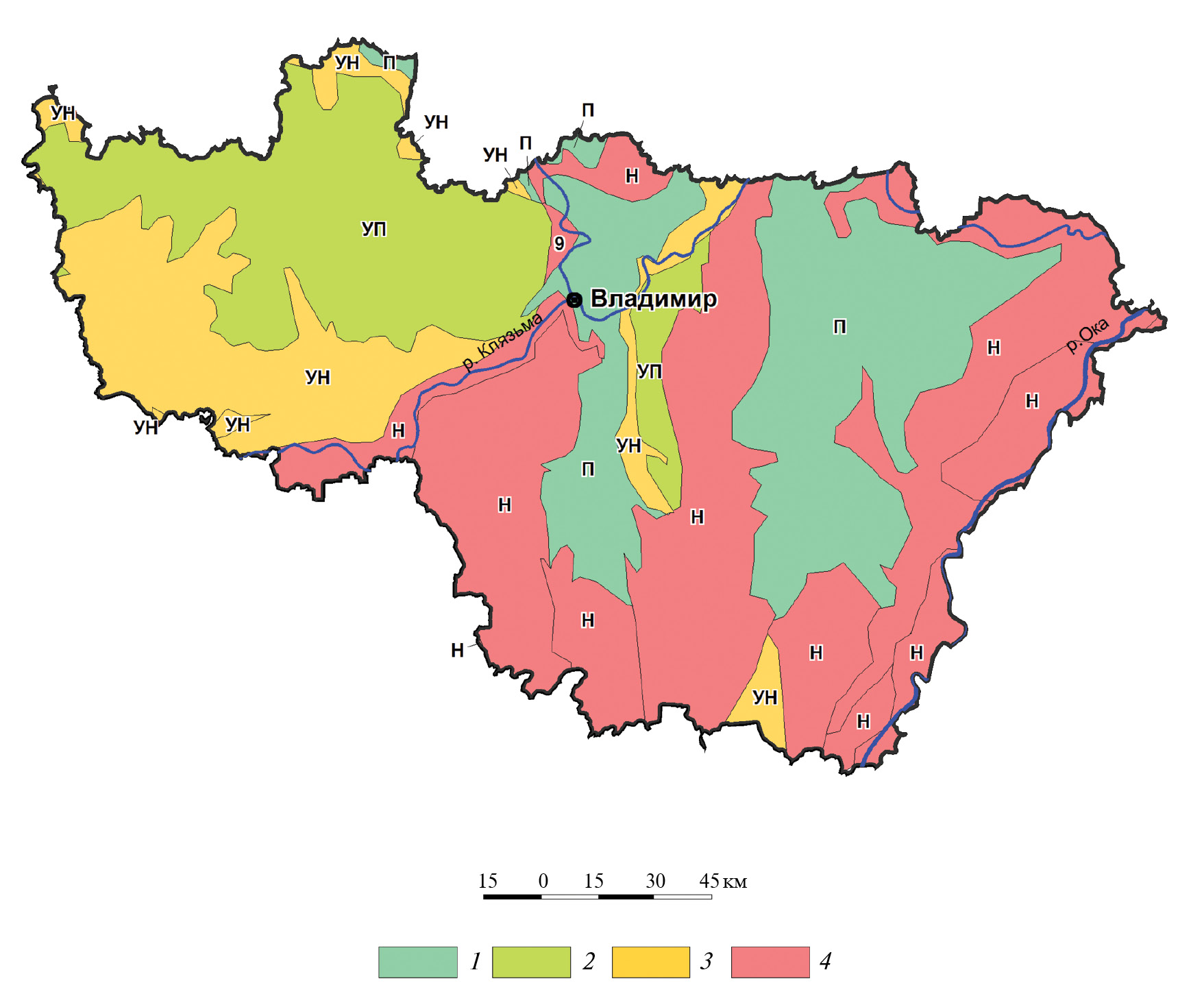

4. Fig. 3. A schematic map of the suitability of the natural conditions of the Vladimir region for the placement of MSW facilities. 1 — suitable; 2 — conditionally suitable; 3 — conditionally unsuitable; 4 — unsuitable. The letter indexes on the map correspond to the designations of the complex index of suitability of territories in Table 4.

Baixar (296KB)

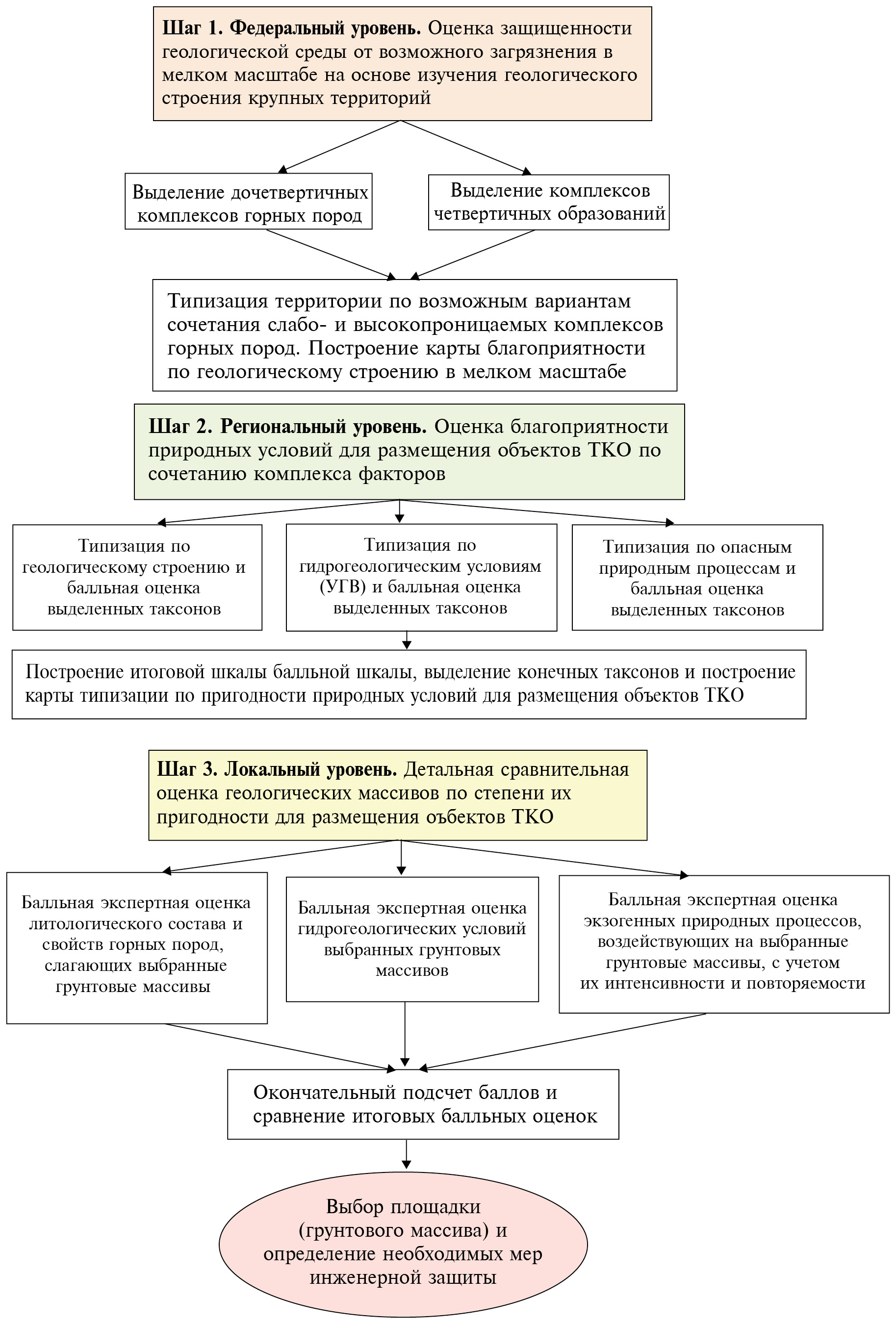

5. Fig. 4. Block diagram of a step-by-step assessment of the suitability of the geological environment for the placement of MSW facilities.

Baixar (768KB)

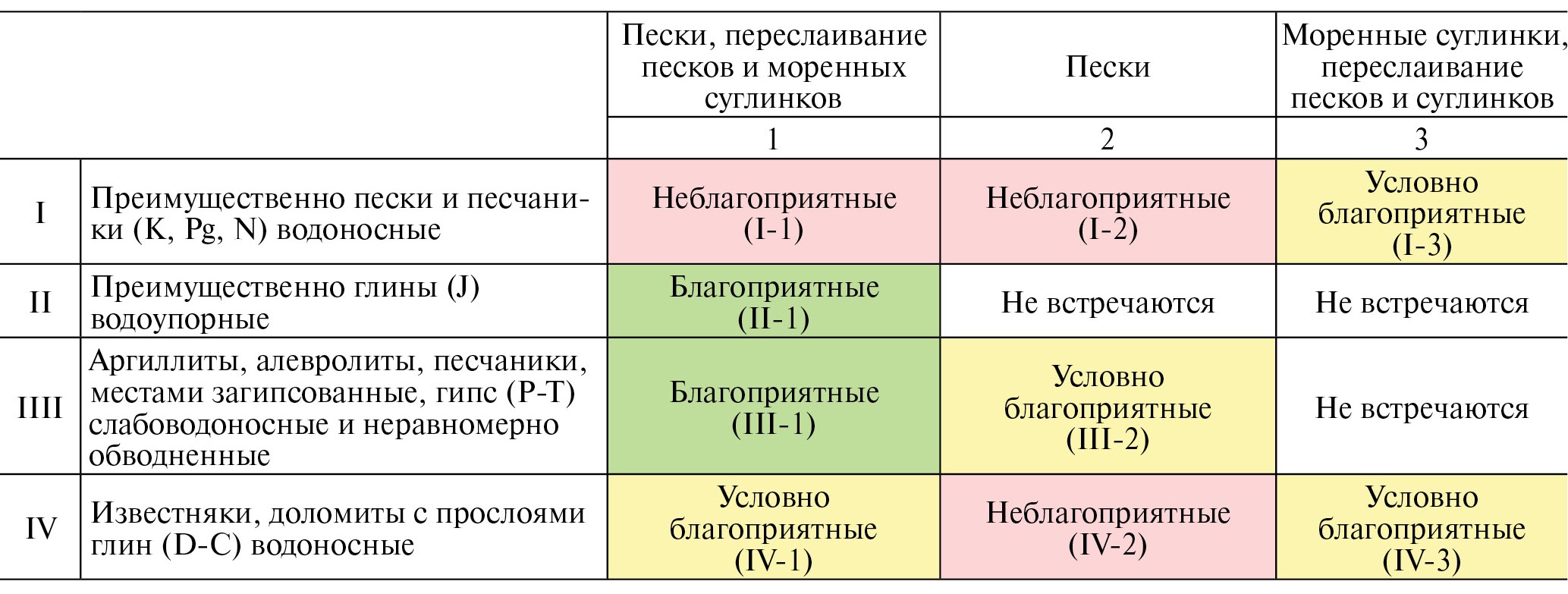

6. Table 1. Typification of the soil strata found on the territory of the Vladimir region, according to their favorability for the placement of MSW

Baixar (295KB)

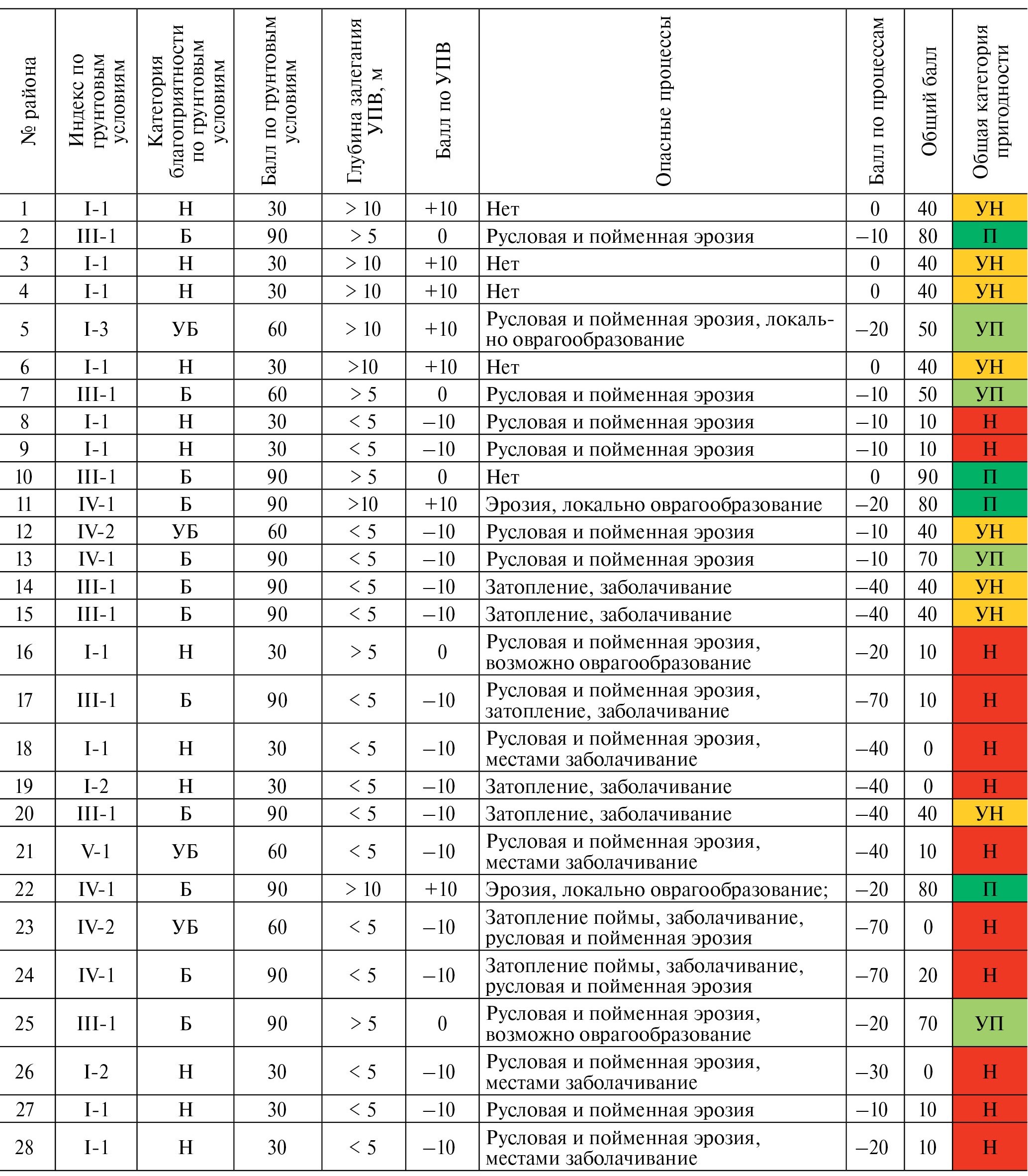

7. Table 4. Comprehensive assessment of the suitability of territories according to natural conditions for the placement of MSW

Baixar (920KB)
