Structural features and electrical properties of si(al) thermal migration channels for high-voltage photovoltaic converters
- Authors: Lomov A.A.1, Seredin B.M.2, Martyushov S.Y.3, Tatarintsev A.A.1, Popov V.P.2, Malibashev A.V.2
-
Affiliations:
- Valiev Institute of Physics and Technology of Russian Academy of Sciences
- Platov South Russian State Polytechnic Institute (NPI)
- Technological Institute for Superhard and Novel Carbon Materials
- Issue: Vol 53, No 2 (2024)
- Pages: 119-131
- Section: ДИАГНОСТИКА
- URL: https://journal-vniispk.ru/0544-1269/article/view/262672
- DOI: https://doi.org/10.31857/S0544126924020018
- ID: 262672
Cite item
Open Access
Access granted
Abstract
The results of a study of the structural features and electrical properties of Si(Al) through thermomigration p-channels in a silicon wafer are presented. Structural studies were performed using X-ray methods of projection topography, diffraction reflection curves and scanning electron microscopy. It is shown that the channel-matrix interface is coherent without the formation of mismatch dislocations. The possibility of using an array of thermomigration p-channels of 15 elements to form a monolithic photovoltaic solar module in a Si(111) silicon wafer based on p-channels with a width of 100 microns with walls in the plane is shown. The monolithic solar module has a conversion efficiency of 13.1%, an idle voltage of 8.5 V and a short-circuit current density of 33 mA/cm².
Full Text
About the authors
A. A. Lomov
Valiev Institute of Physics and Technology of Russian Academy of Sciences
Author for correspondence.
Email: lomov@ftian.ru
Russian Federation, Moscow
B. M. Seredin
Platov South Russian State Polytechnic Institute (NPI)
Email: lomov@ftian.ru
Russian Federation, Novocherkassk
S. Yu. Martyushov
Technological Institute for Superhard and Novel Carbon Materials
Email: lomov@ftian.ru
Russian Federation, Troitsk
A. A. Tatarintsev
Valiev Institute of Physics and Technology of Russian Academy of Sciences
Email: lomov@ftian.ru
Russian Federation, Moscow
V. P. Popov
Platov South Russian State Polytechnic Institute (NPI)
Email: lomov@ftian.ru
Russian Federation, Novocherkassk
A. V. Malibashev
Platov South Russian State Polytechnic Institute (NPI)
Email: lomov@ftian.ru
Russian Federation, Novocherkassk
References
- Markvart T., Castafier L. Practical Handbook of Photovoltaics: Fundamentals and Applications. Oxford — New York — Tokyo: Elsevier Science Ltd., 2003. 984 р.
- Philipps S.P., Cristóbal López A., Martí Vega A., López L. Present Status in the Development of III—V Multi-Junction Solar Cells, Next Generation of Photovoltaics, Springer Series in Optical Sciences. 2012. V. 165. Berlin, Heidelberg: Springer. https://doi.org/10.1007/978-3-642-23369-2_1
- Da X., Chen C., Deng Y., Wood A., Yang G., Fei C., Huang J. Pathways to High Efficiency Perovskite Monolithic Solar Modules // PRX ENERGY. 2022. V. 1. Р. 013004. https://doi.org/10.1103/PRXEnergy.1.013004
- Ryan C.Ch., Remco W.A., Havenith Jan. C., Hummelen L., Koster Jan A., Loi M.A. Modern Plastic Solar Cells: materials, mechanisms and modeling // Materials Today. 2013. V. 16. P. 281.
- France R.M., Geisz J.F., Song T., Olavarria W., Young M., Kibbler A., Steiner M.A. Triple-junction solar cells with 39.5% terrestrial and 34.2% space efficiency enabled by thick quantum well superlattices // Joule. 2022. V. 6. No. 5. Р. 1121–1135. https://doi.org/10.1016/j.joule.2022.04.024
- Anthony T.R., Cline H.E. Lamellar devices processed by thermomigration // J. Appl. Phys. 1977. V. 48. P. 3943–3949.
- Pfann W.G. Zone Melting. 2nd Ed. New York: Wiley, 1963. 236 p.
- Lozovskii V.N., Lunin L.S., Popov V.P. Zonnaya perekristallizaciya gradientom temperatury poluprovodnikovyh materialov. M.: Metallurgiya, 1987. 232 p. [in Russian].
- Lozovskii V.N., Udaynskaya A.I. Investigation of the Mechanism of Silicon Crystallization from an Aluminum-Silicon Melt by Temperature Gradient Zone Melting // Sov. Phys. Crystallography. 1968. V. 13. No. 3. P. 565–566.
- Lozovskii V.N., Popov V.P. On the stability of the growth front during crystallization by the moving solvent method // Sov. Phys. Crystallography. 1970. V. 15. No. 1. P. 149–154.
- Cline H.E., Anthony T.R. Thermomigration of aluminum-rich liquid wires through silicon // J. Appl. Phys. 1976. V. 47. No. 6. P. 2332–2336.
- Buchin E.Y., Denisenko Y.I., Simakin S.G. The structure of thermomigration channels in silicon // Tech. Phys. Lett. 2004. V. 30. No. 3. P. 205–207.
- Norskog A.C., Warner Jr.R.M. A horizontal monolithic series-array solar battery employing thermomigration // J. Appl. Phys. 1981. V. 52. No. 3. P. 1552–1554.
- Lozovskii V.N., Lomov A.A., Lunin L.S., Seredin B.M., Chesnokov Yu.M. Crystal Defects in Solar Cells Produced by the Method of Thermomigration // Semiconductors. 2017. V. 51. No. 3. P. 285–289.
- Eslamian M., Saghir M.Z. Thermodiffusion Applications in MEMS, NEMS and Solar Cell Fabrication by Thermal Metal Doping of Semiconductors // FDMP. 2012. V. 8. No. 4. P. 353–380.
- Renyan W.R. Silicon Semiconductor Technology. McGraw-Hill: McGRAW — Hill Book Company, 1965. 277 p.
- Jasurbek G., Rayimjon A., Bobur R. Effect of the Local Mechanical Stress on Properties of Silicon Solar Cell // J. of Mech. Eng. Res. and Devel. 2021. V. 44. No. 9. P. 125–133.
- Lomov A.A., Punegov V.I., Seredin B.M. Laue X-ray diffraction studies of the structural perfection of Al-doped thermomigration channels in silicon // J. Appl. Cryst. 2021. V. 54. P. 588–596. https://doi.org/10.1107/S1600576721001473
- Lomov A.A., Punegov V.I., Belov A.Yu., Seredin B.M. High resolution X-ray Bragg diffraction in Al-doped thermomigration channels in silicon // J. Appl. Cryst. 2022. V. 55. P. 558–568. https://doi.org/10.1107/S1600576722004319
- Morillon B. Etude de la thermomigration de l’aluminium dans le silicium pour la réalisation industrielle de murs d’isolation dans les composants de puissance bidirectionnels. Doct. Thesis, Toulouse: INSA de Toulouse, 2002. https://tel.archives-ouvertes. fr/tel-00010945/
- Seredin B.M., Lomov A.A., Zaichenko A.N., Gavrus I.V., Pashchenko A.S., Malibashev A.V., Ruban L.V. Elektricheskie svojstva kremnievyh vysokovol’tnyh fotopreobrazovatelej na osnove skvoznyh termomigracionnyh kanalov // Fizika. Sankt-Peterburg: Politekh-Press, 2021. P. 456–458 [in Russian].
- Seredin B.M., Popov V.P., Gavrus I.V., Zaichenko A.N. Primenenie lokal’noj perekristallizacii kremniya alyuminiem v fotovol’taike // Mokerovskie chteniya. Moskva: NIYAU MIFI, 2023. P. 146–147 [in Russian].
- Lozovskij V.N., Popov V.P., Darovskij N.I. Startovaya nestabil’nost’ linejnyh i tochechnyh zon pri zonnoj plavke s gradientom temperatury. Sbornik Trudov, Kristallizaciya i Svojstva Kristallov. Novocherkassk, 1970. V. 208. P. 39–43 [in Russian].
- Poluhin A.S. Termomigraciya neorientirovannyh linejnyh zon v kremnievyh plastinah (100) dlya proizvodstva chipov silovyh poluprovodnikovyh priborov // Komponenty i tekhnologii. 2008. No. 11. P. 97–100 [in Russian].
- Yoshikawa T., Morita K. Solid Solubilities and Thermodynamic Properties of Aluminum in Solid Silicon // J. Elect. Society. 2003. V. 150. No. 8. https//doi: 10.1149/1.1588300
- Seredin B. M., Kuznetsov V. V., Lomov A. A., Zaichenko A.N., Martyushov S.Yu. Precision silicon doping with acceptors by temperature gradient zone melting // J. Phys: Conf. Series. 2019. P. 39–46.
- Bowen D.K., Tanner B.K. High Resolution X-ray Diffractometry and Topography. London, Bristol: Taylor & Francis, 1998. 252 p.
- Sah C.T., Noyce R.N., Shockley W. Carrier Generation and Recombination in p—n Junction and p—n Junction Characteristics // Proceedings of the IRE. 1957. V. 45. No. 9. P. 1228–1243.
- Sze S. M., Kwok K. Ng. Physics of semiconductor devices // A. John Wiley & Sons. Inc. Publ. 2007. 832 p.
- Lomov A.A., Seredin B.M., Martyushov C. Yu., Zaichenko A.N., Shul’pina I.L. The Formation and Structure of Thermomigration Silicon Channels Doped with Ga // Technical Physics. 2021. V. 66. No. 3. P. 453–460. https://doi.org/10.1134/S1063784221030178
Supplementary files
Supplementary Files
Action
1.
JATS XML
2.

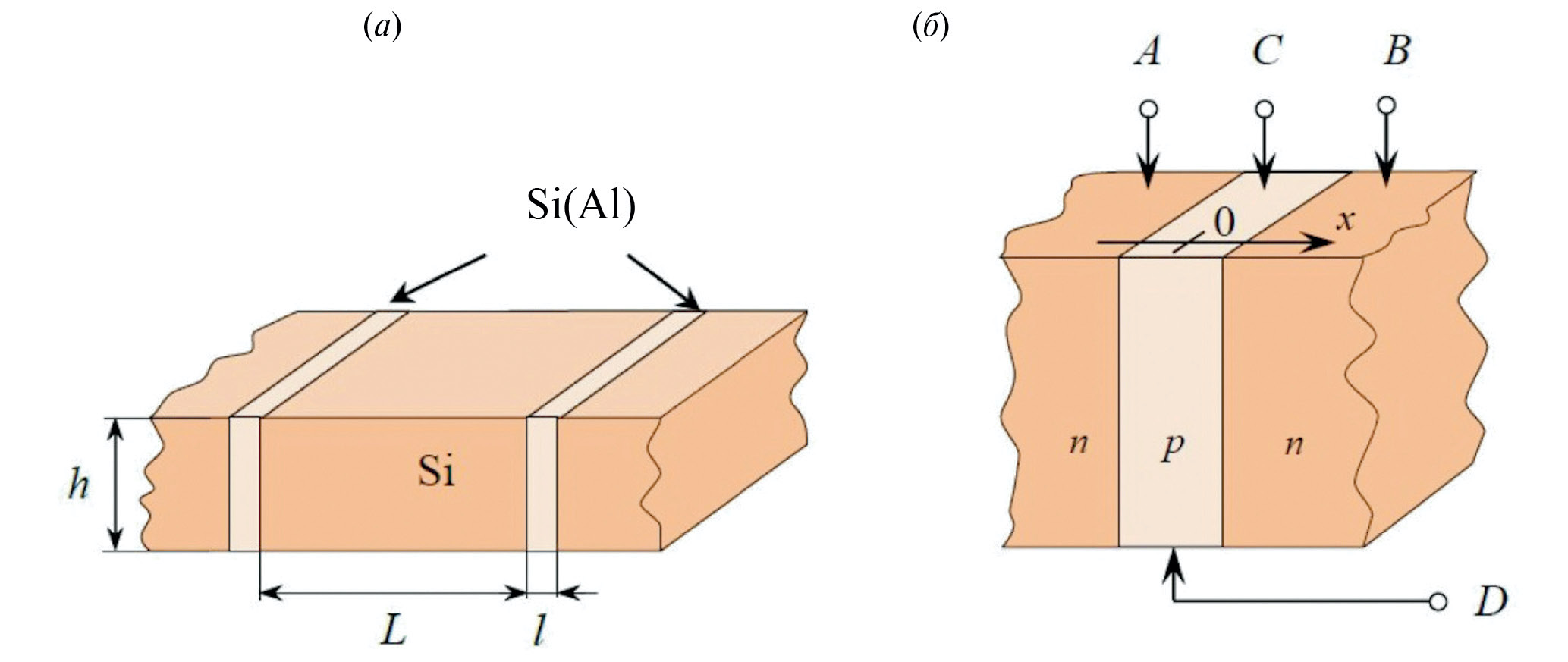

Fig. 1. Fragment of the diagram of the sample plate Si(111) with p-channels Si(Al) (a) and contact locations for measuring the electrical U-I-R parameters of the p-n junction (b), where h is the plate thickness; L is the distance between the channels; l is the channel width; x = 0 is the position of the channel center on the plate surface.
Download (142KB)
3.

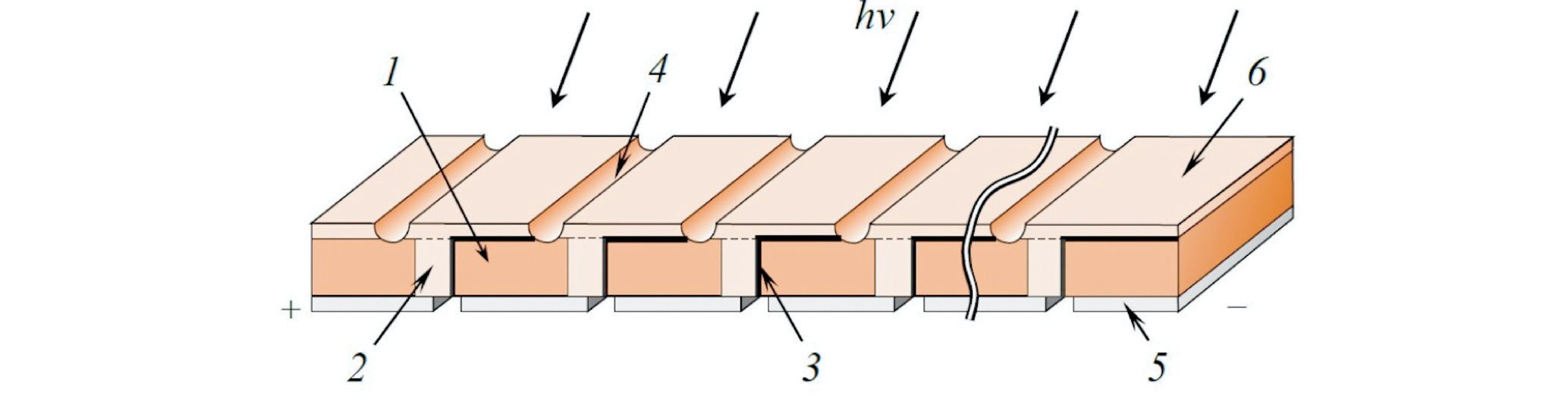

Fig. 2. Schematic diagram of a monolithic solar module consisting of several elements: 1 — initial silicon wafer; 2 — p-channel Si(Al) (ThM process); 3 — working p—n-junction; 4 — separating groove; 5 — Ag shunt; 6 — p-layer Si(B) (solid-state deep diffusion).
Download (101KB)
4.

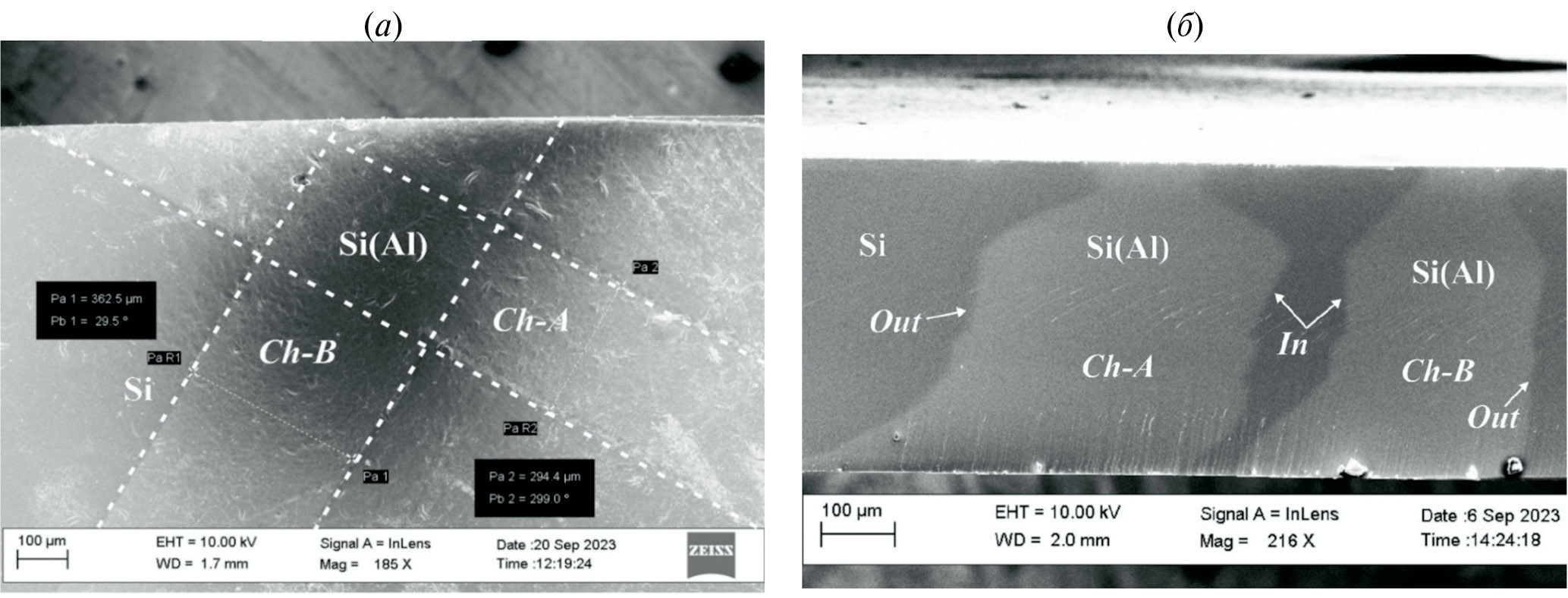

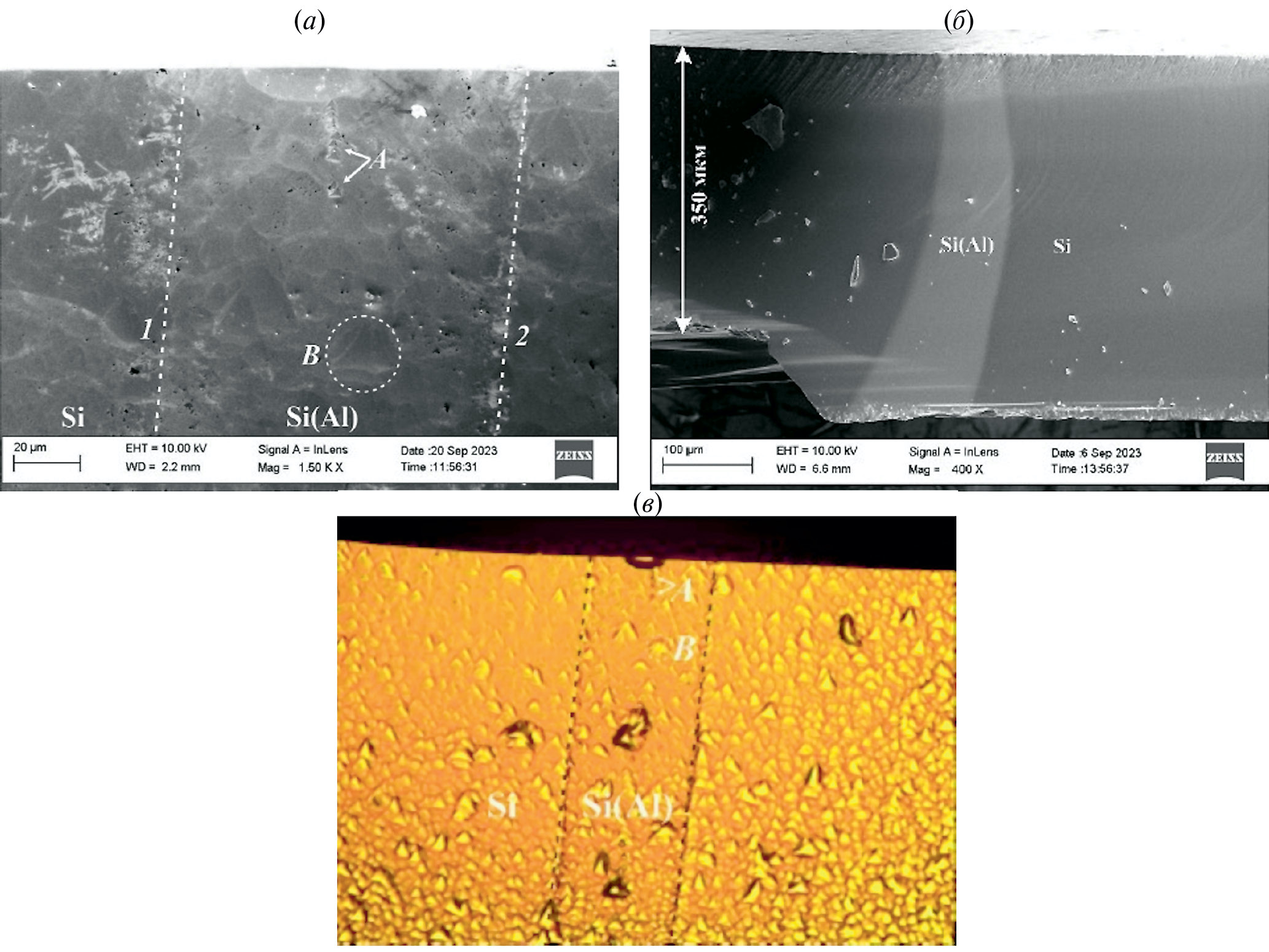

Fig. 3. Fragments of SEM images (a, b) and a micrograph (c) of the same section of the Si(111) surface (a, c) and a cleavage (b) of the thermomigration p-channel of Si(Al), oriented on the wafer surface along the 112 direction
Download (428KB)
5.
Fig. 4. Fragments of SEM images of the rear surface of Si(111) (a) and a cleavage (b) of two adjacent thermomigration channels of Si(Al), oriented along the |112| and |110| directions.
Download (247KB)
6.

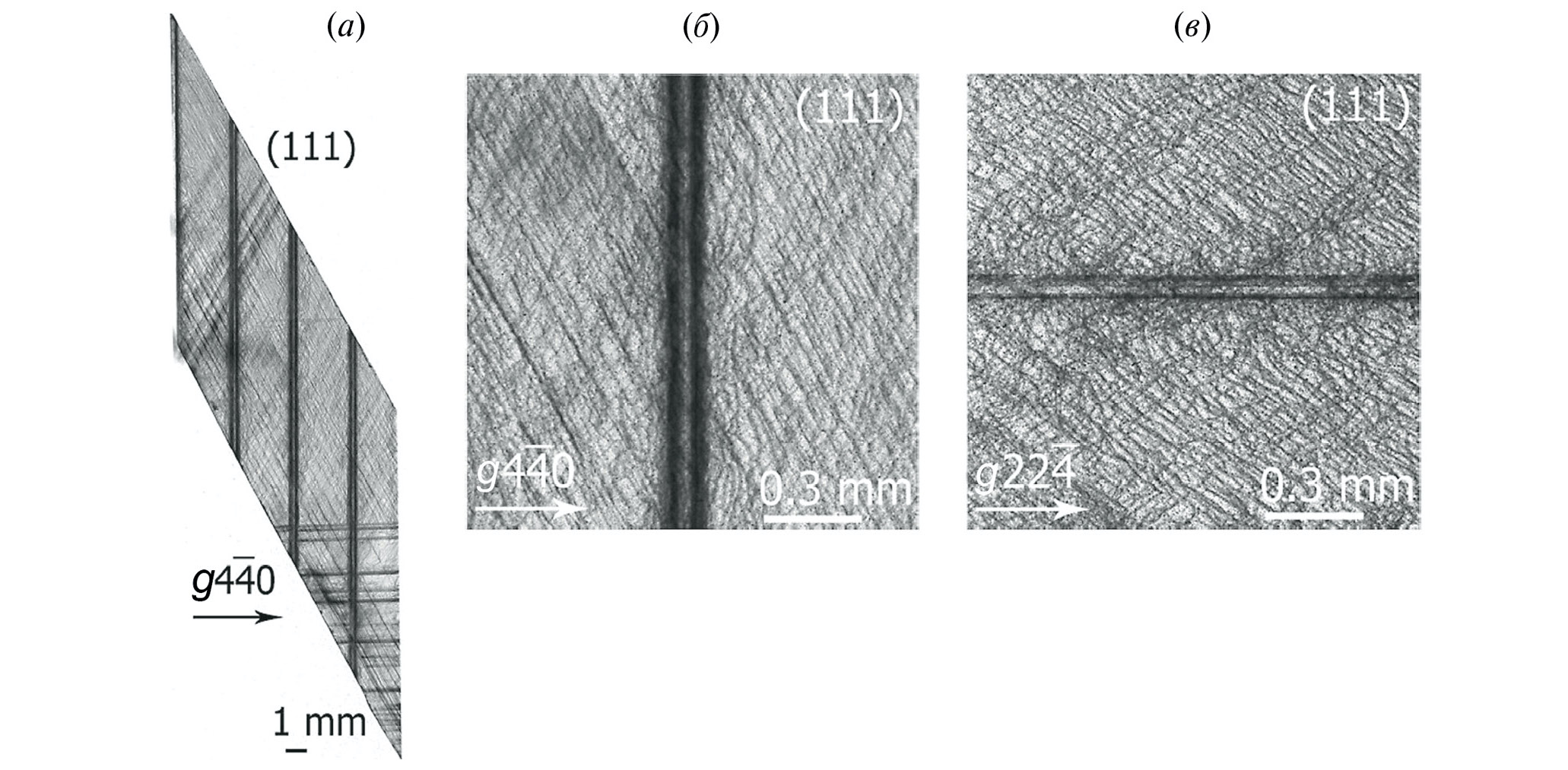

Fig. 5. Fragments of projection topograms with an array of through vertical Si(Al) ThM channels formed along the direction of the Si(111) plate. Reflections: g || (440) (a), (b) and g || (224) (c). AgKα₁ radiation.
Download (376KB)
7.

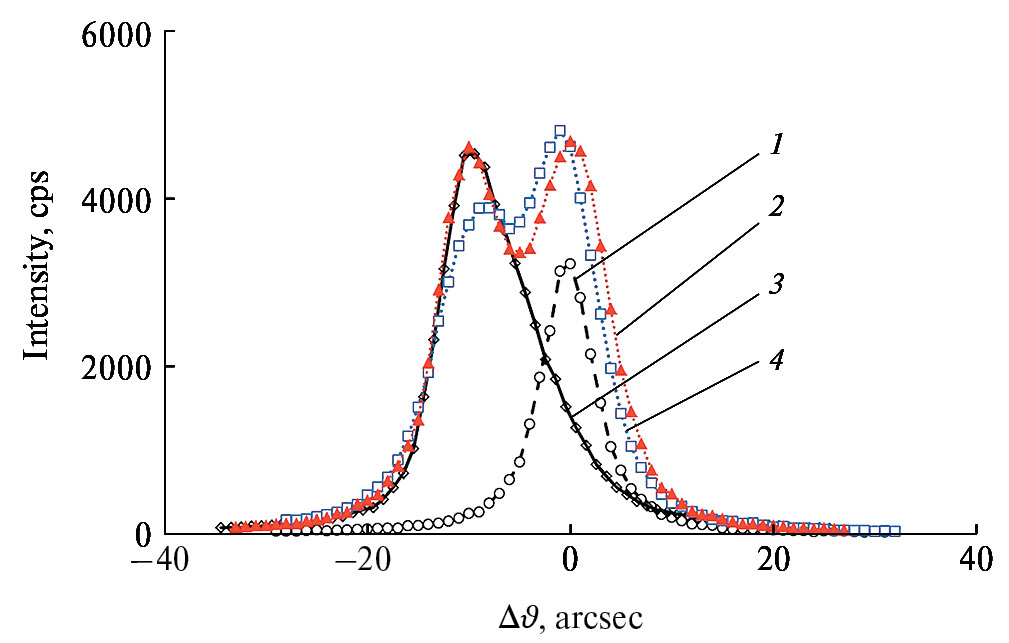

Fig. 6. Diffraction transmission curves of 220 reflection in the region of the ThM channel of Si(Al) in the matrix Si(111) depending on the position of the X-ray beam relative to the channel center: x = 350 (1), 50 (2), 0 (3), –50 μm (4). Radiation λ = 0.070931 nm.
Download (92KB)
8.

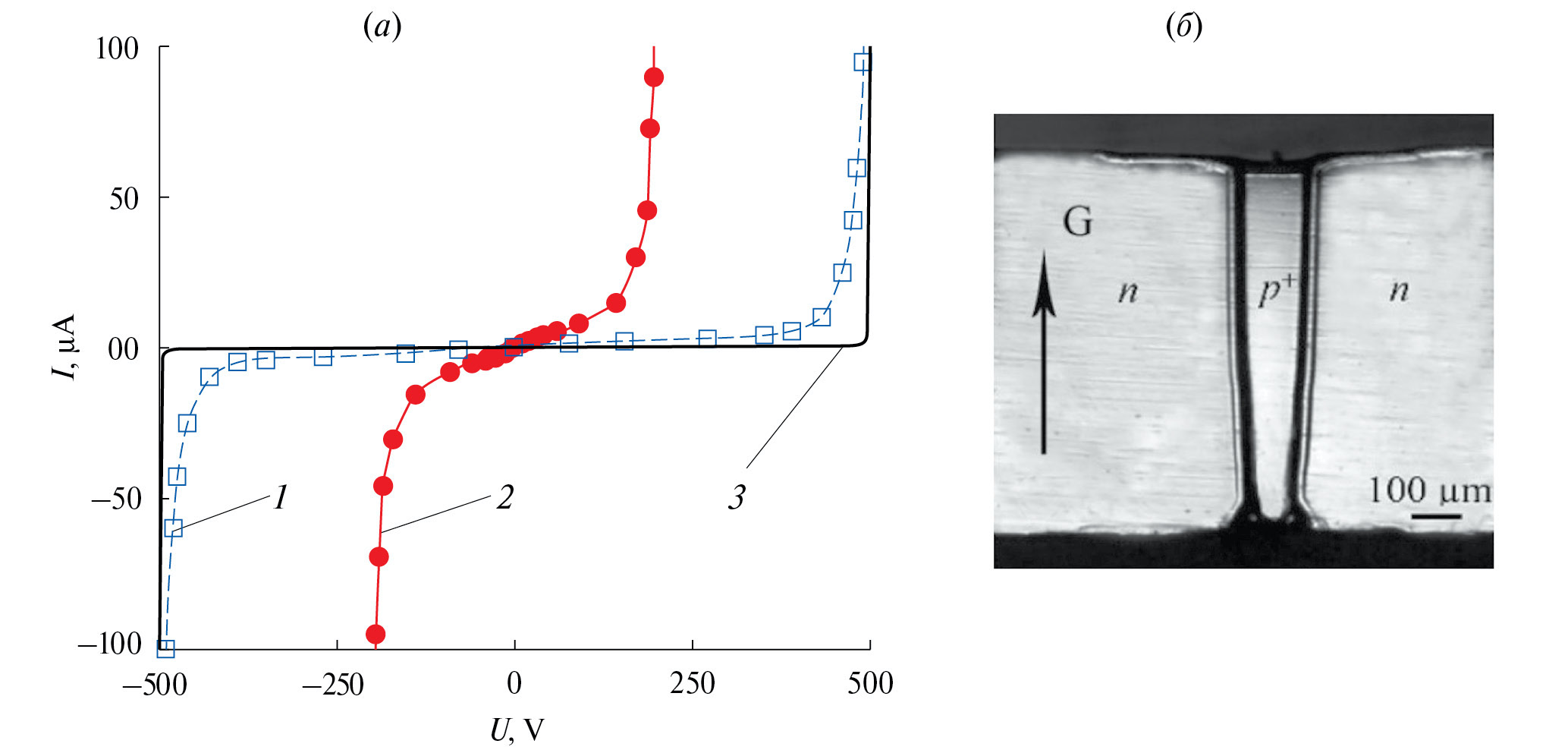

Fig. 7. Inverse characteristics I(U) (1, 2) for individual n-p-n structures (see Fig. 1, b) of the sample and the model curve I(U) (3) for an n-type silicon wafer (P, 10¹⁴ cm⁻³) (a); metallurgical micrograph of the SiAl channel (b); G is the direction of the temperature gradient during thermomigration.
Download (164KB)
9.
Fig. 8. I(U) characteristics of the AC (1) and BC (2) p-n junctions at the p-channel boundary (see Fig. 1, b). Solid lines (3), (4) represent the simulation of an abrupt p-n junction for n-type Si (ρ = 45 Ohm×cm with α = 1.54 and α = 1, respectively (a); temperature dependences of the resistance R on the width l of the Si(Al) channel for T = 1300 K (5), 1350 K (6), and 1400 K (7) (b).
Download (164KB)
10.
Fig. 9. J-U (a) and Pd-U (b) characteristics for monolithic MHSM solar modules with a radiation power of 1000 W/m². In both figures: 1 - reference module #A; 2 - defective module #B.
Download (101KB)
11.

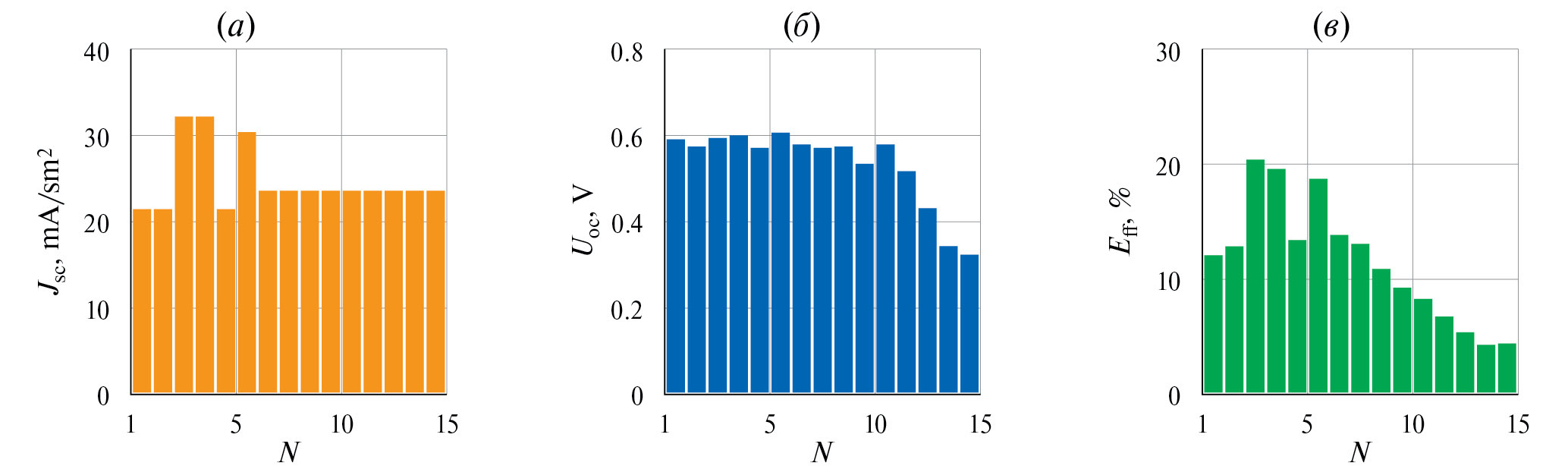

Fig. 10. Short-circuit density Jsc (a), open-circuit voltage Uoc (b) and efficiency Eff (c) for the i-th solar cell of module #B (radiant power 1000 W/m², Tsc = 25°C).
Download (162KB)
12.

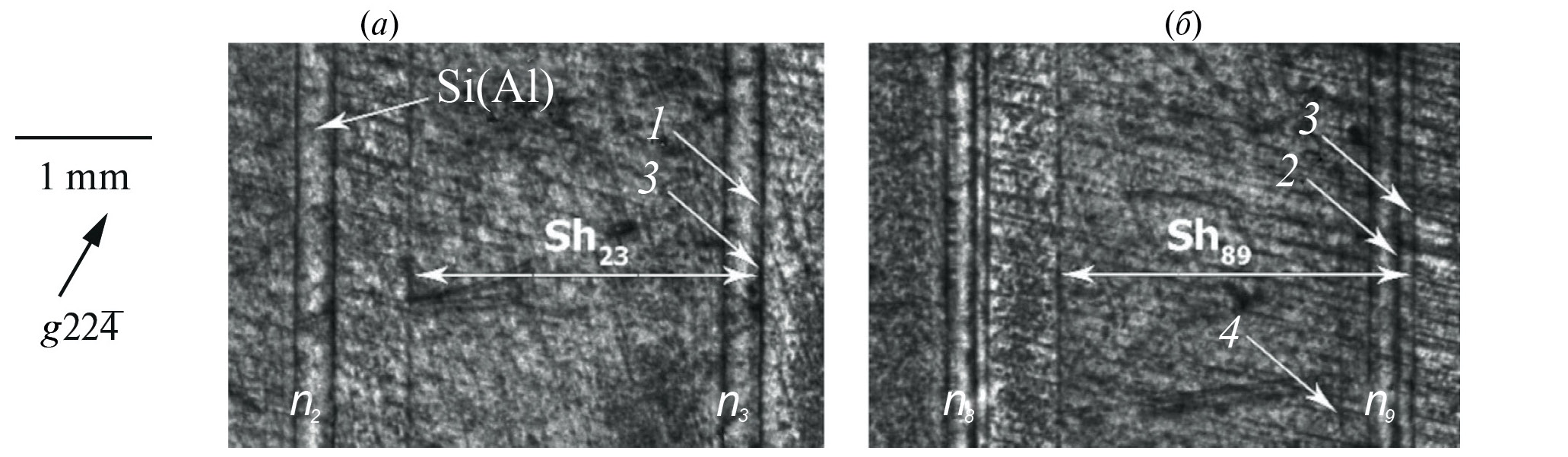

Fig. 11. Fragments of the X-ray projection of the Lang topogram of a 15-element MSCM module (see Fig. 2) with perfect (a) and defective (b) solar cells: Sh₂₃, Sh₈₉ — Ag shunts between channels on the back side of the module; 1, 2 — working p—n junction; 3 — boundary of Ag shunts; 4 — left boundary of the dividing groove; nᵢ — p-channel number. Reflection – 224, emission — МоКα₁.
