The new approach of a simulation low dose rate radiation effects in bipolar integrated circuits
- Authors: Chumakov A.I.1
-
Affiliations:
- National Research Nuclear University MEPhI (Moscow Engineering Physics Institute), Moscow JSC Specialized Electronic Systems
- Issue: Vol 53, No 2 (2024)
- Pages: 156-161
- Section: МОДЕЛИРОВАНИЕ
- URL: https://journal-vniispk.ru/0544-1269/article/view/262706
- DOI: https://doi.org/10.31857/S0544126924020047
- ID: 262706
Cite item
Open Access
Access granted
Abstract
The model is proposed to explain the effects of low dose rate under the radiation influence in bipolar structures, taking into account the effects of subthreshold displacement in high-doped silicon layers. The base current degradation of bipolar transistor is determined of surface and displacement radiation effects in the near-surface base area. The conditions for the enhanced low dose rate sensitivity (ELDRS) in bipolar structures are shown. The presented results of the analysis allow us to explain most of the observed experimental results.
Keywords
Full Text
About the authors
A. I. Chumakov
National Research Nuclear University MEPhI (Moscow Engineering Physics Institute), Moscow JSC Specialized Electronic Systems
Author for correspondence.
Email: aichum@spels.ru
Russian Federation, Moscow
References
- Nowlin R.N. et al. Hardness assurance and testing issues for bipolar/BiCMOS devices // IEEE Trans. Nucl. Sci. 1993. V. 40. No. 6. P. 1686–1691.
- Ionizing radiation effects in MOS devices and circuits / Ed. Ma T.-P., Dressendorfer P. V. New York: John Wiley&Sons, 1989. 608 p.
- Adell P.C., Boch J. Dose and Dose-Rate Effects in Micro-Electronics: Pushing the Limits to Extreme Conditions // 2014 IEEE NSREC. Short Course Notebook “Radiation Environments and Their Effects on Devices From Space to Ground”. Paris, France, 2014. P. II-1—II-102.
- Belyakov V.V. et al. Methods for the prediction of total-dose effects on modern integrated semiconductor devices in space: a review // Russian Microelectronics. 2003. V. 32. No. 1. P. 25–38.
- Pershenkov V.S., Skorobogatov P.K. Ulimov V.N. Dose effects in modern microelectronics products: Tutorial. NRNU MEPhI, 2011172 p. [in Russian].
- Pershenkov V.S. Dose effects in microelectronics products under irradiation // Radiation Hardness of electronic components / Ed. by. Chumakov A. I. NRNU MEPhI, 2015. 512 p. [in Russian]. P. 93–130.
- Pease R.L. et al. ELDRS in Bipolar Linear Circuits: A Review // IEEE Trans. Nucl. Sci. 2009. V. 56. No. 4. P. 1686–1691.
- Fleetwood D.M. et al. Physical mechanisms contributing to enhanced bipolar gain degradation at low dose rates // IEEE Trans. Nucl. Sci. 1994. V. 41. No. 6. P. 1871–1883.
- Fleetwood D.M. et al. Radiation effects at low electric fields in thermal, SIMOX, and bipolar-base oxides // IEEE Trans. Nucl. Sci. 1996. V. 43. No. 6. P. 2537–2546.
- Rashkeev S.N. et al. Physical model for enhanced interface-trap formation at low dose rates. // IEEE Trans. Nucl. Sci. 2002. V. 49. No. 6. P. 2650–2655.
- Pershenkov V.S. et al. Conversion model of enhanced low-dose-rate sensitivity for bipolar ICs // Russian Microelectronics. 2010. V. 39. No. 2. P. 91–99.
- Chumakov A.I. Space Radiation Effects in ICs. Moscow: Radio I Svyaz, 2004. 320 p. [in Russian].
- Vavilov V.S., Kiselev V.N., Mukashev B.F. Defects in silicon and on its surface. Moscow: Nauka, 1990. 216 p. (in Russian).
- Yemtsev V.V., Mashovets T.V. Impurities and point defects in semiconductors. Moscow: Radio I Svyaz, 1981. 248 p. [in Russian].
- Alyoshina L.A. The structure of amorphous materials and the nature of defects in them. Electronic Tutorial. PetrSU2016 [in Russian].
- Vavilov V.S., Kekelidze N. P., Smirnov L. S. The effect of radiation on semiconductors: Tutorial. Moscow: Nauka, 1988. 182 p. [in Russian].
- Sze. S.M. Physics of Semiconductor Devices. Second Edition. John Wiley and Sons Ltd, 1981.
- Pershenkov V.S. et al. Calculation of surface recombination current in bipolar microelectronic structures subjected to ionizing radiation // Russian Microelectronics. 2009. V. 38. No. 1. P. 17–29.
Supplementary files
Supplementary Files
Action
1.
JATS XML
2.

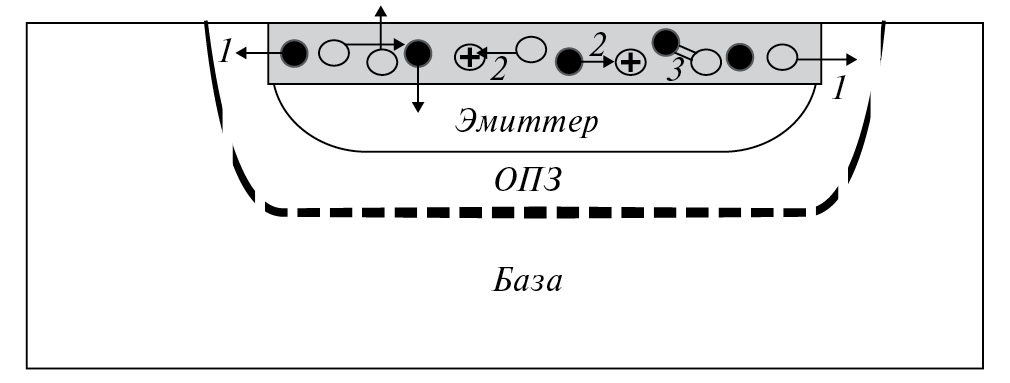

Fig. 1. Formation of subthreshold radiation defects in the highly doped region of the emitter: 1 – diffusion of primary RDs; 2 – creation of stable RDs; 3 – annihilation of primary RDs; ⚫ – interstitial site; ◯ – vacancy; ⊕ – nucleus of an atom of the crystal lattice.
Download (47KB)
3.

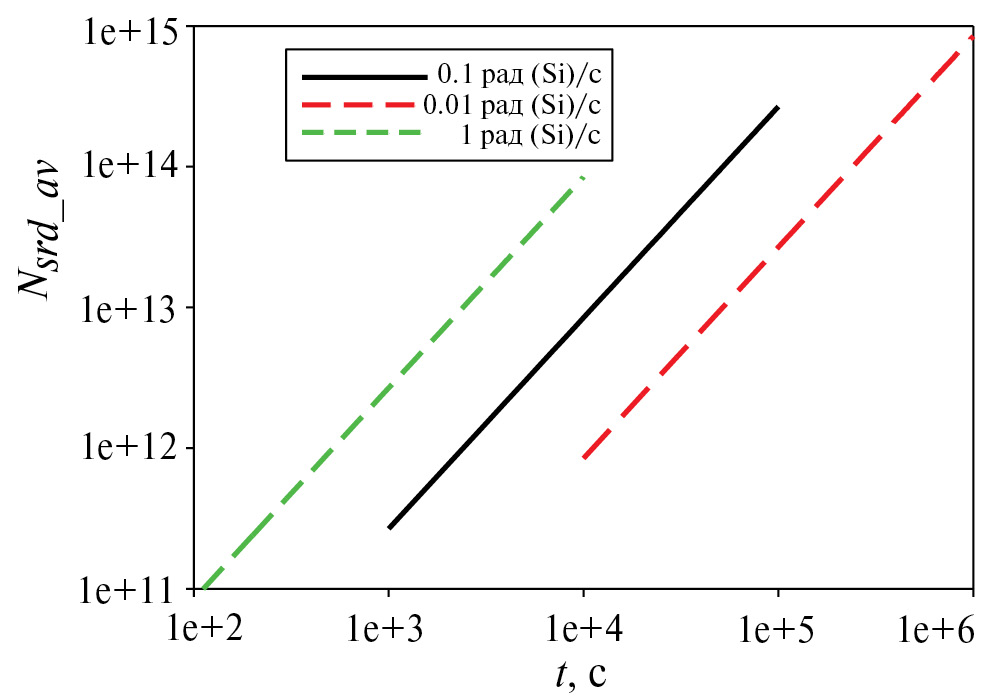

Fig. 2. Changes in the average concentration of primary RD at different irradiation intensities for a sensitive region with a width of 0.2 μm
Download (79KB)
4.

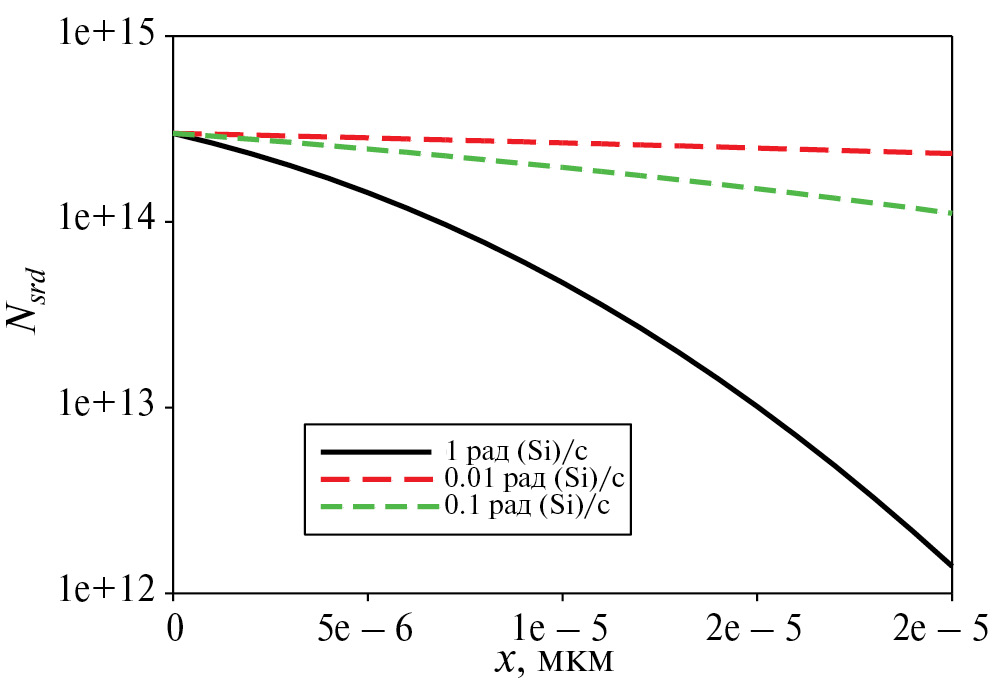

Fig. 3. Changes in the distribution profiles of primary RDs at the end of irradiation for different intensities.
Download (80KB)
5.

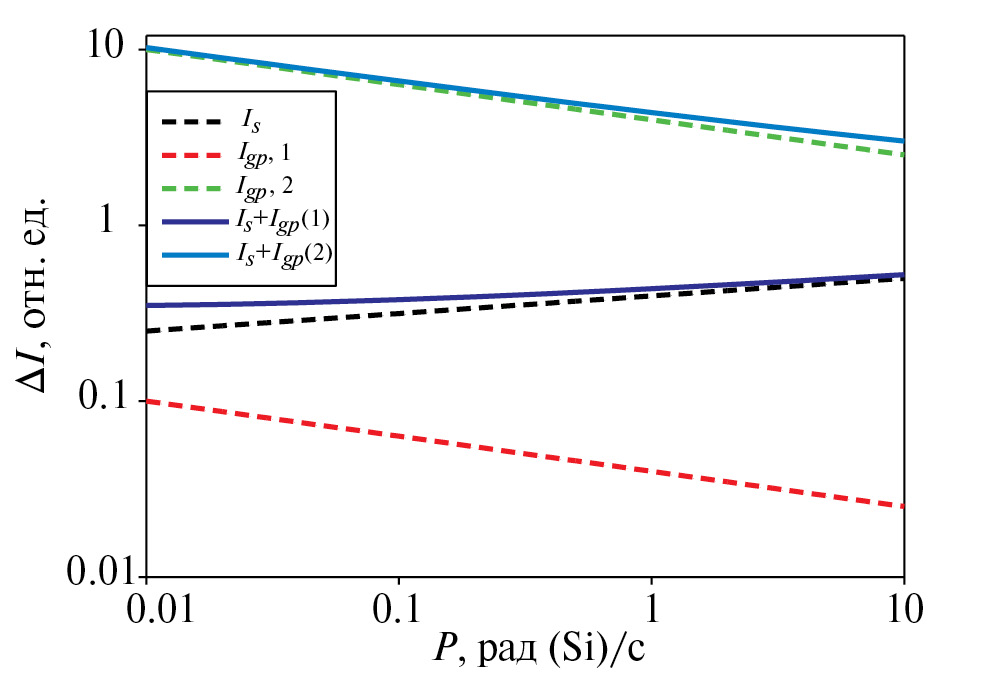

Fig. 4. Possible changes in the increment of the total base current with different ratios between its components.
Download (84KB)
6.

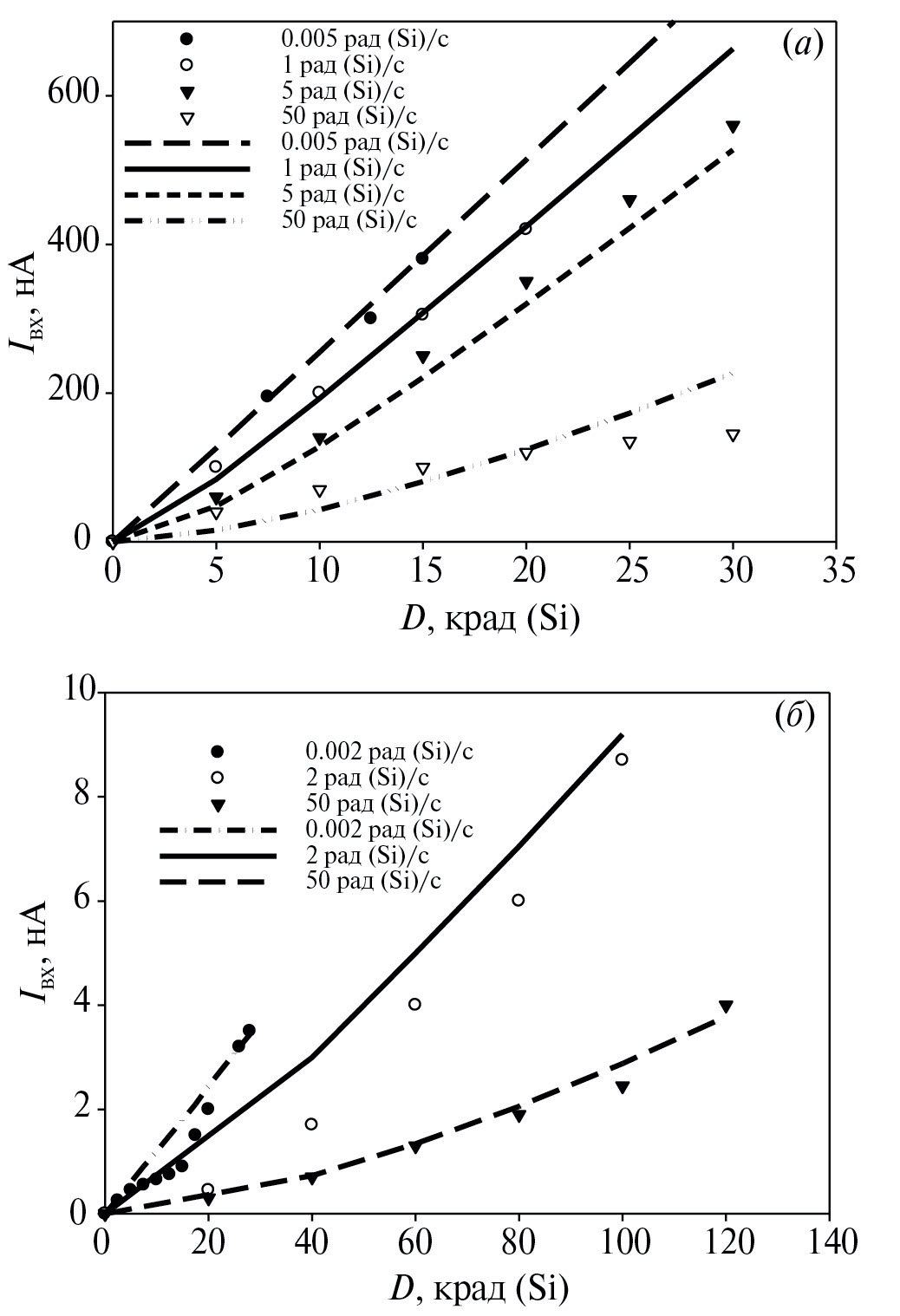

Fig. 5. Comparison of calculated and experimental values of changes in the base current during irradiation with different intensities: a – input current of the operational amplifier LM108A; b – input current of the comparator LM111, irradiation at T = 90°C [5].
Download (185KB)
